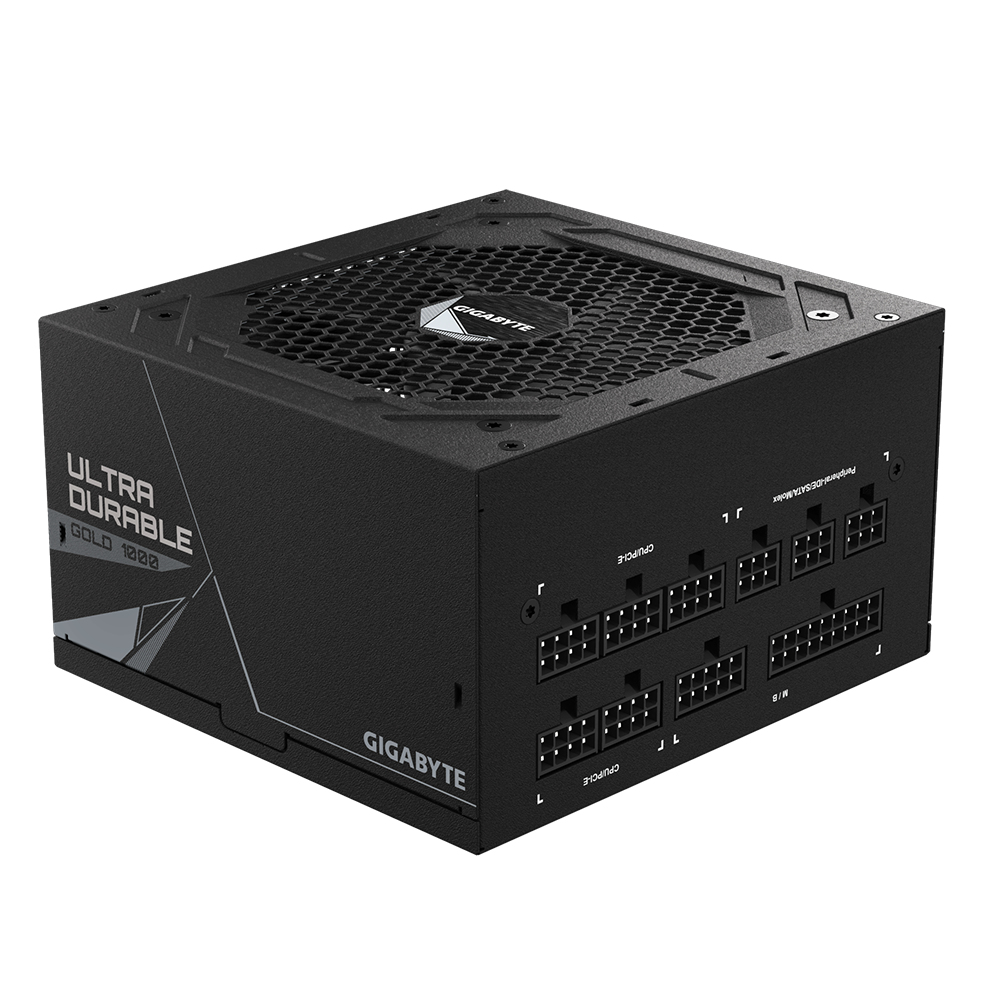

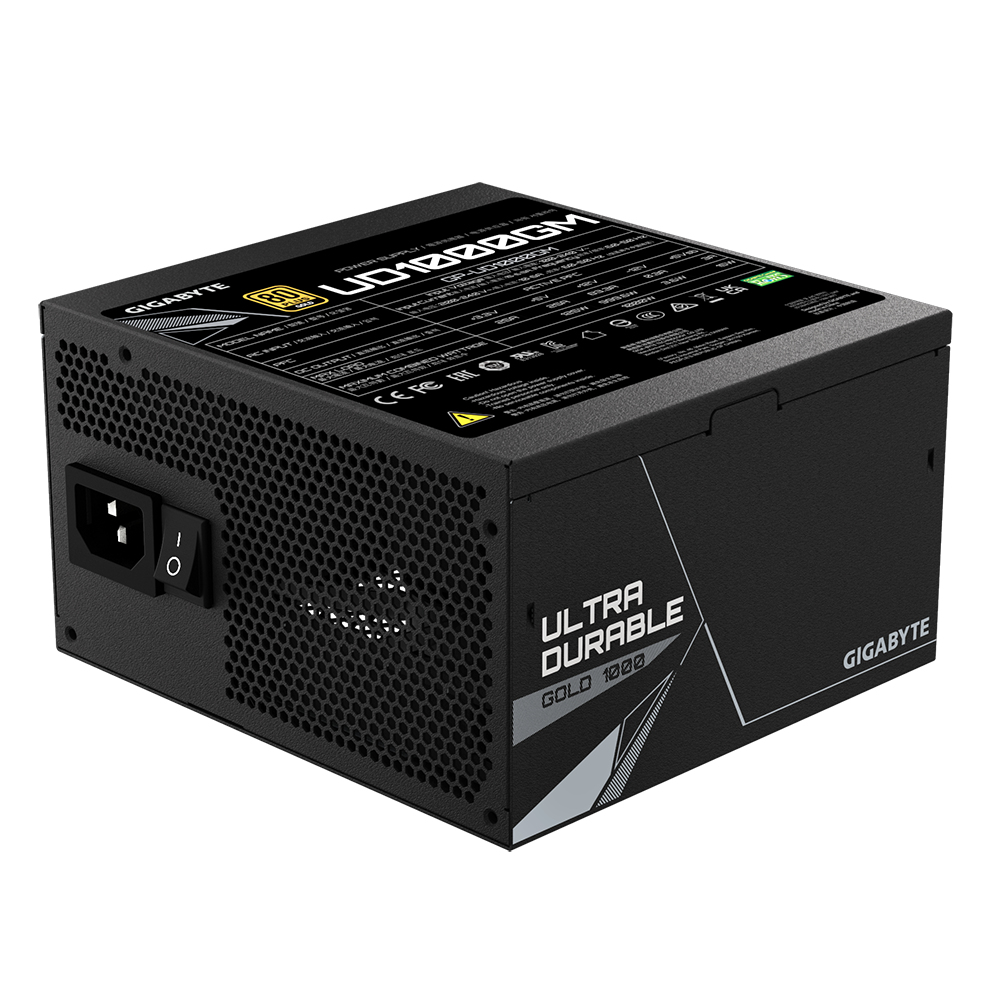

UD1000GM power supply unit
1000 W 20+4 pin ATX ATX Black
Model UD1000GMPart no. GP-UD1000GMEAN 4719331552411
45 specifications
- ColourBlack
- Total power1000 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width140 mm
Overview
- Colour
- Black
- Total power
- 1000 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 140 mm
- Brand
- GIGABYTE
- Category
- Power Supply Unit
- Model
- UD1000GM
- Part number
- GP-UD1000GM
- EAN / UPC
- 4719331552411, 4719331552428, 4719331552473
- Also known as
- GIGABYTE UD1000GM power supply unit 1000 W 20+4 pin ATX ATX Black
Specifications
45 specifications in 8 groups
Power

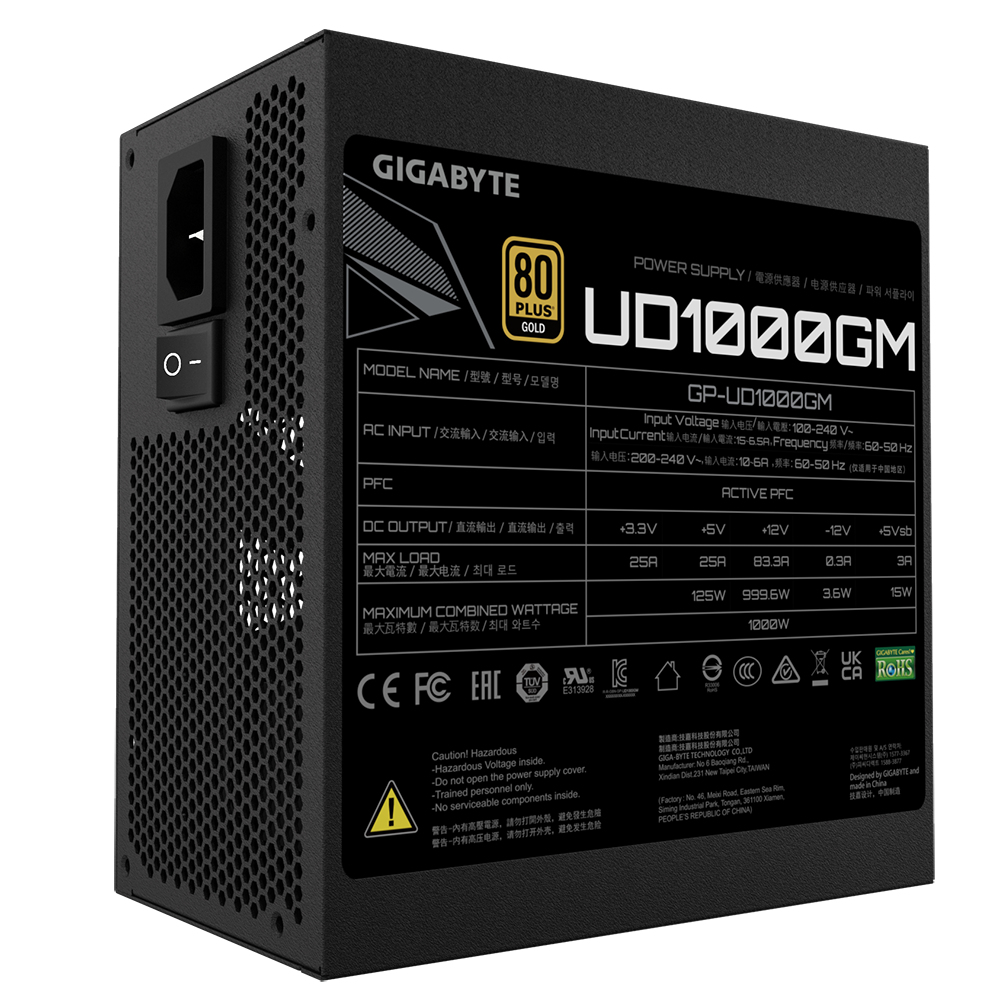

| Specification | Value |
|---|---|
| Total power | 1000 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 15 - 6.5 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 125 W |
| Combined power (+12V) | 999.6 W |
| Combined power (+5V) | 125 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V) | 83.3 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 90% |
| Hold time | 16 ms |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |
Ports & interfaces

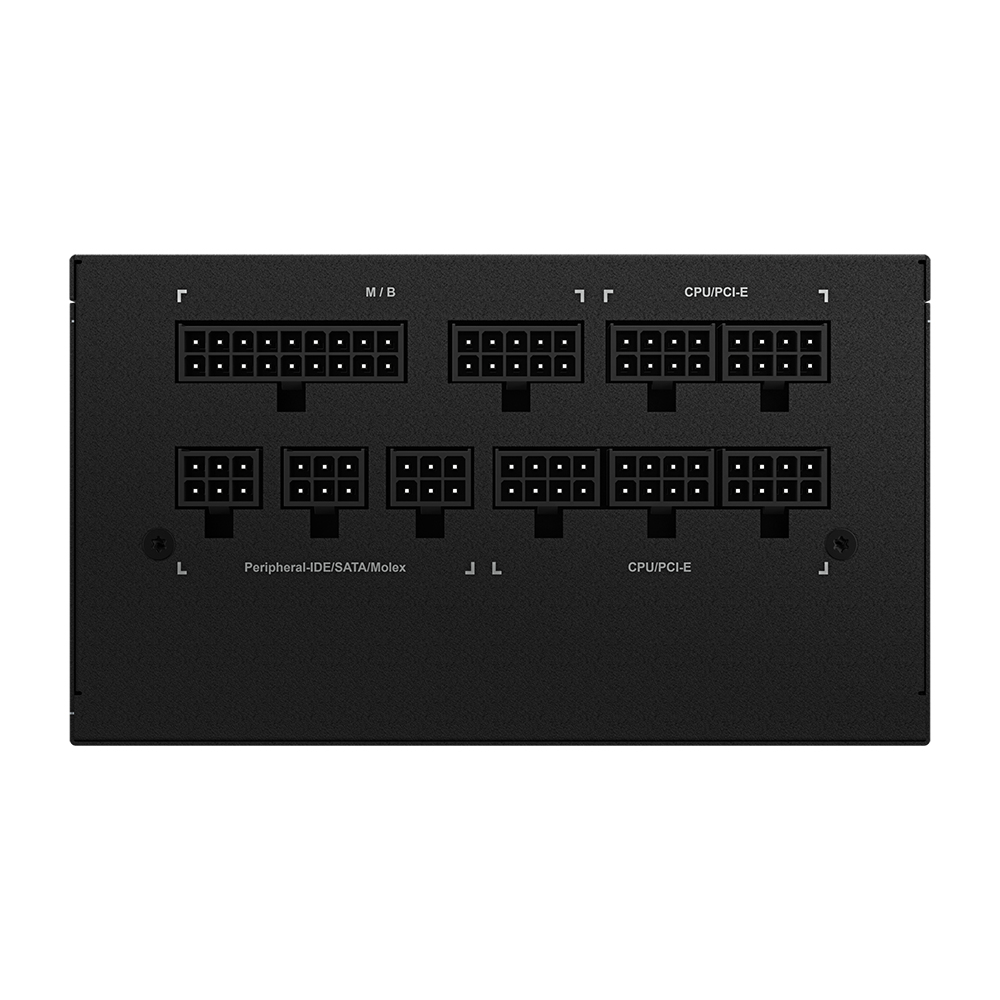

| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 61 cm |
| Number of SATA power connectors | 8 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 6 |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 60 cm |
| ATX power connector (20+4 pin) | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| Bearing technology | HDB |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |

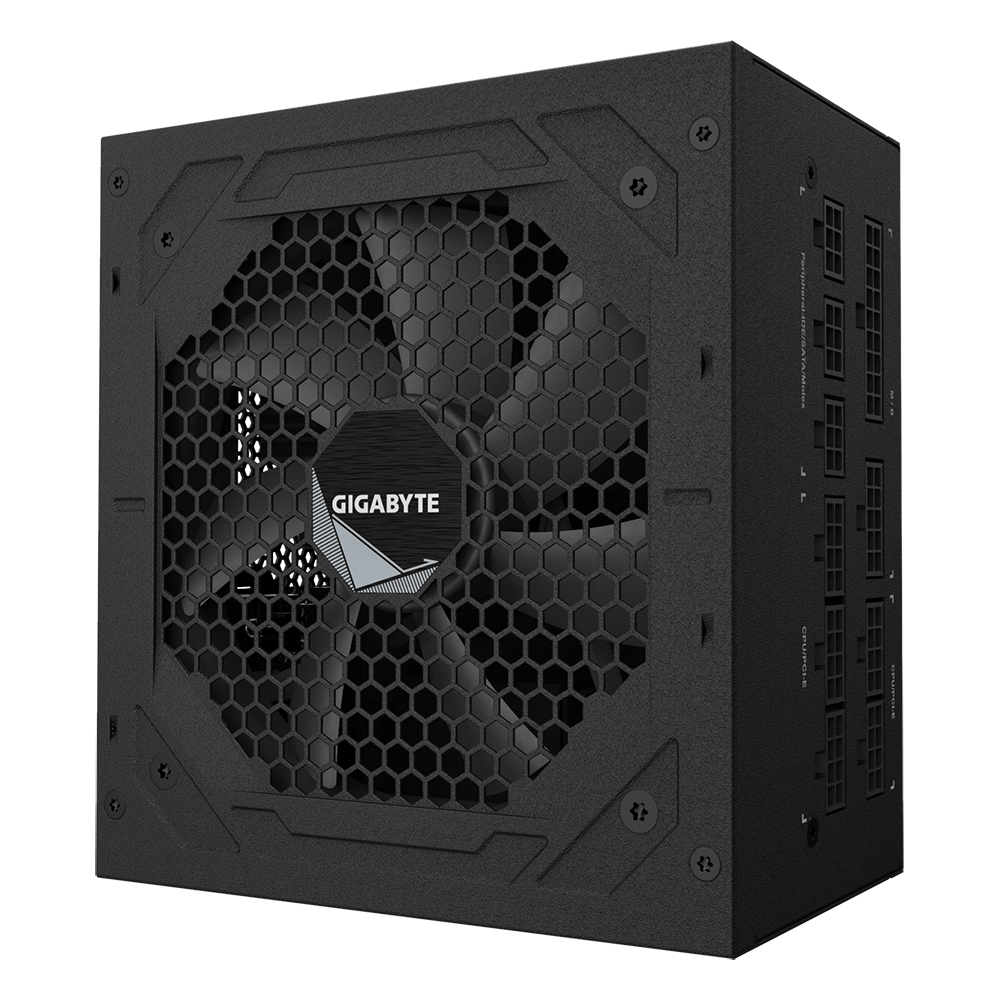

| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| On/off switch | Yes |
Packaging content
| Specification | Value |
|---|---|
| Cables included | CPU, PCIe, Peripheral (Molex), SATA |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 140 mm |
| Depth | 150 mm |
| Height | 86 mm |
Packaging data
| Specification | Value |
|---|---|

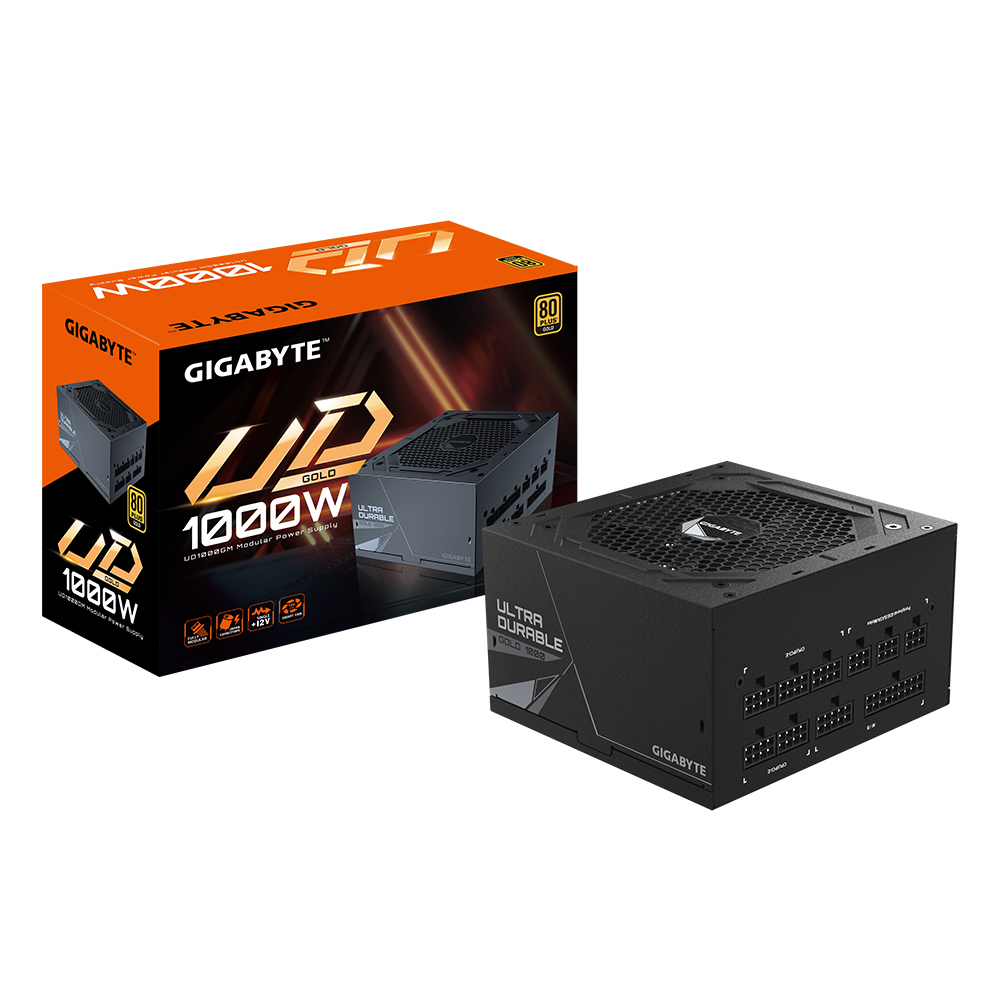

| Package type | Box |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
