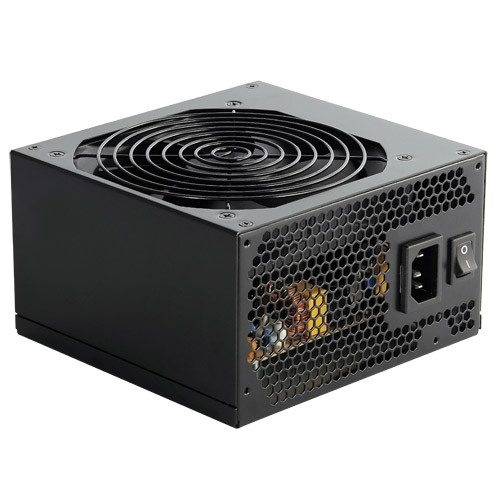

GIGABYTE Superb E720
Model Superb E720Part no. GE-E720A-C3EAN 4719331103811
37 specifications
- Weight2.2 kg
- ColourBlack
- Total power720 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width140 mm
Overview
- Weight
- 2.2 kg
- Colour
- Black
- Total power
- 720 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 140 mm
- Brand
- GIGABYTE
- Category
- Power Supply Unit
- Model
- Superb E720
- Part number
- GE-E720A-C3
- EAN / UPC
- 4719331103811
- Also known as
- GIGABYTE Superb E720 power supply unit 720 W 20+4 pin ATX ATX Black
Specifications
37 specifications in 8 groups
Power
| Specification | Value |
|---|---|
| Total power | 720 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 9.4 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 155 W |
| Combined power (+5V) | 155 W |
| Max output current (+3.3V) | 36 A |
| Max output current (+12V1) | 18 A |
| Max output current (+12V2) | 18 A |
| Max output current (+12V3) | 18 A |
| Max output current (+12V4) | 18 A |
| Max output current (+5V) | 30 A |
| Max output current (-12V) | 0.8 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over current, Over voltage, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 7 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| PCI Express power connectors (6+2 pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| Floppy drive power connector | 1 |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS |
| ATX version | 2.3 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Safety regulation & standards
| Specification | Value |
|---|---|
| Safety | cUL, CSA, TUV, CB, CE, FCC, BSMI, CCC, C-Tick |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 140 mm |
| Depth | 86 mm |
| Height | 150 mm |
| Weight | 2.2 kg |
Other features
| Specification | Value |
|---|---|
| Parallel processing technology support | 2-Way SLI |
