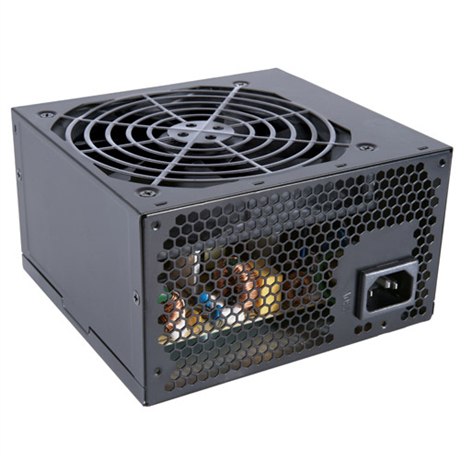

GIGABYTE Superb E470C4
Model Superb E470C4Part no. 24EPG-E40AC1-39R
33 specifications
- Weight1.3 kg
- ColourBlack
- Total power470 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- SafetyTUV, CB, CE, CCC, C-Tick
Overview
- Weight
- 1.3 kg
- Colour
- Black
- Total power
- 470 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Safety
- TUV, CB, CE, CCC, C-Tick
- Brand
- GIGABYTE
- Category
- Power Supply Unit
- Model
- Superb E470C4
- Part number
- 24EPG-E40AC1-39R
- Also known as
- GIGABYTE Superb E470C4 power supply unit 470 W 20+4 pin ATX ATX Black
Specifications
33 specifications in 8 groups
Power
| Specification | Value |
|---|---|
| Total power | 470 W |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50 Hz |
| Maximum input current (@110V) | +12V1,+12V2,+3.3V,+5V,+5Vsb,-12V |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Max output current (+12V1) | 32 A |
| Max output current (+12V2) | 32 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 2.5 A |
| Power protection features | Over current, Over voltage, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 4 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| PCI Express power connectors (6+2 pin) | 1 |
| CPU P4 connector (4-pin) | 1 |
| ATX power connector (20+4 pin) | Yes |
| Floppy drive power connector | 1 |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 2.3 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | SLI |
Safety regulation & standards
| Specification | Value |
|---|---|
| Safety | TUV, CB, CE, CCC, C-Tick |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 140 mm |
| Depth | 86 mm |
| Height | 150 mm |
| Weight | 1.3 kg |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
