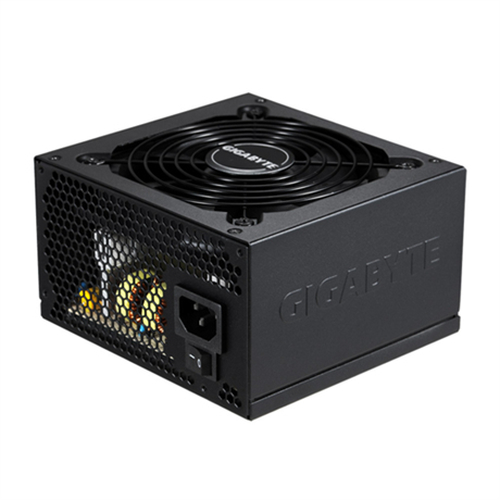

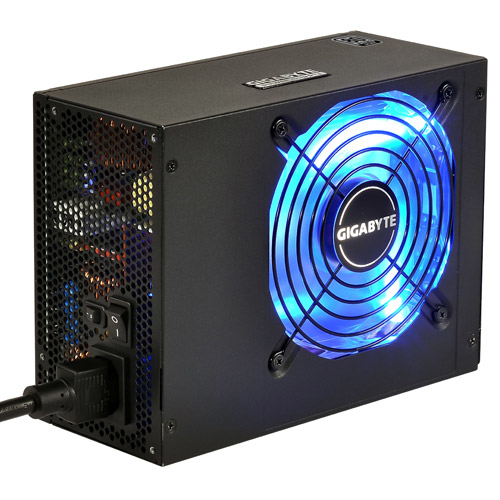

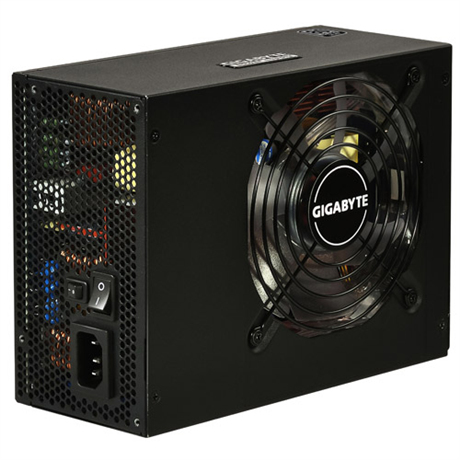

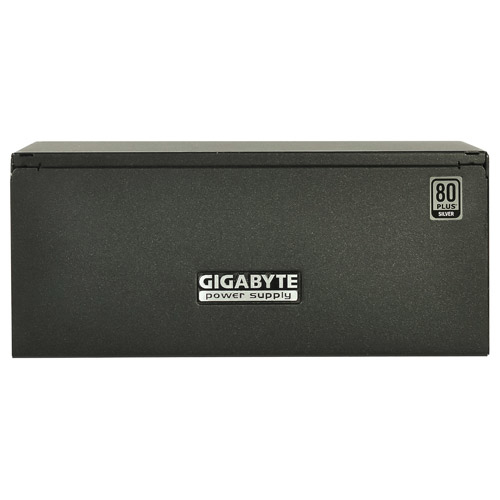

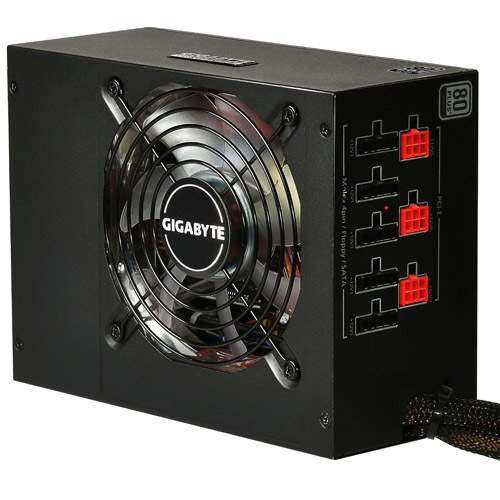

GIGABYTE Sumo power supply unit
900 W 24-pin ATX ATX Black
Model SumoPart no. 24EPG-H90AD1-19R
48 specifications
- Weight2.5 kg
- ColourBlack
- Total power900 W
- Motherboard power connector24-pin ATX
- PurposePC
- Width150 mm
Overview
- Weight
- 2.5 kg
- Colour
- Black
- Total power
- 900 W
- Motherboard power connector
- 24-pin ATX
- Purpose
- PC
- Width
- 150 mm
- Brand
- GIGABYTE
- Category
- Power Supply Unit
- Model
- Sumo
- Part numbers
- 24EPG-H90AD1-19R, 24EPG-HC0AD1-19R
- Also known as
- GIGABYTE Sumo power supply unit 900 W 24-pin ATX ATX Black
Specifications
48 specifications in 9 groups
Power
| Specification | Value |
|---|---|
| Total power | 900 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 3.6 A |
| Maximum input current (@110V) | +12V1,+12V2,+12V3,+12V4,+12V5,+3.3V,+5V,+5Vsb,-12V |
| Combined power (+3.3V) | 166 W |
| Combined power (+12V) | 864 W |
| Combined power (+5V) | 166 W |
| Combined power (-12V) | 6 W |
| Combined power (+5Vsb) | 20 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V) | 25 A |
| Max output current (+12V1) | 25 A |
| Max output current (+12V2) | 25 A |
| Max output current (+12V3) | 25 A |
| Max output current (+12V4) | 28 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 4 A |
| Efficiency | 88% |
| Power protection features | Over current, Short circuit |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 12 |
| Peripheral (Molex) power connectors (4-pin) | 5 |
| PCI Express power connectors (6+2 pin) | 1 |
| CPU power connector (4+4 pin) | Yes |
| Floppy drive power connector | 1 |
| CPU power connectors (8-pin) | 1 |
| Cabling type | Semi-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Silver |
| ATX version | 2.3 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Illumination | Yes |
| LED indicators | Yes |
| On/off switch | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Safety regulation & standards
| Specification | Value |
|---|---|
| Safety | CE, CB, TUV, cUL, FCC, BSMI, C-Tick |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 200 mm |
| Height | 86 mm |
| Weight | 2.5 kg |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
Other features
| Specification | Value |
|---|---|
| Illumination colour | Blue |
What people say
Reviews & ratings
GIGABYTE Sumo power supply unit
No reviews yet
Be the first to tell others how GIGABYTE Sumo power supply unit works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE Sumo power supply unit
All power supply unit comparisons- GIGABYTE Sumo power supply unit vsGIGABYTE Greenmax PlusCompare specs
- GIGABYTE Sumo power supply unit vsGIGABYTE Pluse power supply unitCompare specs
- GIGABYTE Sumo power supply unit vsGIGABYTE Superb E470C4Compare specs
- GIGABYTE Sumo power supply unit vsGIGABYTE GreenMax power supply unitCompare specs
- GIGABYTE Sumo power supply unit vsbe quiet! System Power 7Compare specs
- GIGABYTE Sumo power supply unit vsZalman ZM700-SV power supply unitCompare specs
- GIGABYTE Sumo power supply unit vsAerocool GT500S power supply unitCompare specs

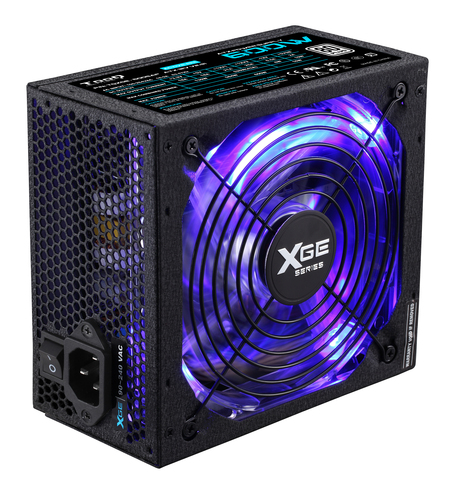

- GIGABYTE Sumo power supply unit vsTooQ TQXGE-600SAP power supply unitCompare specs
