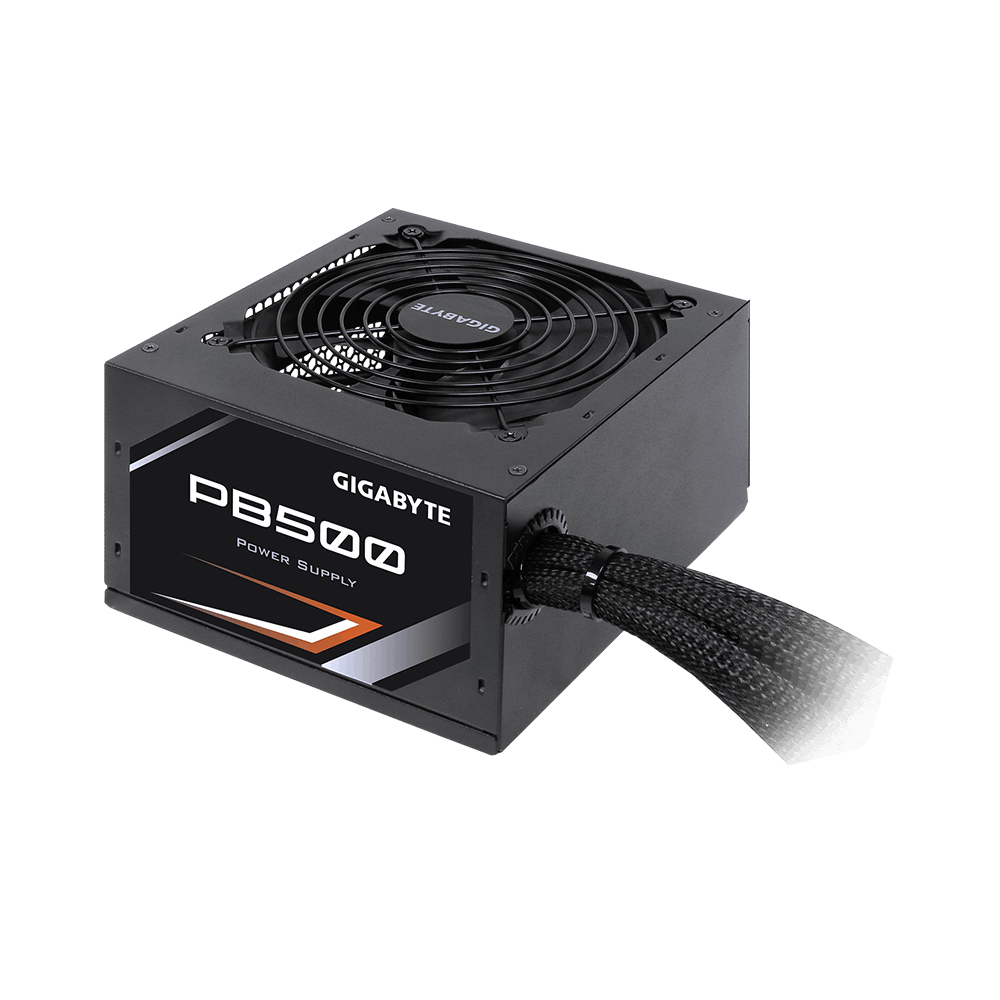

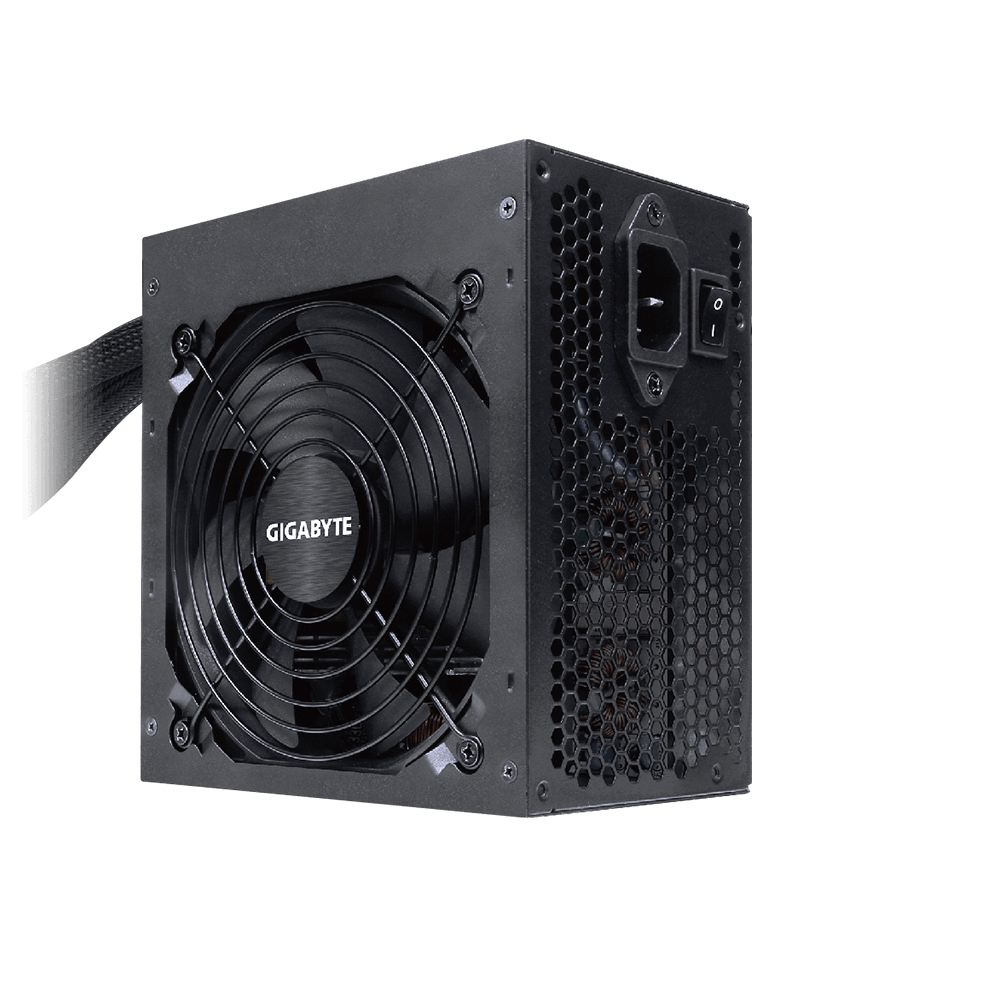

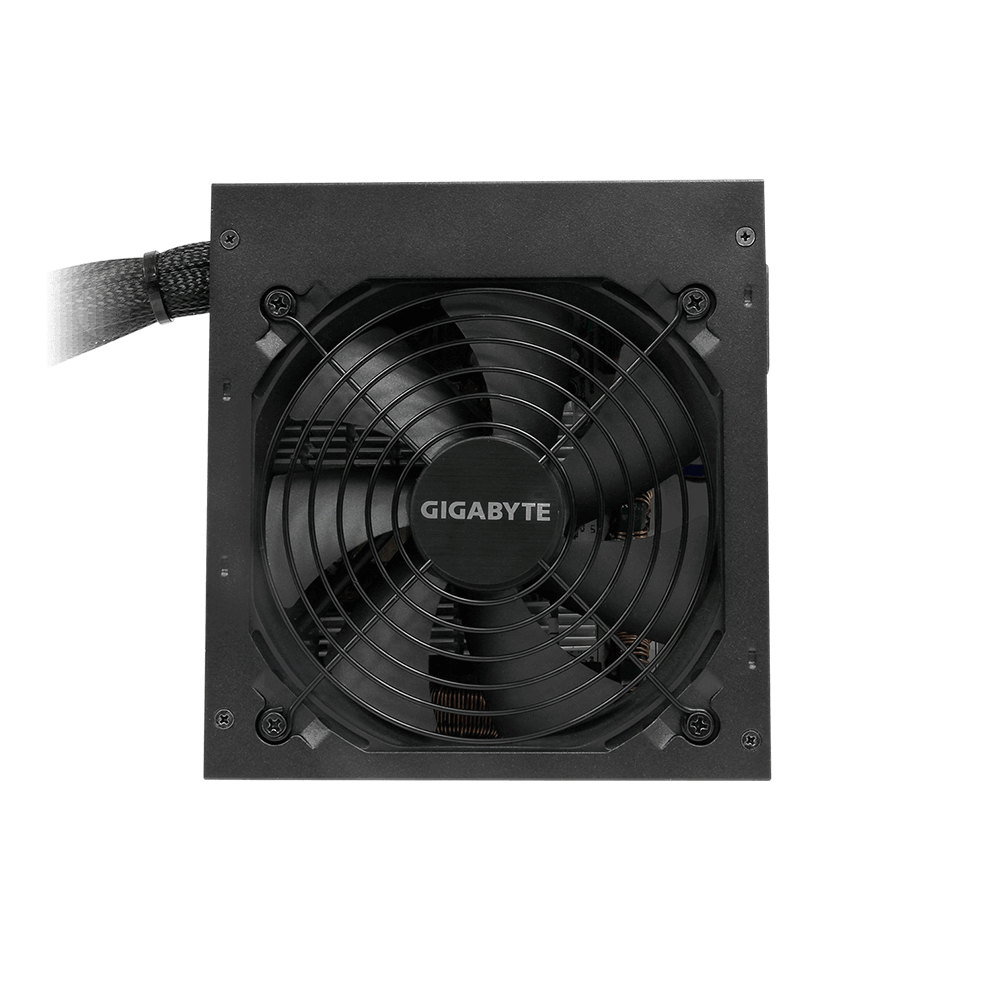

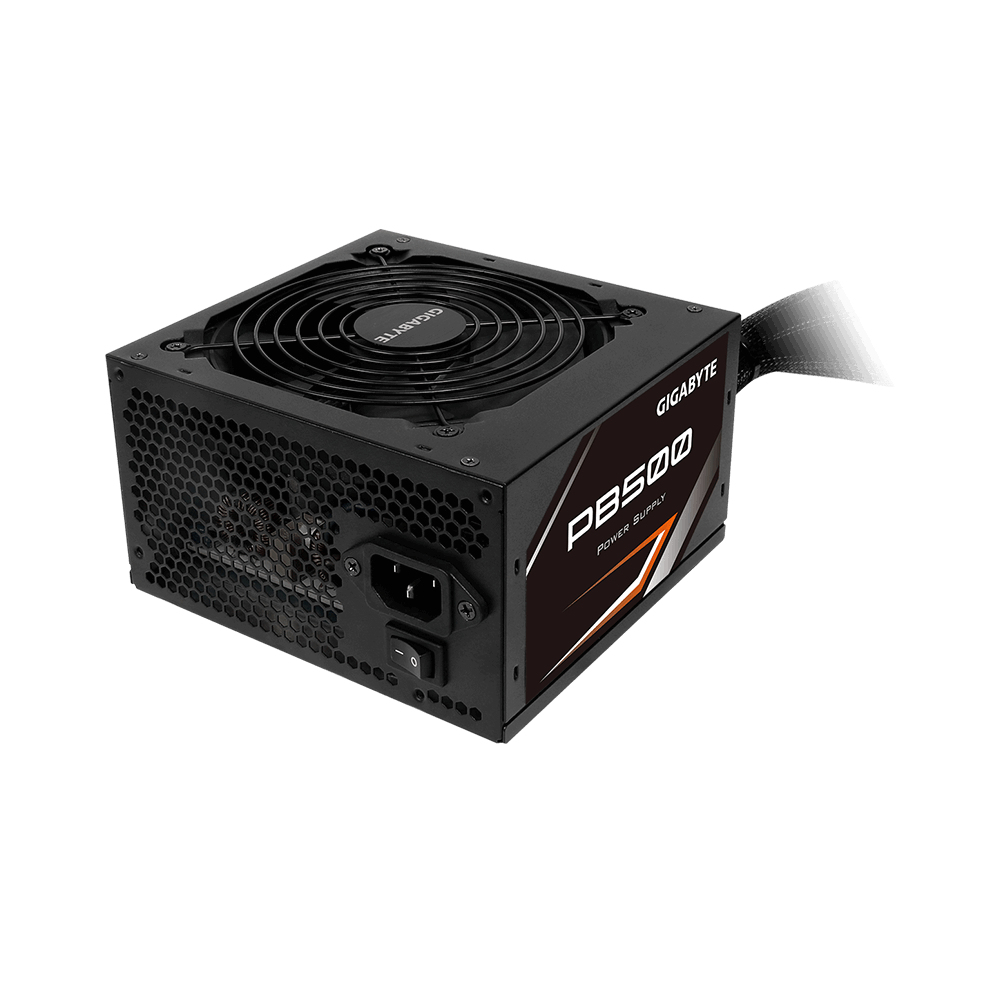

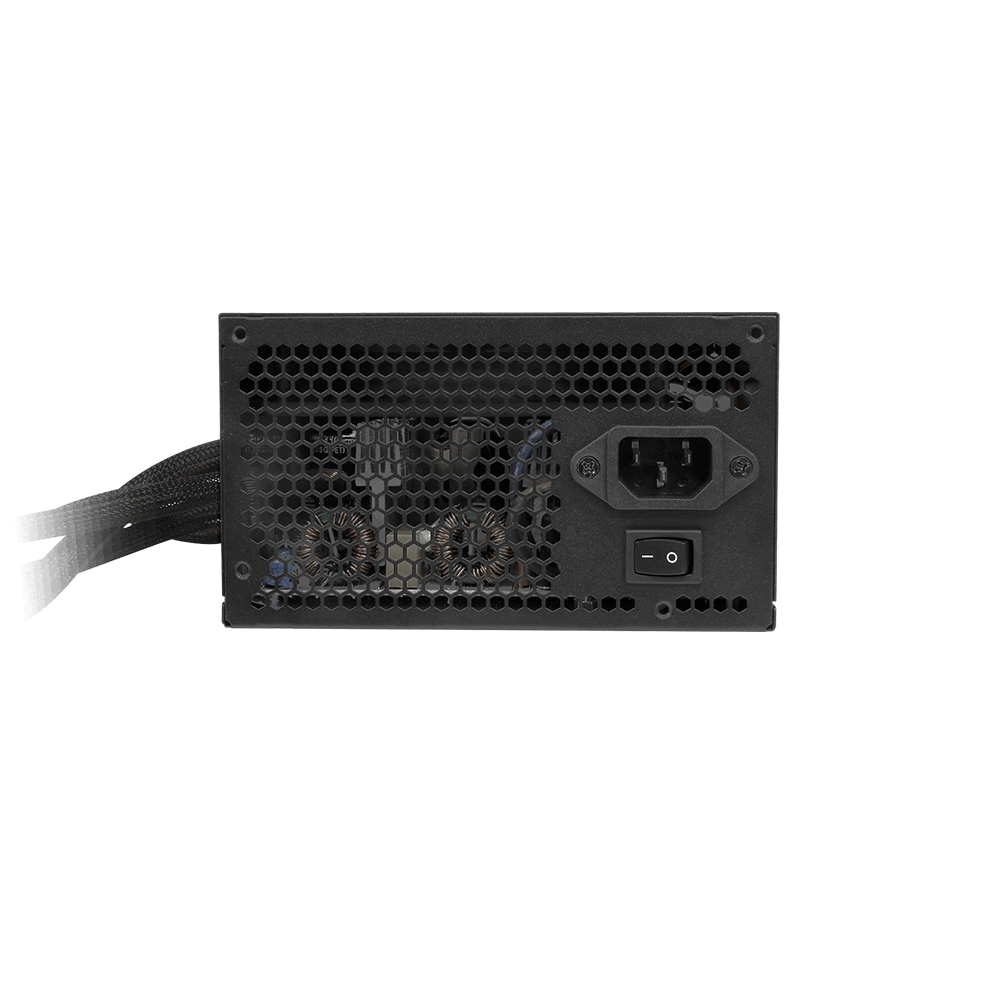

GIGABYTE PB500 power supply unit
500 W 20+4 pin ATX ATX Black
Model PB500Part no. GP-PB500-UKEAN 4719331549749
43 specifications
- ColourBlack
- Total power500 W
- Motherboard power connector20+4 pin ATX
- PurposePC
Overview
- Colour
- Black
- Total power
- 500 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Brand
- GIGABYTE
- Category
- Power Supply Unit
- Model
- PB500
- Part numbers
- GP-PB500-UK, PB500
- EAN / UPC
- 4719331549749, 813567024774, 4719331549688, 4719331549695 +3 more
- Also known as
- GIGABYTE PB500 power supply unit 500 W 20+4 pin ATX ATX Black
Specifications
43 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 500 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 8 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 103 W |
| Combined power (+12V) | 456 W |
| Combined power (+5V) | 103 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 21 A |
| Max output current (+12V) | 38 A |
| Max output current (+5V) | 15 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 86% |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 4 |
| SATA power cable length | 150,500 mm |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| Peripheral (Molex) power cable length | 150,500 mm |
| PCI Express power connectors (6+2 pin) | 2 |
| PCI Express power cable length | 50 cm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 60 cm |
| ATX power connector (20+4 pin) | Yes |
| Floppy disk drive connector | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Bronze |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| On/off switch | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | CE/CCC/BSMI/KCC/EAC/UL/TUV/RCM/FCC |
Packaging data
| Specification | Value |
|---|---|
| Manual | Yes |
What people say
Reviews & ratings
GIGABYTE PB500 power supply unit
No reviews yet
Be the first to tell others how GIGABYTE PB500 power supply unit works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE PB500 power supply unit
All power supply unit comparisons- GIGABYTE PB500 power supply unit vsGIGABYTE PW400 power supply unitCompare specs
- GIGABYTE PB500 power supply unit vsGIGABYTE P650B power supply unitCompare specs
- GIGABYTE PB500 power supply unit vsGIGABYTE XP-1200M power supply unitCompare specs
- GIGABYTE PB500 power supply unit vsGIGABYTE GB-G750H power supply unitCompare specs

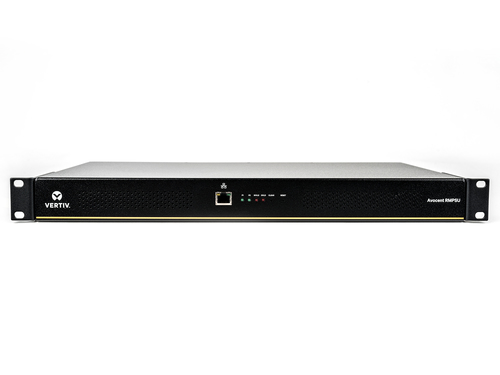

- GIGABYTE PB500 power supply unit vsVertiv Avocent RMPSU-8-400Compare specs

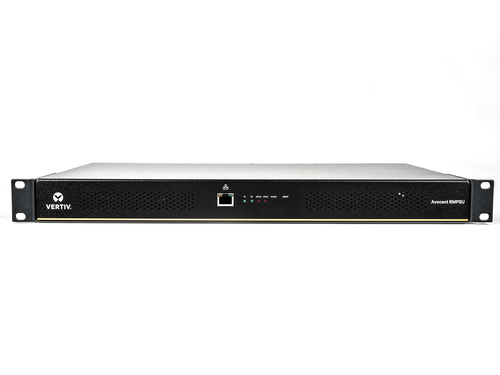

- GIGABYTE PB500 power supply unit vsVertiv Avocent RMPSU-16-400Compare specs
- GIGABYTE PB500 power supply unit vsBuffalo OP-PU-10R2U power supply unitCompare specs

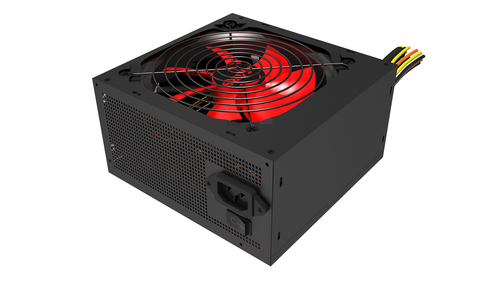

- GIGABYTE PB500 power supply unit vsMars Gaming MPII550 power supply unitCompare specs
