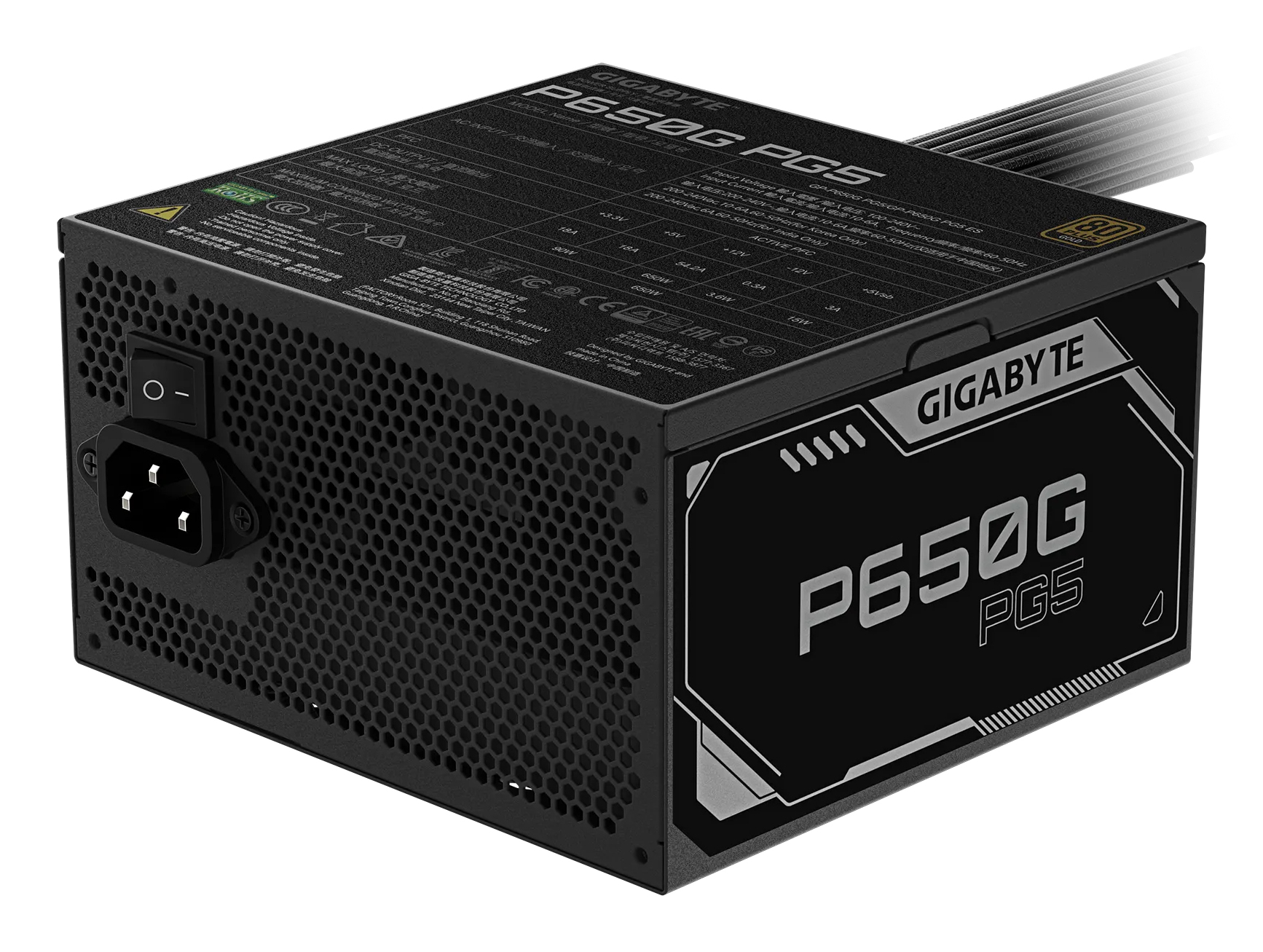

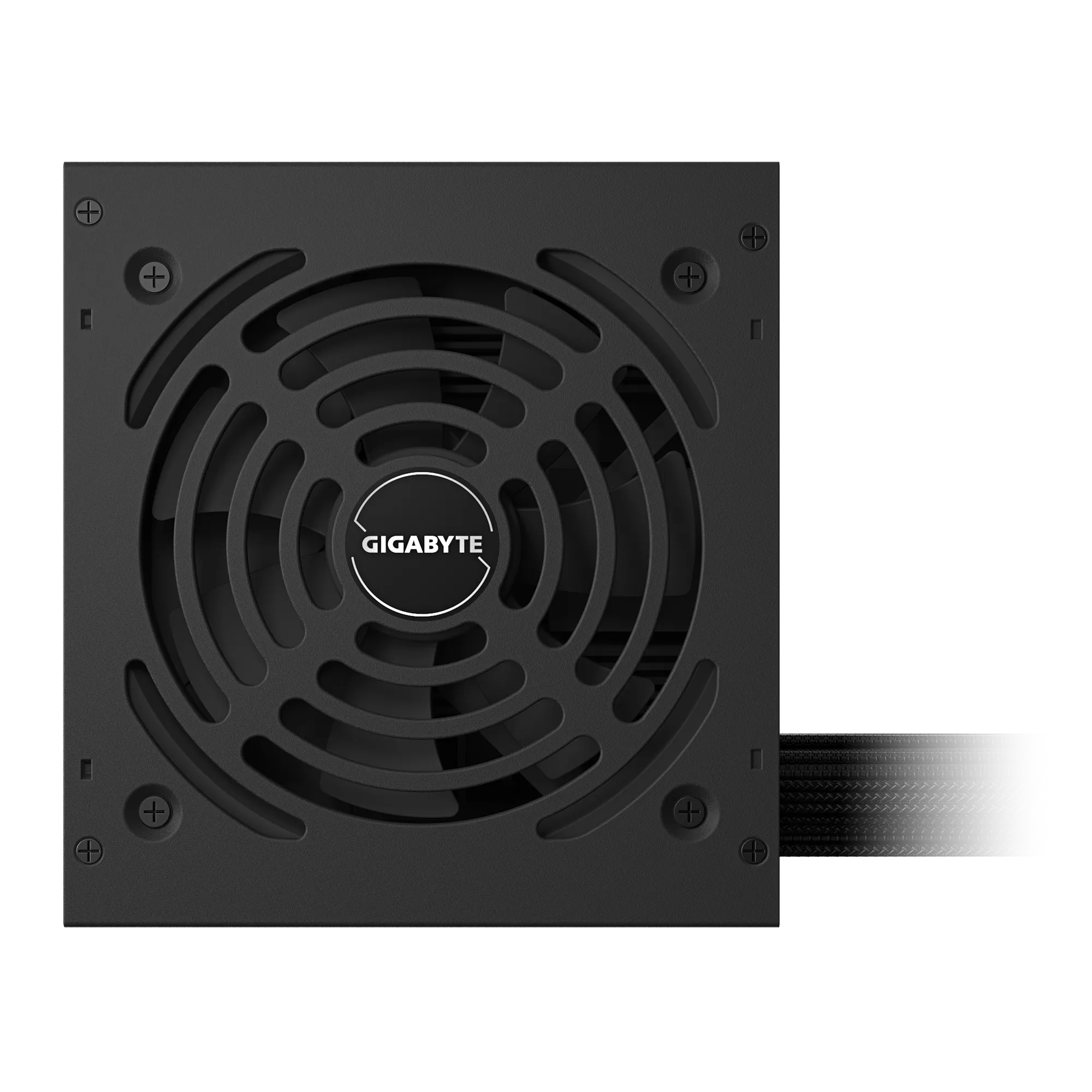

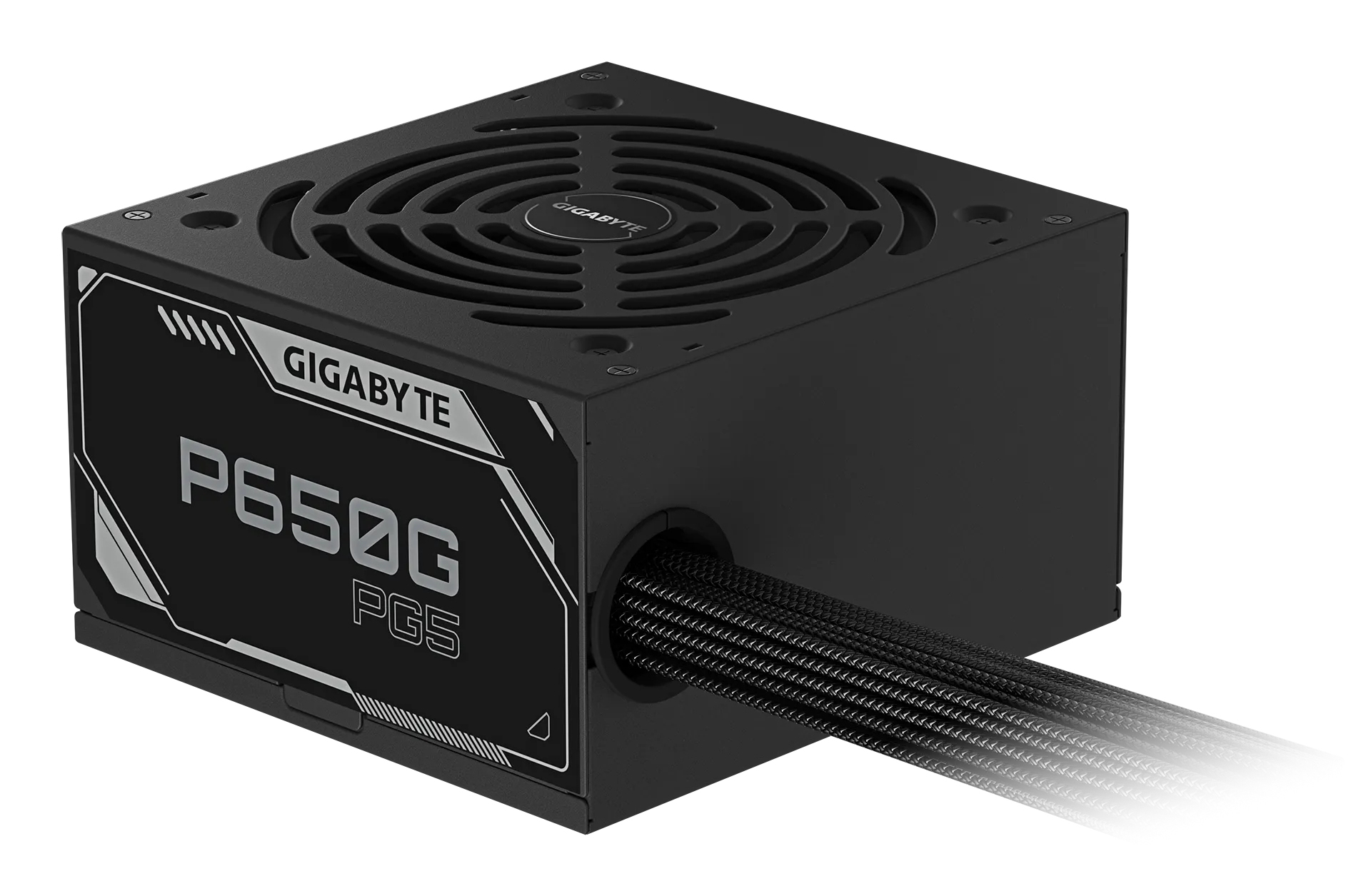

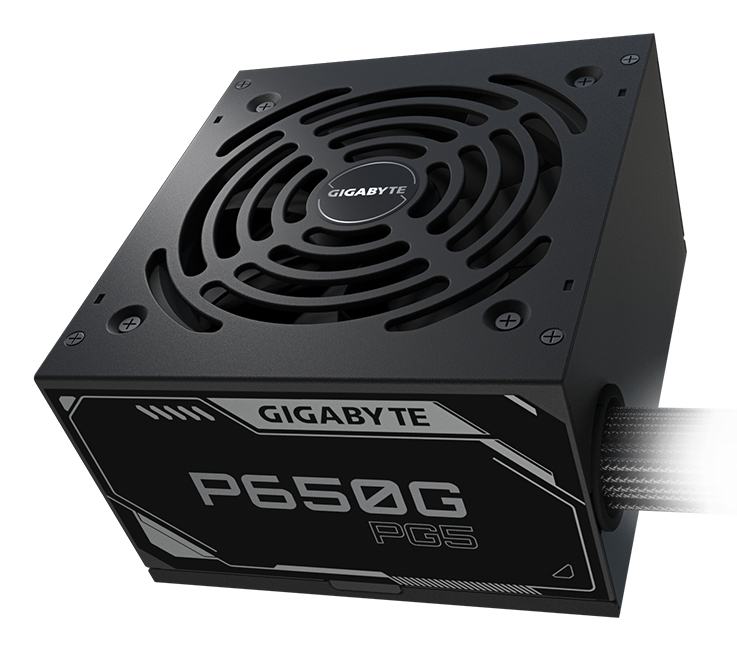

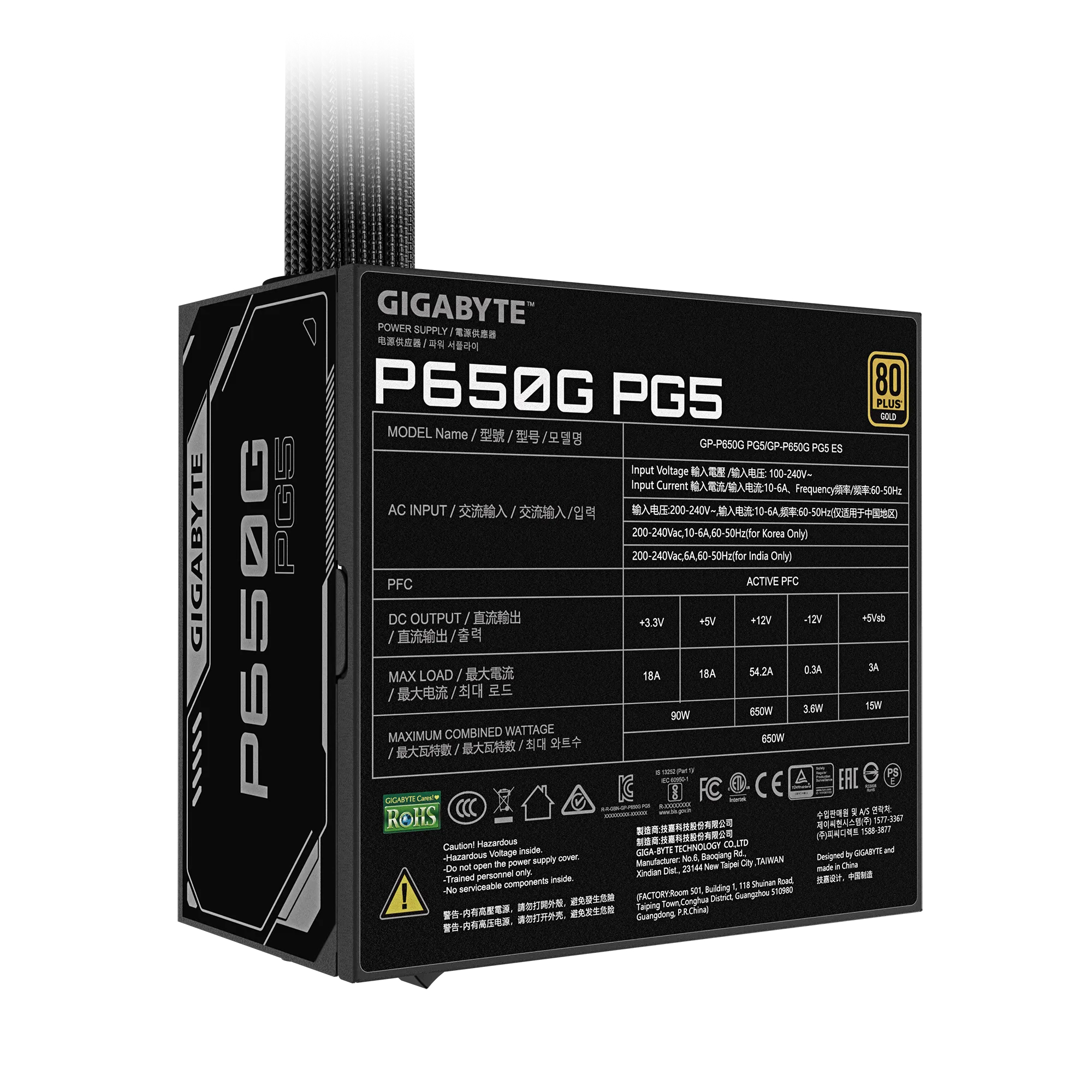

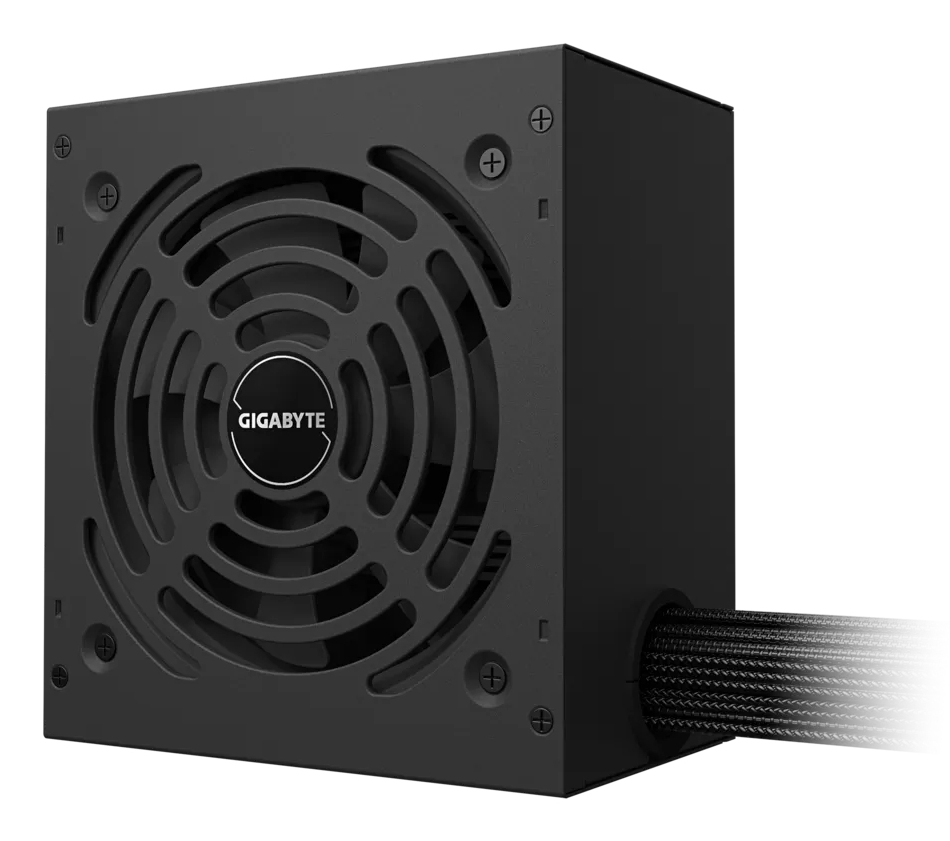

P650G power supply unit
650 W 20+4 pin ATX ATX Black
Model P650GPart no. GP-P650G-UKEAN 4719331553791
49 specifications
- ColourBlack
- Total power650 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width140 mm
Overview
- Colour
- Black
- Total power
- 650 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 140 mm
- Brand
- GIGABYTE
- Category
- Power Supply Unit
- Model
- P650G
- Part number
- GP-P650G-UK
- EAN / UPC
- 4719331553791
- Also known as
- GIGABYTE P650G power supply unit 650 W 20+4 pin ATX ATX Black
Specifications
49 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 650 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 10 - 6 A |
| Maximum input current (@110V) | 10 A |
| Maximum input current (@220V) | 6 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 90 W |
| Combined power (+12V) | 650 W |
| Combined power (+5V) | 90 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 18 A |
| Max output current (+12V) | 54.2 A |
| Max output current (+5V) | 18 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 15 A |
| Efficiency | 70% |
| Power protection features | Over power, Overcharge, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 50 cm |
| Number of SATA power connectors | 6 |
| SATA power cable length | 150,500 mm |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| Peripheral (Molex) power cable length | 150,500 mm |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power cable length | 65 cm |
| CPU P4 connector (4-pin) | 1 |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 60 cm |
| ATX power connector (20+4 pin) | Yes |
| Floppy disk drive connector | Yes |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Bronze |
| ATX version | 3.1 |
| Bearing technology | HDB |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| On/off switch | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 140 mm |
| Depth | 150 mm |
| Height | 86 mm |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
