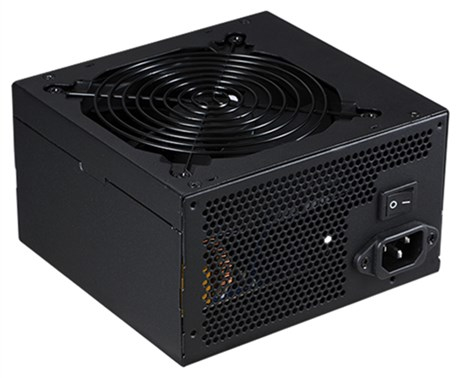

GIGABYTE Greenmax Plus
Model Greenmax PlusPart no. 2AEMS-65AC9-C01SEAN 4719331124311
34 specifications
- Weight2.3 kg
- ColourBlack
- Total power650 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- SafetyCE, CB
Overview
- Weight
- 2.3 kg
- Colour
- Black
- Total power
- 650 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Safety
- CE, CB
- Brand
- GIGABYTE
- Category
- Power Supply Unit
- Model
- Greenmax Plus
- Part number
- 2AEMS-65AC9-C01S
- EAN / UPC
- 4719331124311, 4719331125288
- Also known as
- GIGABYTE Greenmax Plus power supply unit 650 W 20+4 pin ATX Black
Specifications
34 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 650 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 10 A |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 624 W |
| Combined power (+5V) | 120 W |
| Max output current (+3.3V) | 24 A |
| Max output current (+12V1) | 40 A |
| Max output current (+12V2) | 40 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 3 A |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 7 |
| Peripheral (Molex) power connectors (4-pin) | 5 |
| PCI Express power connectors (6+2 pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Bronze |
| ATX version | 2.3 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | SLI |
Safety regulation & standards
| Specification | Value |
|---|---|
| Safety | CE, CB |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Weight | 2.3 kg |
