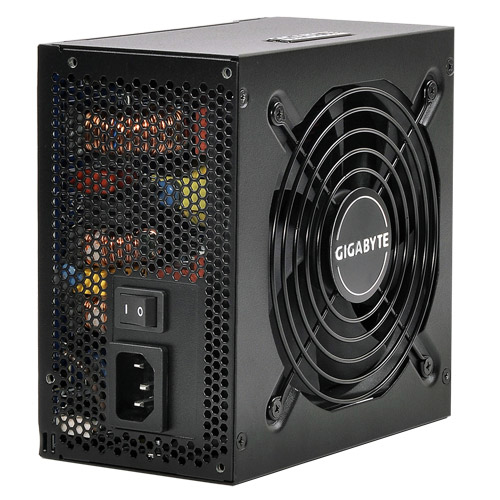

GIGABYTE GreenMax power supply unit
450 W 24-pin ATX ATX Black
Model GreenMaxPart no. GE-X450A-C1EAN 4719331103026
35 specifications
- Weight2.5 kg
- ColourBlack
- Total power450 W
- Motherboard power connector24-pin ATX
- Power supply unit (PSU) form factorATX
- Width150 mm
Overview
- Weight
- 2.5 kg
- Colour
- Black
- Total power
- 450 W
- Motherboard power connector
- 24-pin ATX
- Power supply unit (PSU) form factor
- ATX
- Width
- 150 mm
- Brand
- GIGABYTE
- Category
- Power Supply Unit
- Model
- GreenMax
- Part numbers
- GE-X450A-C1, GE-X550A-C1, GE-X650A-C1, GE-X750A-C1
- EAN / UPC
- 4719331103026
- Also known as
- GIGABYTE GreenMax power supply unit 450 W 24-pin ATX ATX Black
Specifications
35 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 450 W |
| AC input voltage | 100 - 240 V |
| Input current | 10 A |
| Maximum input current (@110V) | +12V1,+12V2,+12V3,+3.3V,+5V,+5Vsb,-12V |
| Combined power (+3.3V) | 105 W |
| Combined power (+12V) | 418 W |
| Combined power (+5V) | 105 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V1) | 20 A |
| Max output current (+12V2) | 20 A |
| Max output current (+12V3) | 20 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 5 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| PCI Express power connectors (6+2 pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| Floppy disk drive connector | Yes |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Bronze |
| ATX version | 2.3 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE, CB, cUL, FCC, BSMI, C-Tick, TUV |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 2.5 kg |
