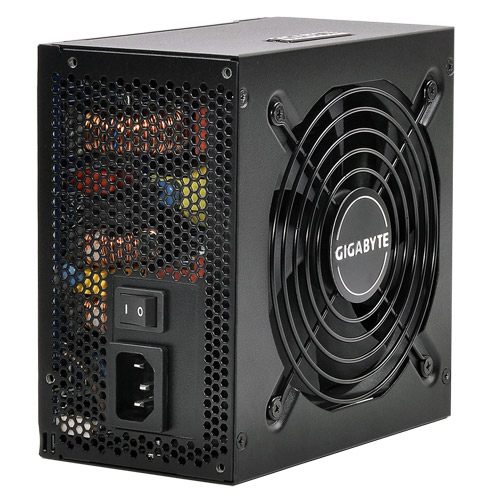

GIGABYTE GE-X750A-C1 power supply unit
750 W 24-pin ATX ATX Black
Model GE-X750A-C1Part no. 24EPG-X75AC1-29REAN 4719331103064
42 specifications
- Weight2.55 kg
- ColourBlack
- Total power750 W
- Motherboard power connector24-pin ATX
- PurposePC
- Width150 mm
Overview
- Weight
- 2.55 kg
- Colour
- Black
- Total power
- 750 W
- Motherboard power connector
- 24-pin ATX
- Purpose
- PC
- Width
- 150 mm
- Brand
- GIGABYTE
- Category
- Power Supply Unit
- Model
- GE-X750A-C1
- Part number
- 24EPG-X75AC1-29R
- EAN / UPC
- 4719331103064
- Also known as
- GIGABYTE GE-X750A-C1 power supply unit 750 W 24-pin ATX ATX Black
Specifications
42 specifications in 9 groups
Power
| Specification | Value |
|---|---|
| Total power | 750 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 12 - 6.3 A |
| Maximum input current (@110V) | +12V1,+12V2,+12V3,+12V4,+3.3V,+5V,+5Vsb,-12V |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 190 W |
| Combined power (+5V) | 190 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Power protection features | Over current, Over voltage, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 7 |
| Peripheral (Molex) power connectors (4-pin) | 5 |
| PCI Express power connectors (6+2 pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| ATX Power connector (24-pin) | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Bronze |
| ATX version | 2.3 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | Dual SLI, NVIDIA SLI-Ready |
Safety regulation & standards
| Specification | Value |
|---|---|
| Safety | CE, CB, cUL, FCC, BSMI, C-Tick, TUV |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 86 mm |
| Height | 150 mm |
| Weight | 2.55 kg |
Technical details
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 150 x 86 x 150 mm |
| Ports quantity | 17 |
| Weight (imperial) | 2.55 kg (5.62 lbs) |
