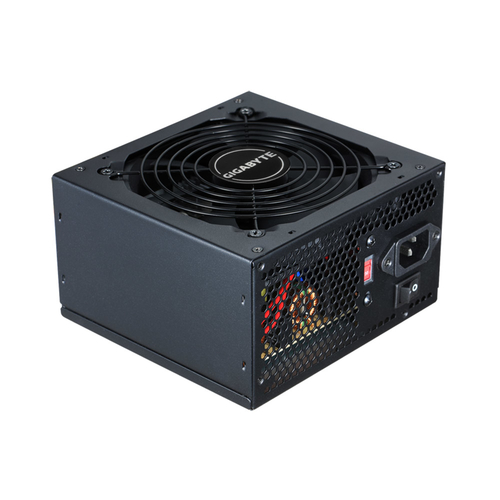

GIGABYTE GE-HK20A-D1 power supply unit
1200 W 24-pin ATX ATX Black
Model GE-HK20A-D1
34 specifications
- Weight2.5 kg
- ColourBlack
- Total power1200 W
- Motherboard power connector24-pin ATX
- Power supply unit (PSU) form factorATX
- Width150 mm
Overview
- Weight
- 2.5 kg
- Colour
- Black
- Total power
- 1200 W
- Motherboard power connector
- 24-pin ATX
- Power supply unit (PSU) form factor
- ATX
- Width
- 150 mm
- Brand
- GIGABYTE
- Category
- Power Supply Unit
- Model
- GE-HK20A-D1
- Part number
- GE-HK20A-D1
- Also known as
- GIGABYTE GE-HK20A-D1 power supply unit 1200 W 24-pin ATX ATX Black
Specifications
34 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 1200 W |
| AC input voltage | 110 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 15 A |
| Maximum input current (@110V) | +12V1,+12V2,+12V3,+12V4,+12V5,+12V6,+3.3V,+5V,+5Vsb,-12V |
| Power Factor Correction (PFC) type | Active |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V1) | 25 A |
| Max output current (+12V2) | 25 A |
| Max output current (+12V3) | 25 A |
| Max output current (+12V4) | 30 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 4 A |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 12 |
| Peripheral (Molex) power connectors (4-pin) | 5 |
| EPS power connector (8-pin) | Yes |
| PCI Express power connectors (6+2 pin) | 6 |
| CPU power connector (4+4 pin) | Yes |
| Floppy disk drive connector | Yes |
| Cabling type | Semi-Modular |
Performance
| Specification | Value |
|---|---|
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Silver |
| ATX version | 2.3 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 200 mm |
| Height | 86 mm |
| Weight | 2.5 kg |
