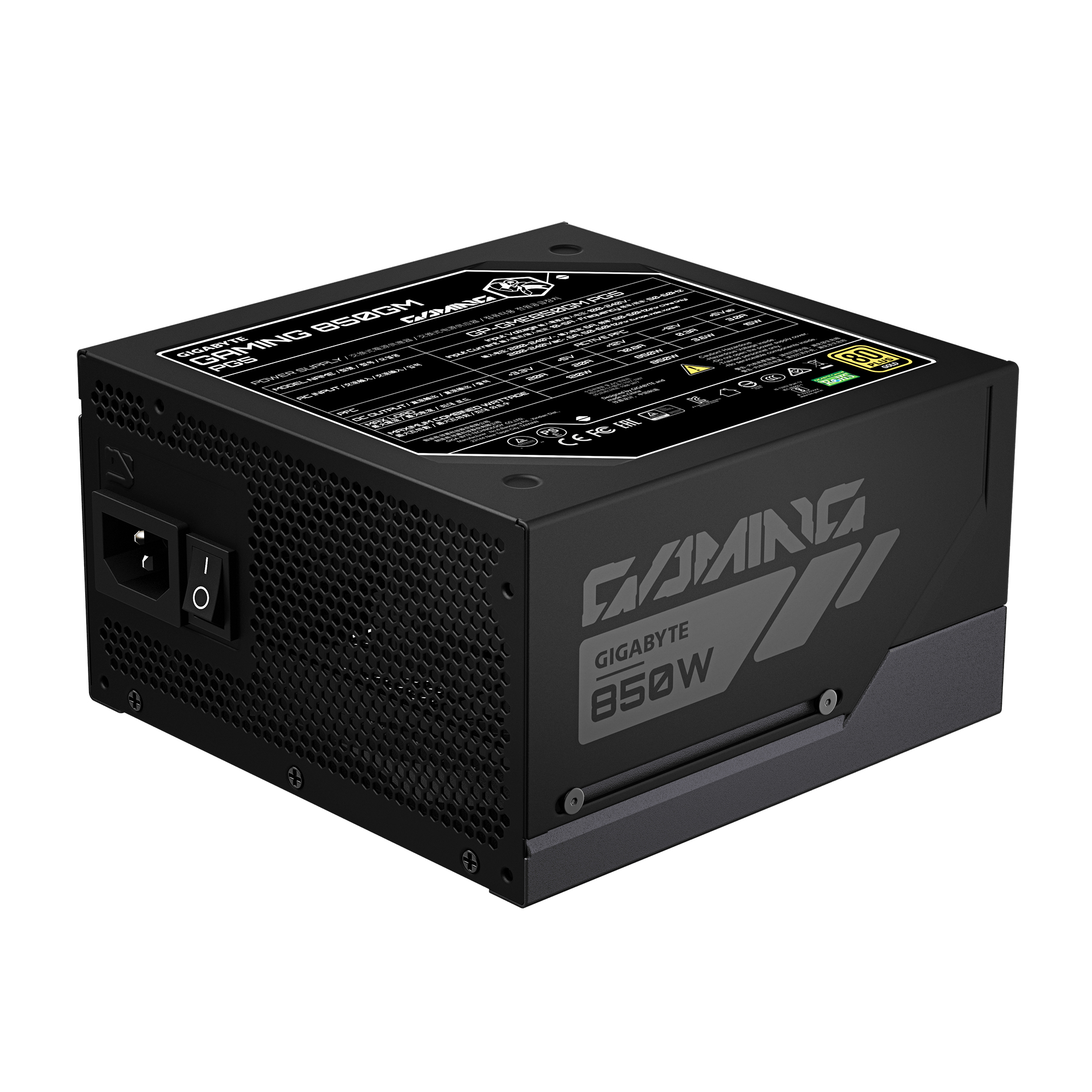

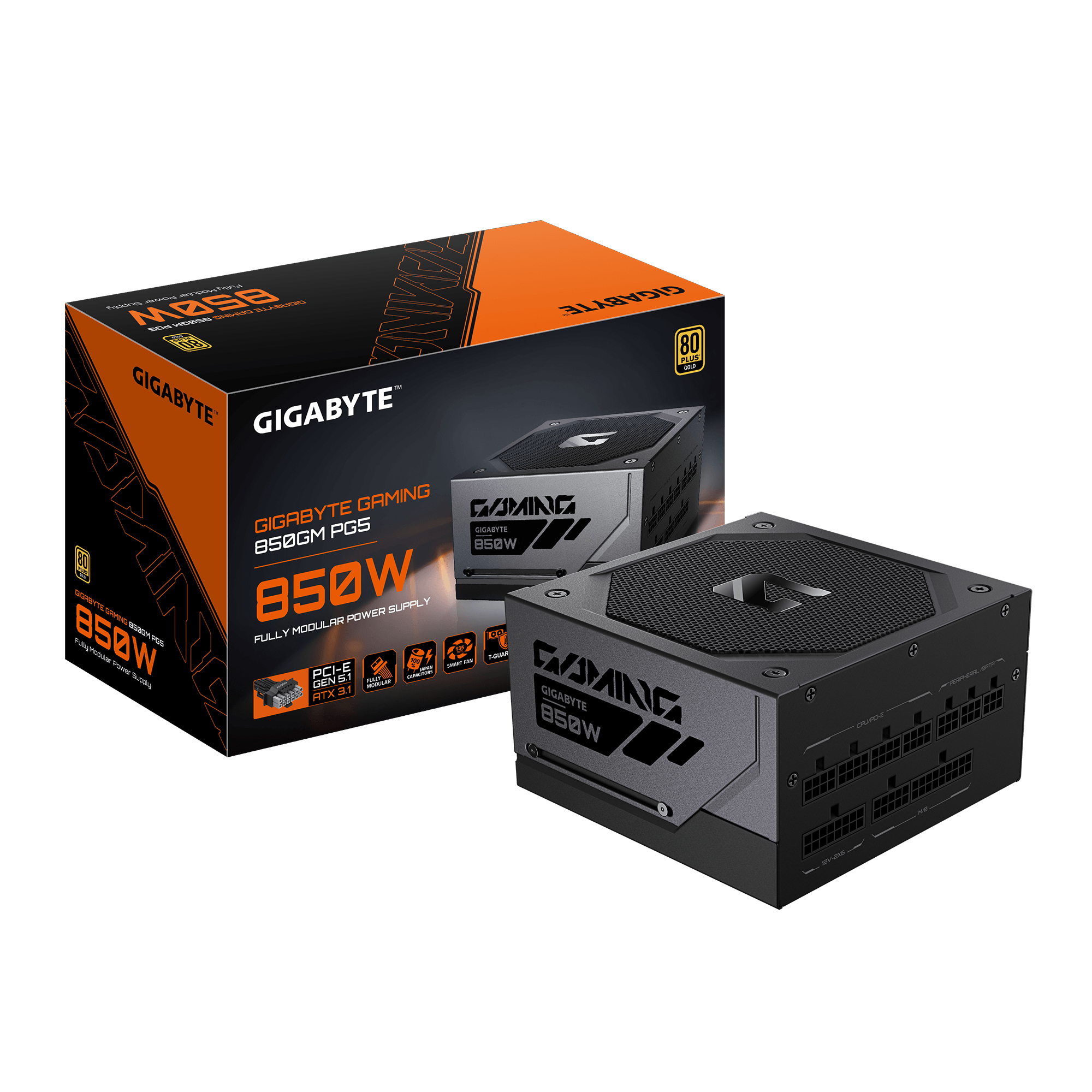

GAMING 850GM PG5
Model GAMING 850GM PG5Part no. GP-GME850GM PG5 UKEAN 4719331557317
55 specifications
- Weight2.5 kg
- ColourBlack
- Total power850 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width150 mm
Overview
- Weight
- 2.5 kg
- Colour
- Black
- Total power
- 850 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 150 mm
- Brand
- GIGABYTE
- Category
- Power Supply Unit
- Model
- GAMING 850GM PG5
- Part numbers
- GP-GME850GM PG5 UK, GP-GME850GM PG5 EU
- EAN / UPC
- 4719331557317, 4719331557270
- Also known as
- GIGABYTE GAMING 850GM PG5 Power Supply Unit - PCIe 5.1, 80 PLUS Gold, Fully Modular Design, 135mm Fan, ATX 3.1 compatible, UK Plug
Specifications
55 specifications in 7 groups

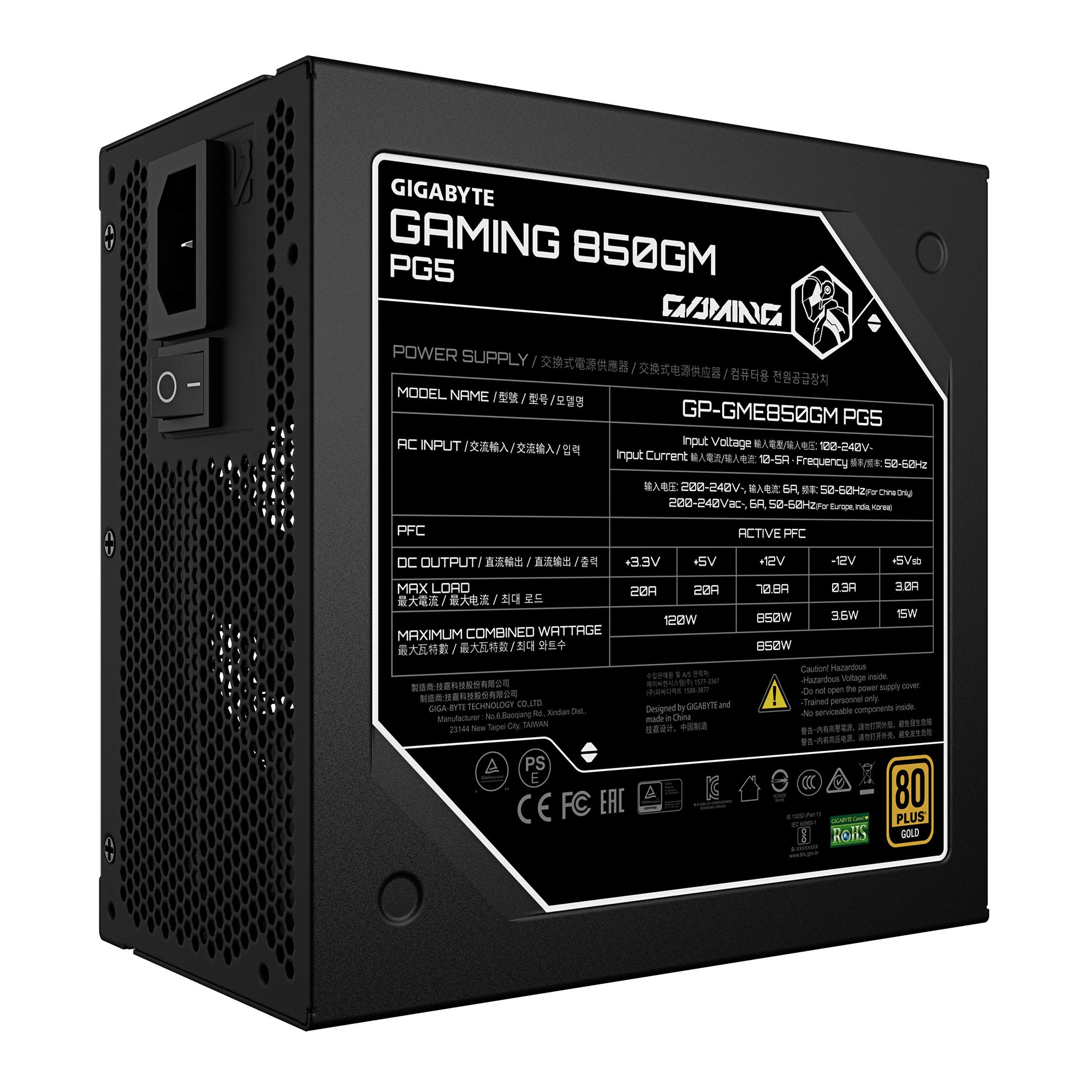

Power
| Specification | Value |
|---|---|
| Total power | 850 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 10 A |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 850 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 70.8 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 90% |
| Hold time | 17 ms |
| Power Good signal delay range | 100 - 150 ms |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage, Surge & inrush protection (SIP), No load operation |

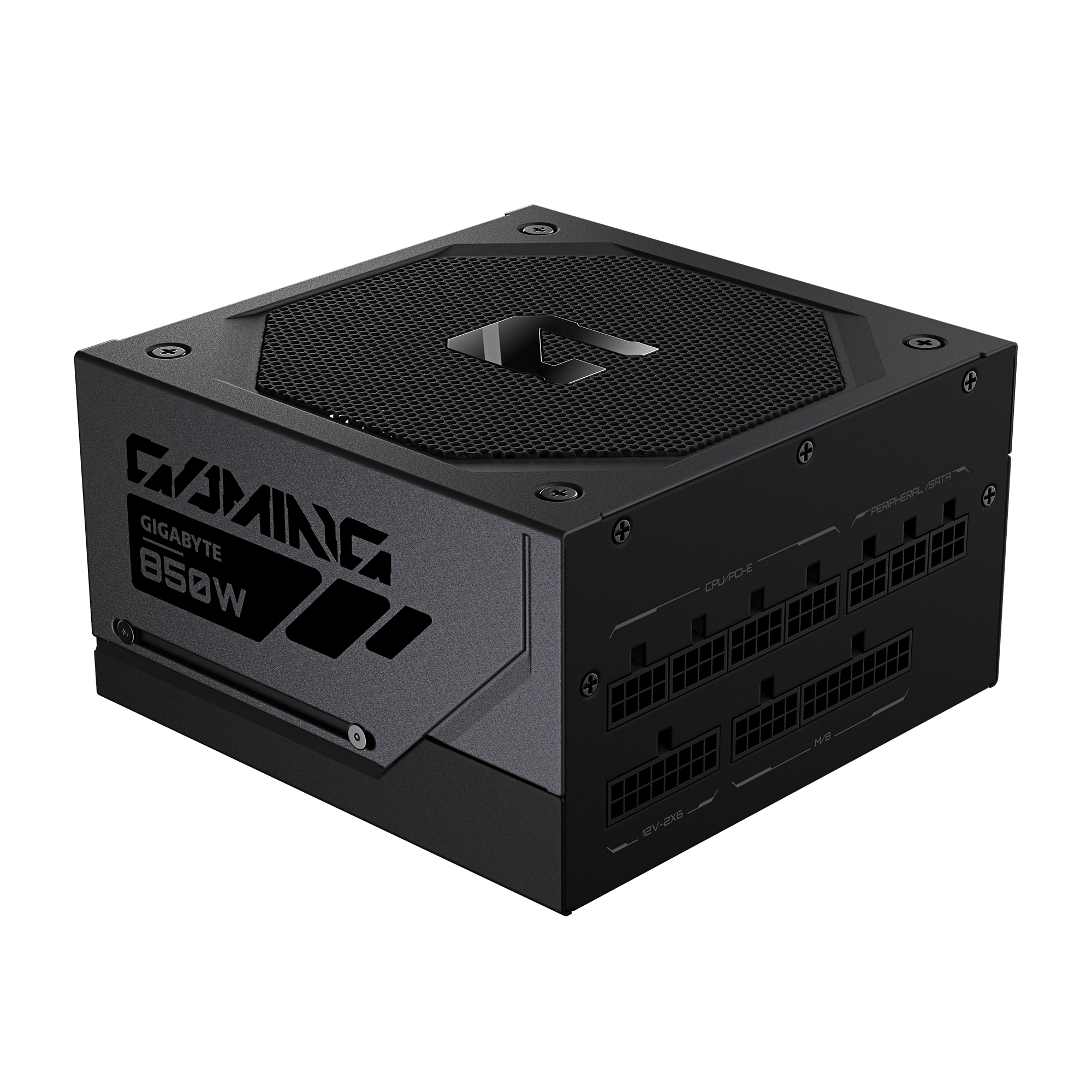

Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 61 cm |
| Number of SATA power connectors | 8 |
| Number of SATA power cables | 2 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power connectors (16-pin) | 1 |
| CPU power connector (4+4 pin) | Yes |
| ATX power connector (20+4 pin) | Yes |
| Number of EPS connectors | 2 |
| PCI Express connector | Yes |
| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 3.1 |
| Bearing technology | FDB |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 13.5 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| On/off switch | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 2.5 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 302 mm |
| Package depth | 184 mm |
| Package height | 129 mm |
| Package weight | 3.1 kg |
| Package type | Box |
Logistics data
| Specification | Value |
|---|---|
| Warranty period | 10 year(s) |
