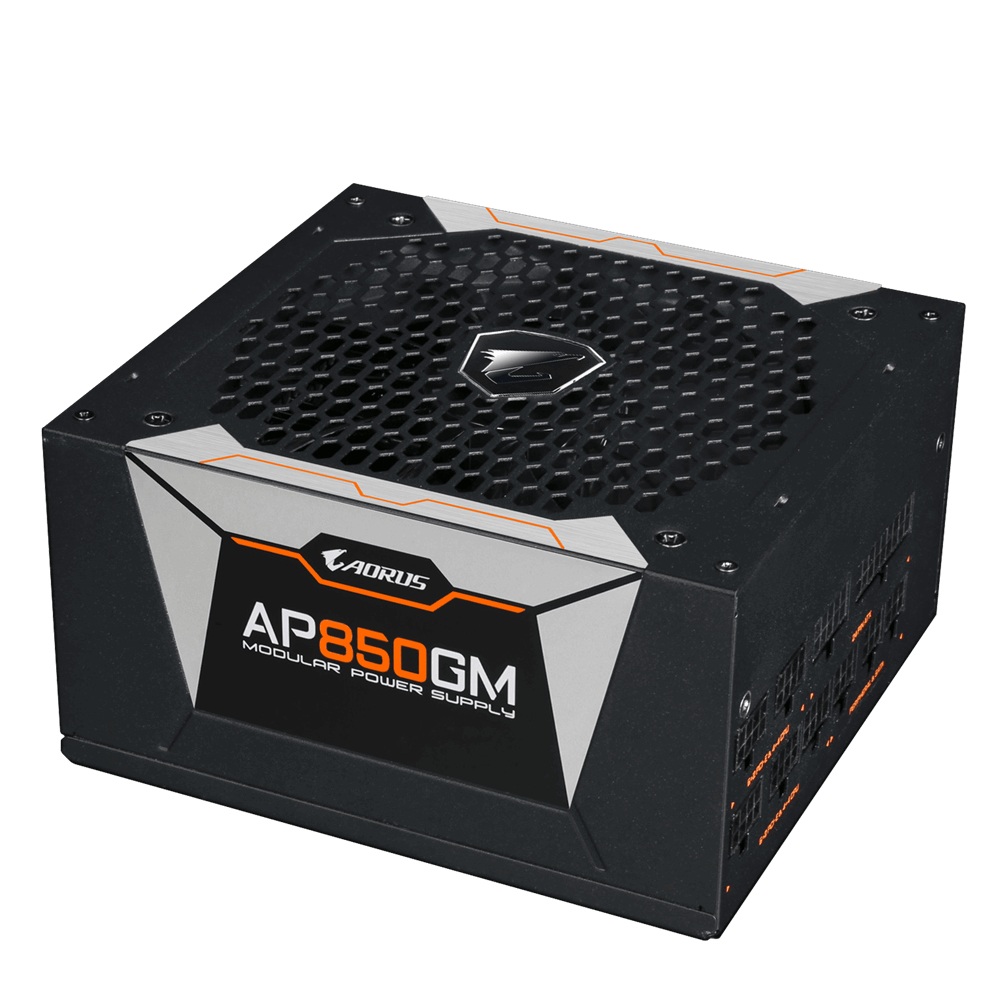

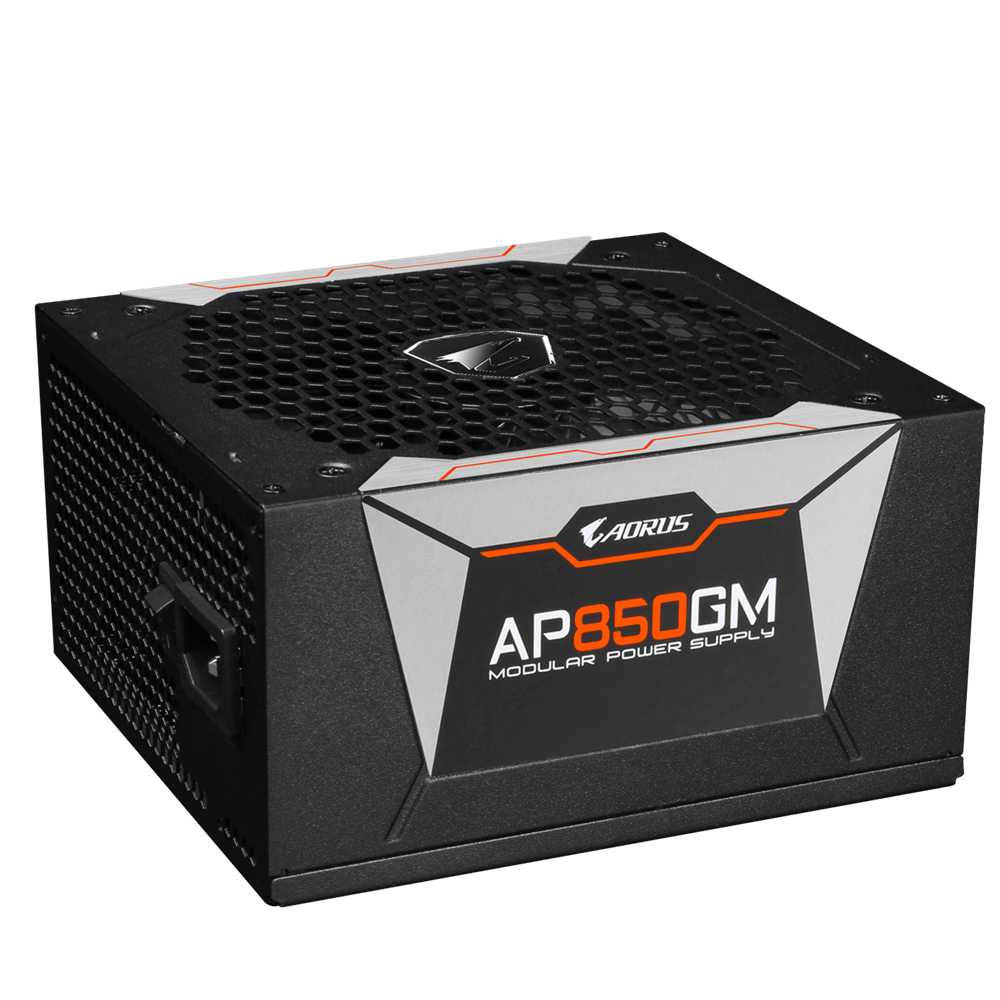

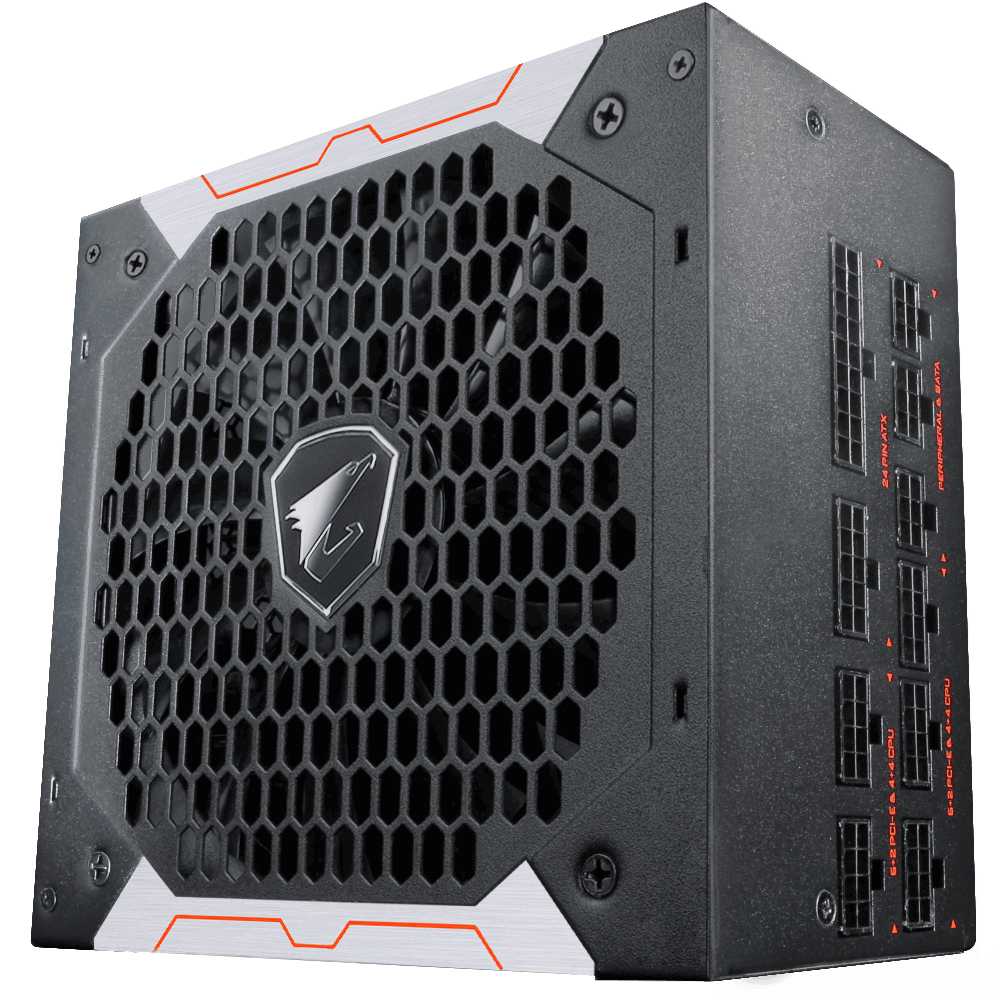

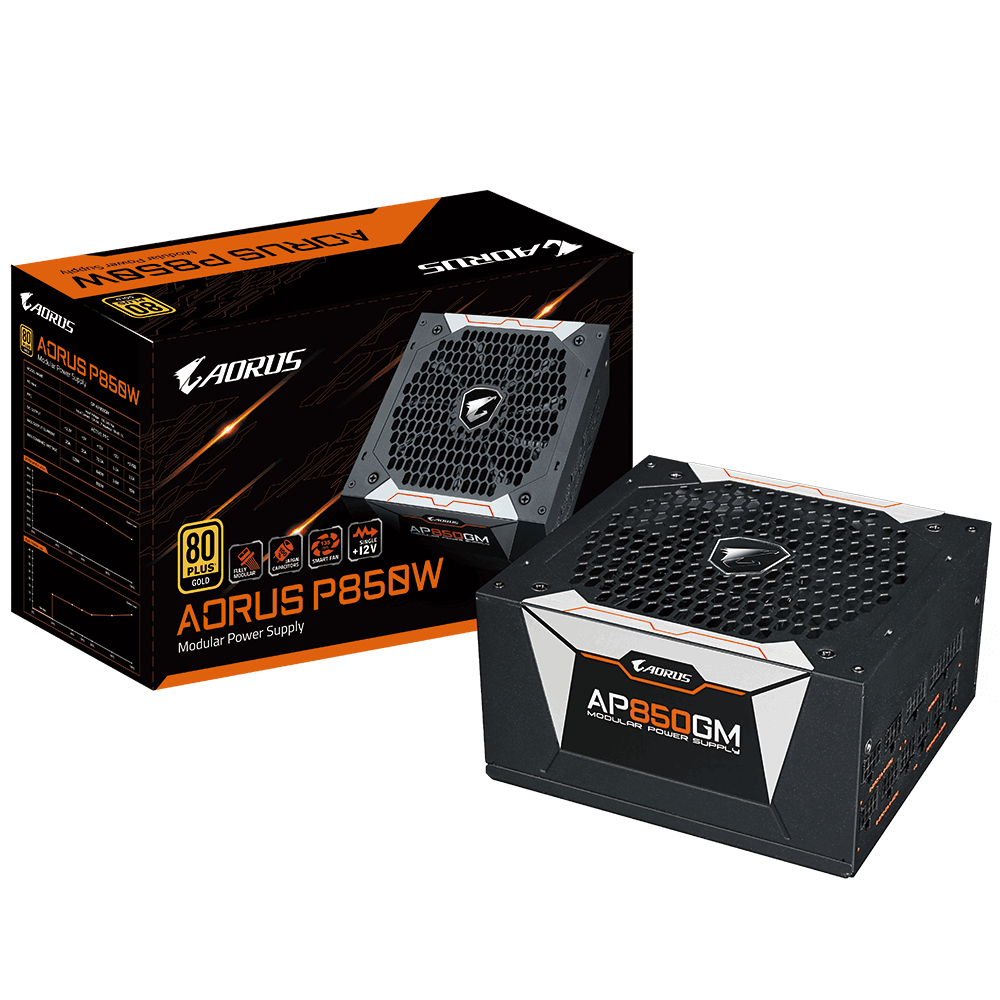

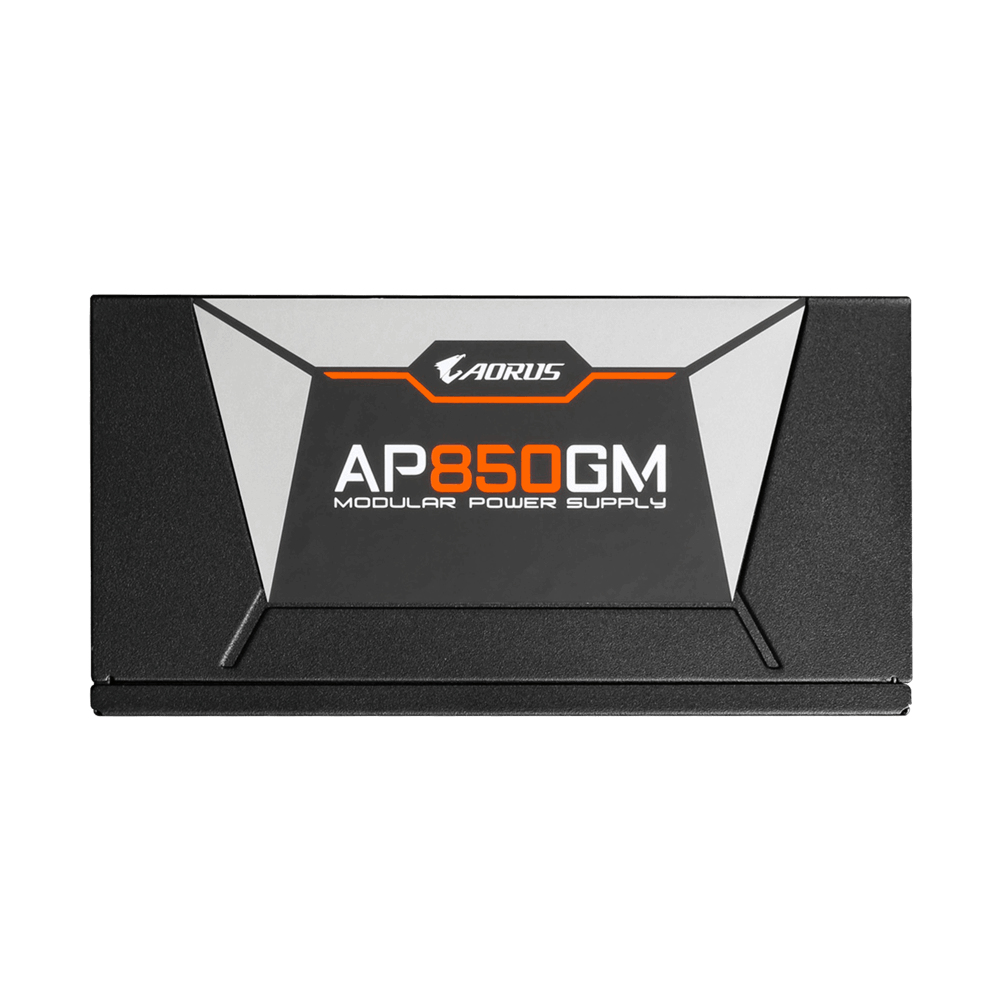

GIGABYTE AP850GM power supply unit

GIGABYTE AP850GM power supply unit

850 W 20+4 pin ATX ATX Black

Model AP850GMPart no. GP-AP850GMEAN 813567026143

50 specifications
  • ColourBlack
  • Total power850 W
  • Motherboard power connector20+4 pin ATX
  • PurposePC
  • Width150 mm
See all specifications

Overview

Colour
Black
Total power
850 W
Motherboard power connector
20+4 pin ATX
Purpose
PC
Width
150 mm
Brand
GIGABYTE
Model
AP850GM
Part number
GP-AP850GM
EAN / UPC
813567026143
Also known as
GIGABYTE AP850GM power supply unit 850 W 20+4 pin ATX ATX Black

Specifications

50 specifications in 6 groups

Power

Total power850 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Input current12 A
Power factor0.9
Power Factor Correction (PFC) typeActive
Combined power (+3.3V)120 W
Combined power (+12V)846 W
Combined power (+5V)120 W
Combined power (-12V)3.6 W
Combined power (+5Vsb)15 W
Max output current (+3.3V)20 A
Max output current (+12V)70.5 A
Max output current (+5V)20 A
Max output current (-12V)0.3 A
Max output current (+5Vsb)3 A
Efficiency90%
Hold time150 ms
Power protection featuresOver current, Over power, Over voltage, Overheating, Short circuit, Under voltage

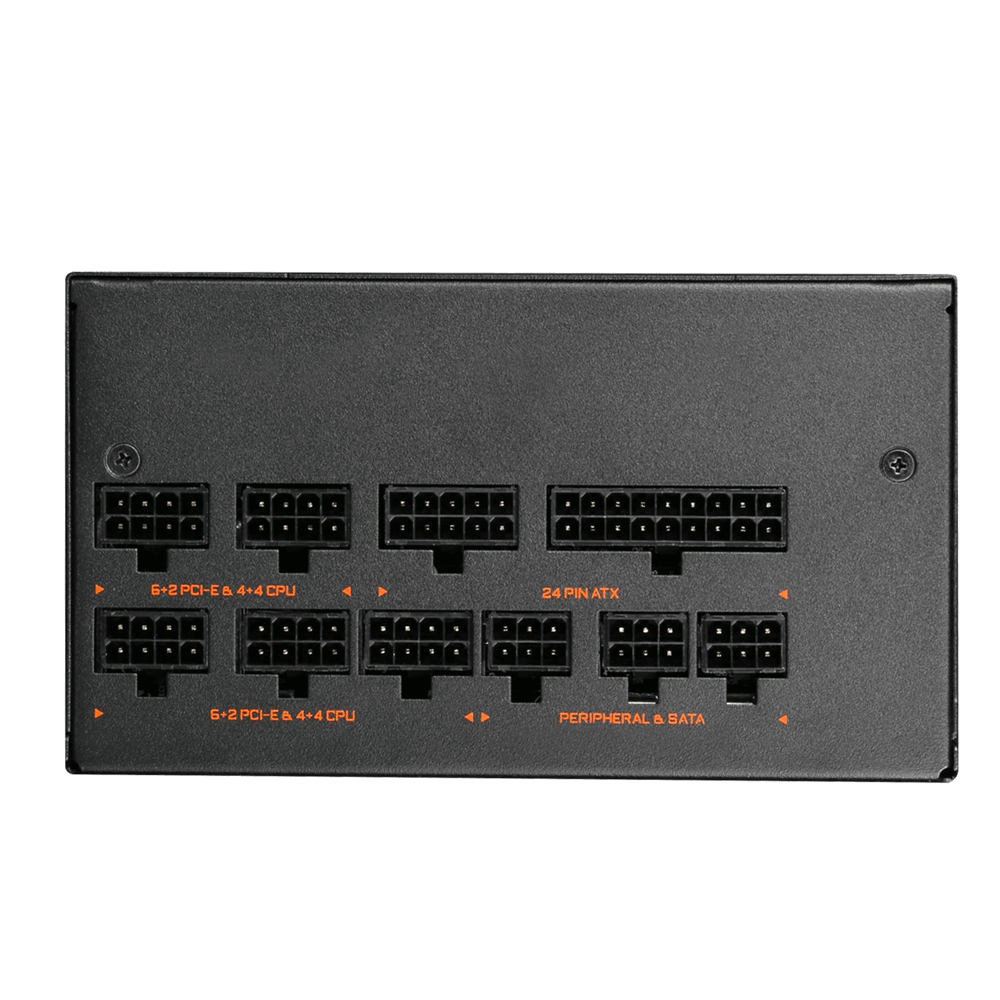

Ports & interfaces

Motherboard power connector20+4 pin ATX
Motherboard power cable length65 cm
Number of SATA power connectors6
SATA power cable length550,650,750 mm
Peripheral (Molex) power connectors (4-pin)5
Peripheral (Molex) power cable length450,550,650,850 mm
EPS power connector (8-pin)Yes
PCI Express power connectors (6+2 pin)6
PCI Express power cable length75 cm
CPU power connector (4+4 pin)Yes
CPU power cable length80 cm
ATX power connector (20+4 pin)Yes
Floppy disk drive cable length95 cm
Floppy disk drive connectorYes
Floppy drive power connector2
Cabling typeFully-Modular

Performance

PurposePC
Power supply unit (PSU) form factorATX
80 PLUS certification80 PLUS Gold
ATX version2.31
Bearing technologyBall bearing
Mean time between failures (MTBF)100000 h

Design

Product colourBlack
Cooling typeActive

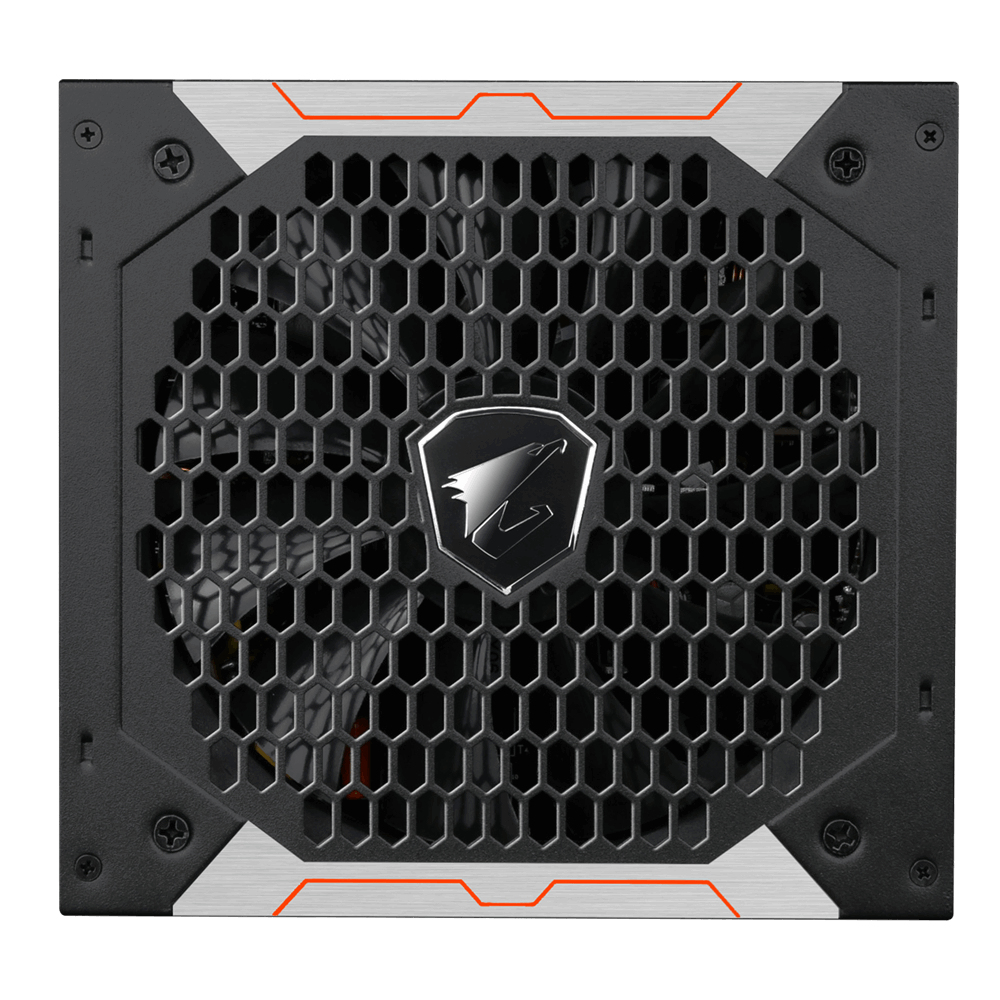

Fan diameter13.5 cm
Number of fans1 fan(s)

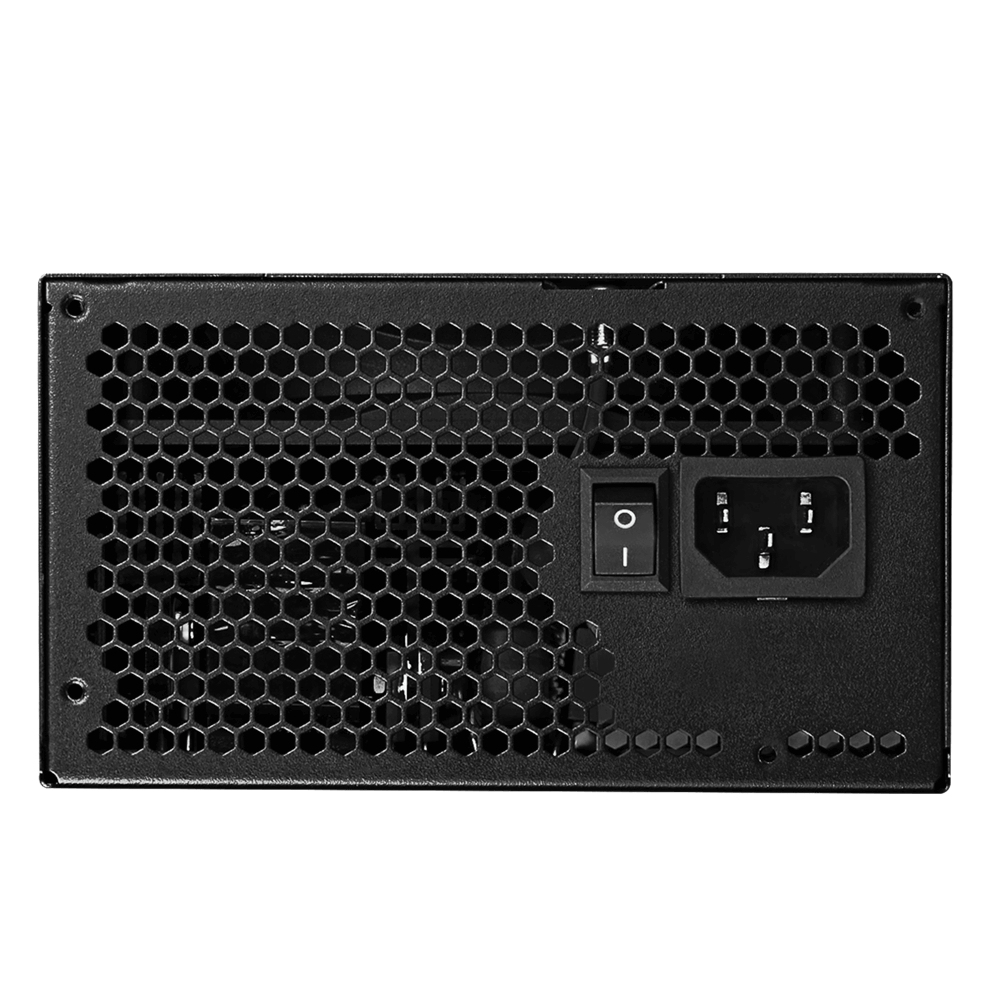

On/off switchYes

Weight & dimensions

Width150 mm
Depth160 mm
Height86 mm

Logistics data

Harmonized System (HS) code84733020
