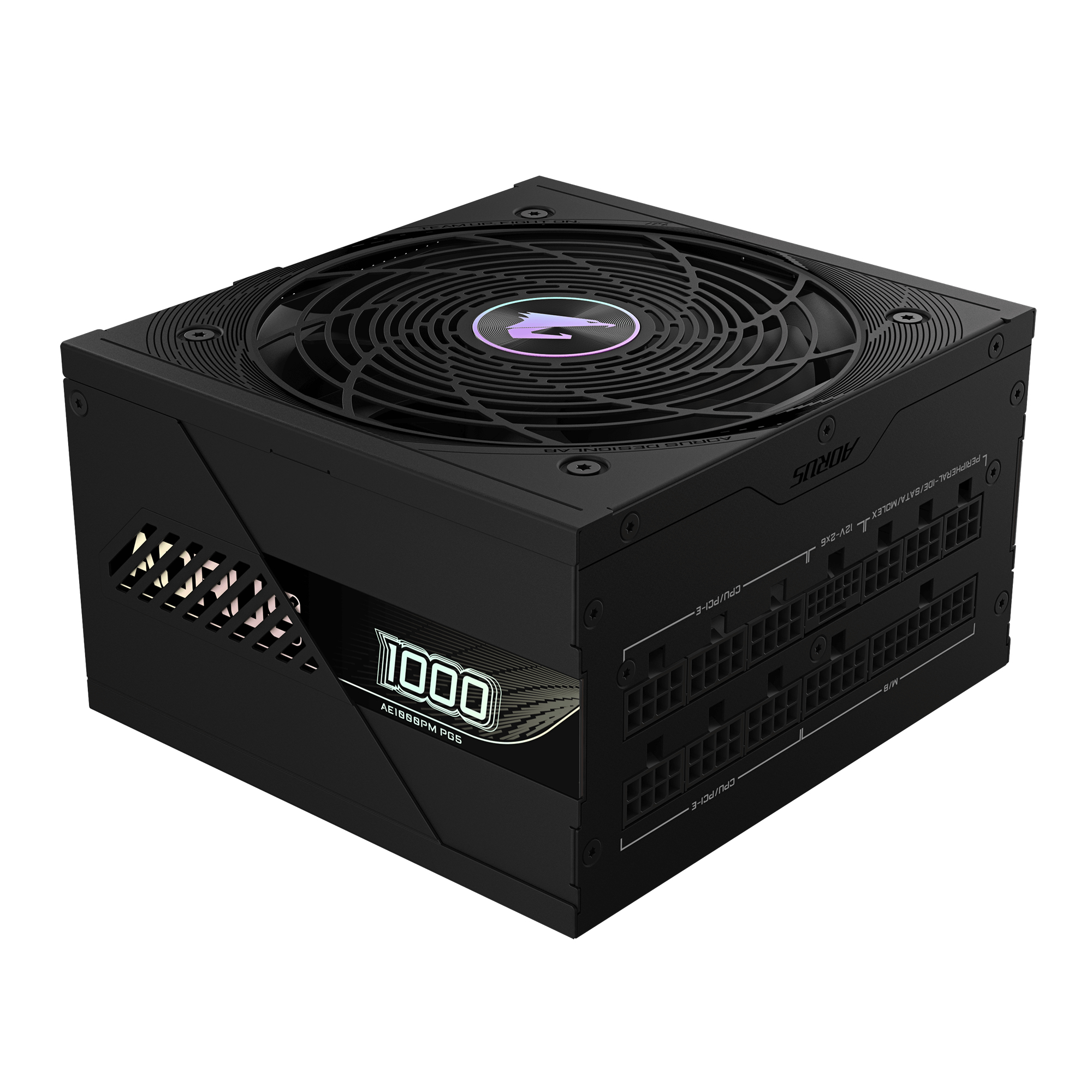

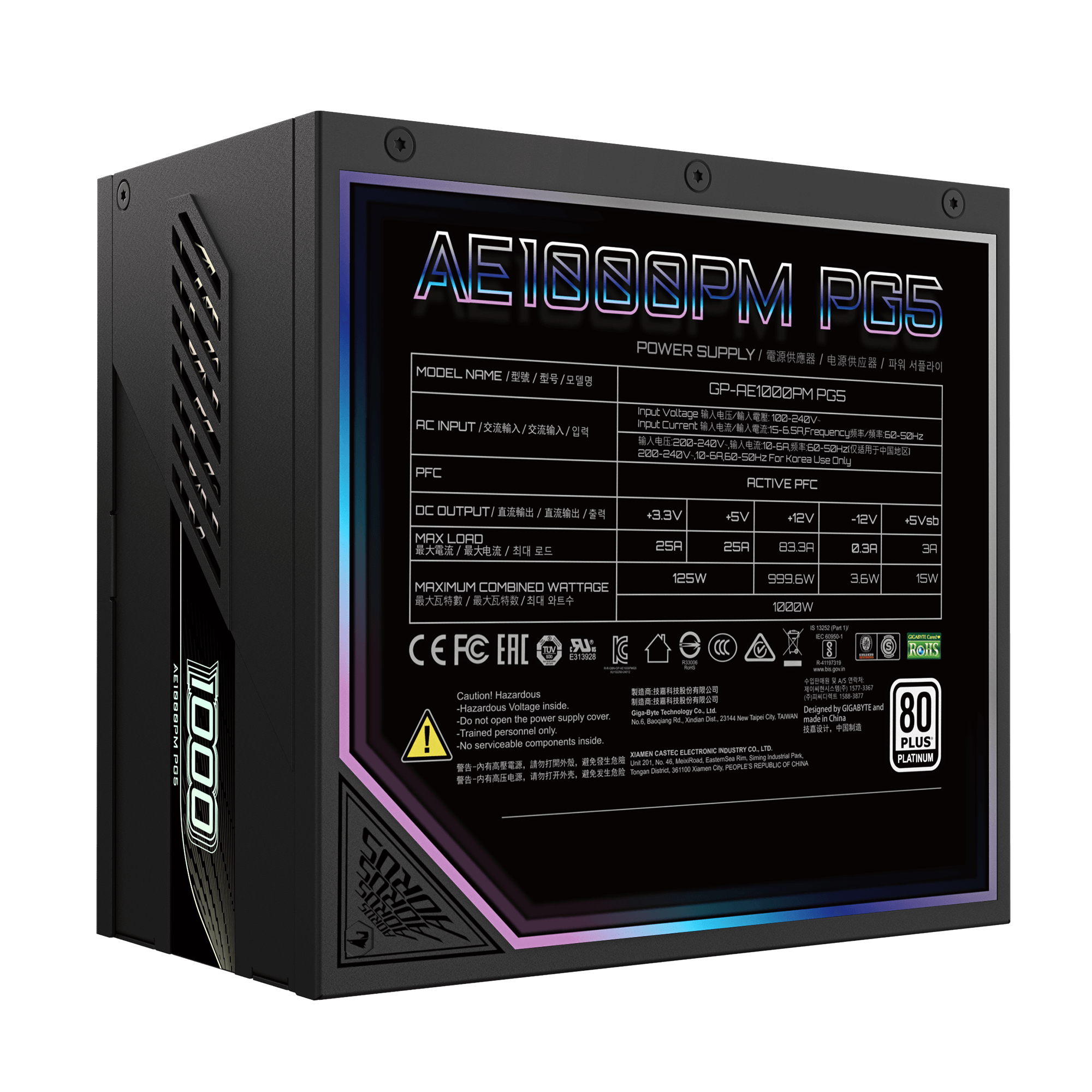

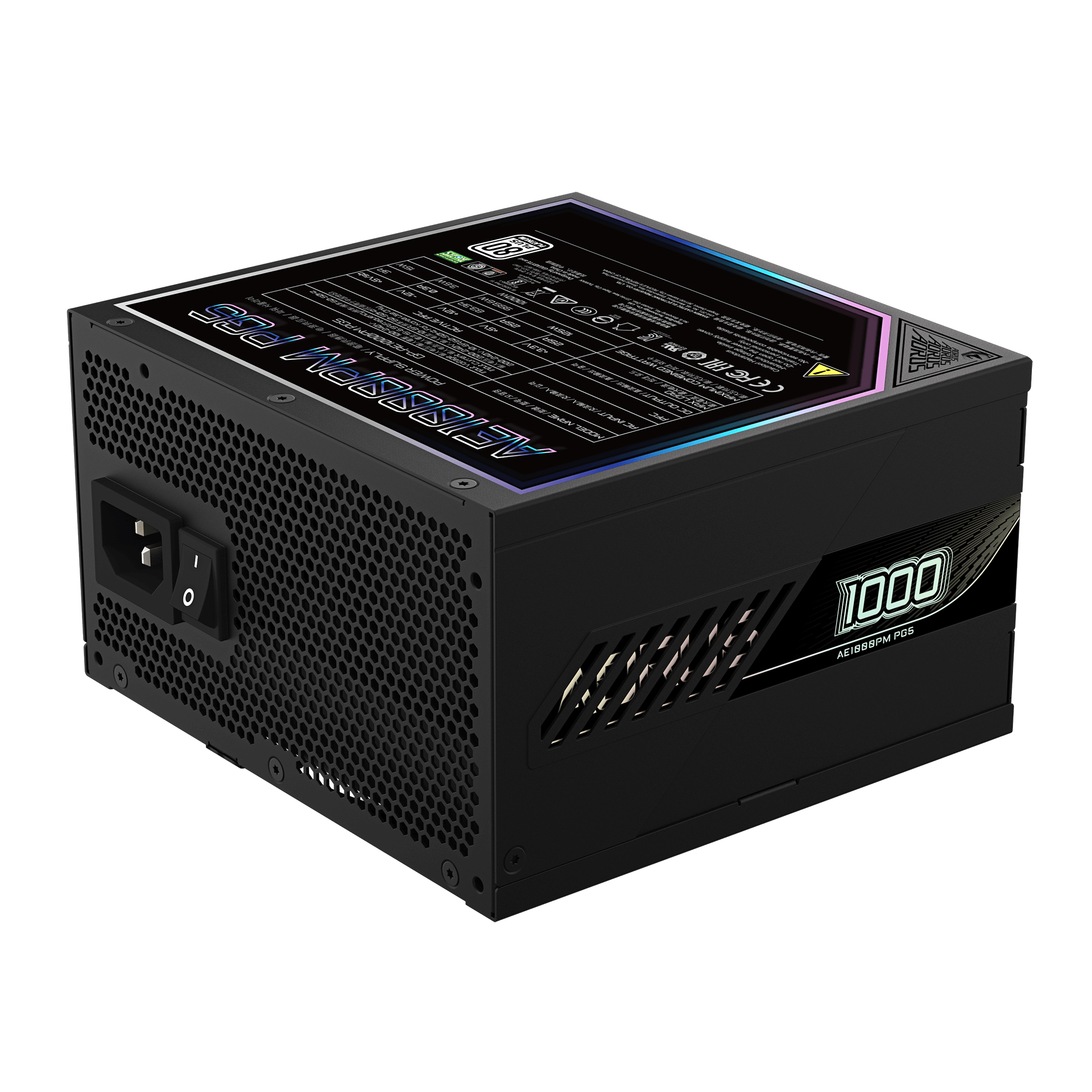

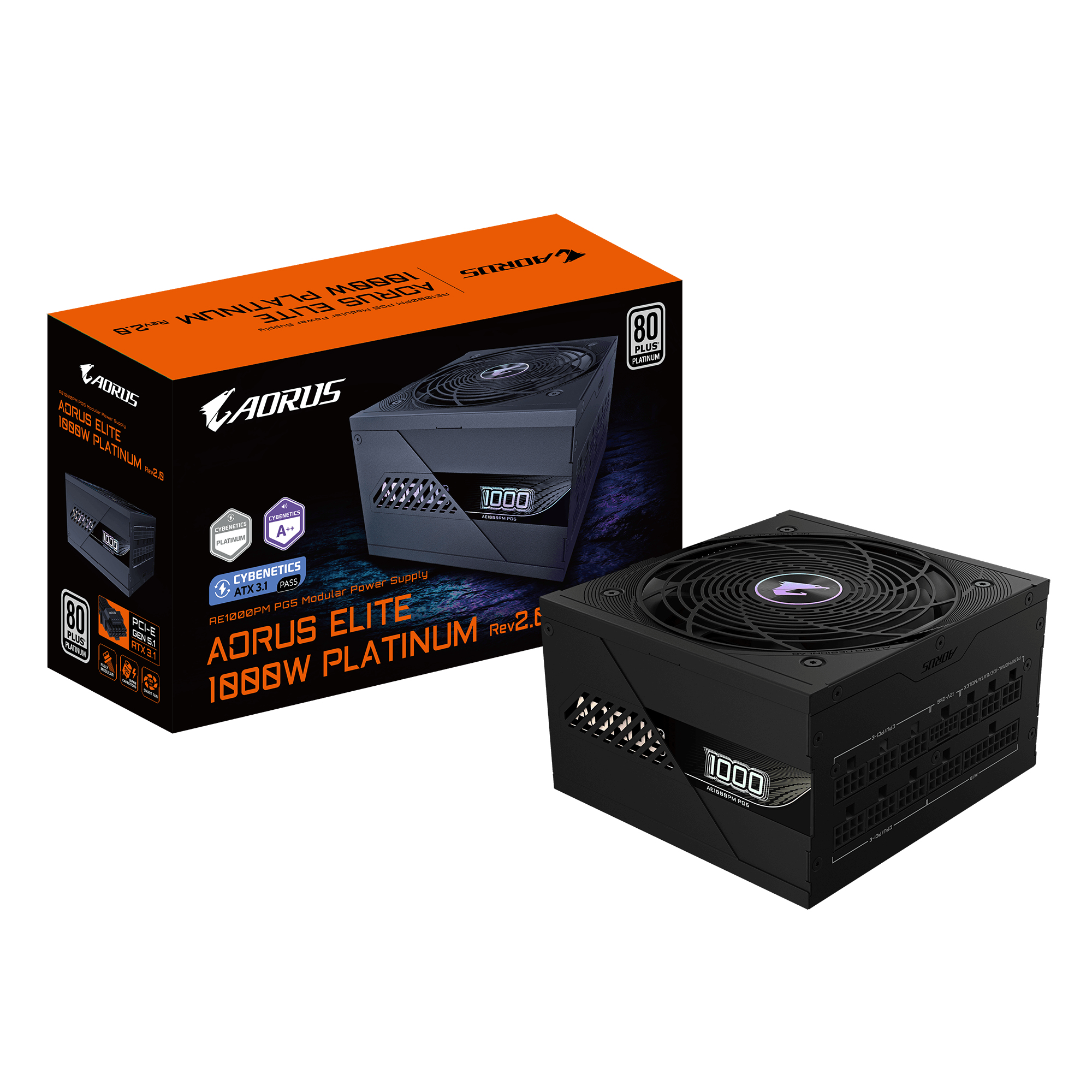

AORUS ELITE P1000W V2
Model AORUS ELITE P1000W V2Part no. GP-AE1000PM PG5 V2 UKEAN 4719331557836
55 specifications
- Weight3.08 kg
- ColourBlack
- Total power1000 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width150 mm
Overview
- Weight
- 3.08 kg
- Colour
- Black
- Total power
- 1000 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 150 mm
- Brand
- GIGABYTE
- Category
- Power Supply Unit
- Model
- AORUS ELITE P1000W V2
- Part numbers
- GP-AE1000PM PG5 V2 UK, GP-AE1000PM PG5 V2 EU
- EAN / UPC
- 4719331557836, 4719331557799
- Also known as
- GIGABYTE AORUS ELITE P1000W V2 Power Supply Unit - PCIe 5.1, 80 PLUS Platinum, Fully modular design, 120mm Fan, ATX 3.1 compatible, UK Plug
Specifications
55 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 1000 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 15 - 6.5 A |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 125 W |
| Combined power (+12V) | 999.6 W |
| Combined power (+5V) | 125 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V) | 83.3 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 92% |
| Hold time | 16 ms |
| Power Good signal delay range | 100 - 150 ms |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage, No load operation, Surge & inrush protection (SIP) |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 65 cm |
| Number of SATA power connectors | 8 |
| Number of SATA power cables | 2 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 6 |
| PCI Express power connectors (16-pin) | 1 |
| CPU power connector (4+4 pin) | Yes |
| ATX power connector (20+4 pin) | Yes |
| Number of EPS connectors | 2 |
| PCI Express connector | Yes |
| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Platinum |
| ATX version | 3.1 |
| Bearing technology | FDB |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| On/off switch | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Weight | 3.08 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 340 mm |
| Package depth | 206 mm |
| Package height | 120 mm |
| Package weight | 3.72 kg |
| Package type | Box |
Logistics data
| Specification | Value |
|---|---|
| Warranty period | 10 year(s) |
