PN1200M power supply unit
1200 W 20+4 pin ATX ATX Black
Model PN1200MPart no. R-PNC00M-FC0B-JGEUEAN 6933412741404
39 specifications
- ColourBlack
- Total power1200 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Operating temperature (T-T)0 - 40 °C
- Width150 mm
Overview
- Colour
- Black
- Total power
- 1200 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Operating temperature (T-T)
- 0 - 40 °C
- Width
- 150 mm
- Brand
- Gamer Storm
- Category
- Power Supply Unit
- Model
- PN1200M
- Part number
- R-PNC00M-FC0B-JGEU
- EAN / UPC
- 6933412741404
- Also known as
- Gamer Storm PN1200M power supply unit 1200 W 20+4 pin ATX ATX Black
Specifications
39 specifications in 8 groups
Power
| Specification | Value |
|---|---|
| Total power | 1200 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power Factor Correction (PFC) type | Active |
| Efficiency | 90% |
| Hold time | 16 ms |
| Power Good signal delay range | 100 - 150 ms |
| Power protection features | No load operation, Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush protection (SIP), Under voltage |

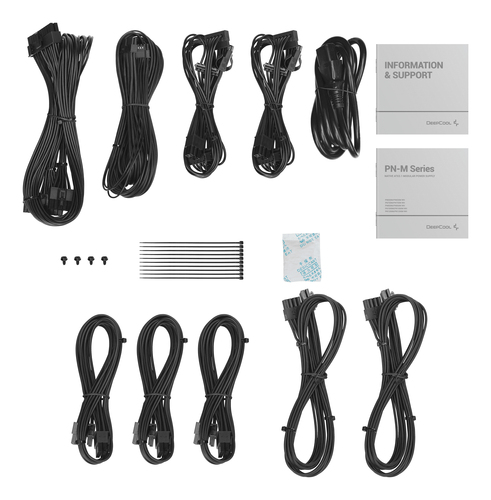

Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 55 cm |
| Number of SATA power connectors | 8 |
| SATA power cable length | 450,570,690,810 mm |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Peripheral (Molex) power cable length | 930 mm |
| PCI Express power connectors (6+2 pin) | 3 |
| PCI Express power connectors (16-pin) | 1 |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 70 cm |
| ATX power connector (20+4 pin) | Yes |
| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 3.1 |
| Bearing technology | FDB |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 13.5 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| On/off switch | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS, WEEE |
| Certification | CE/FCC/CCC/TUV-RH/cTUVus/RCM/EAC/BIS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 150 mm |
| Height | 86 mm |
Technical details
| Specification | Value |
|---|---|
| Sustainability certificates | ErP, Triman |
