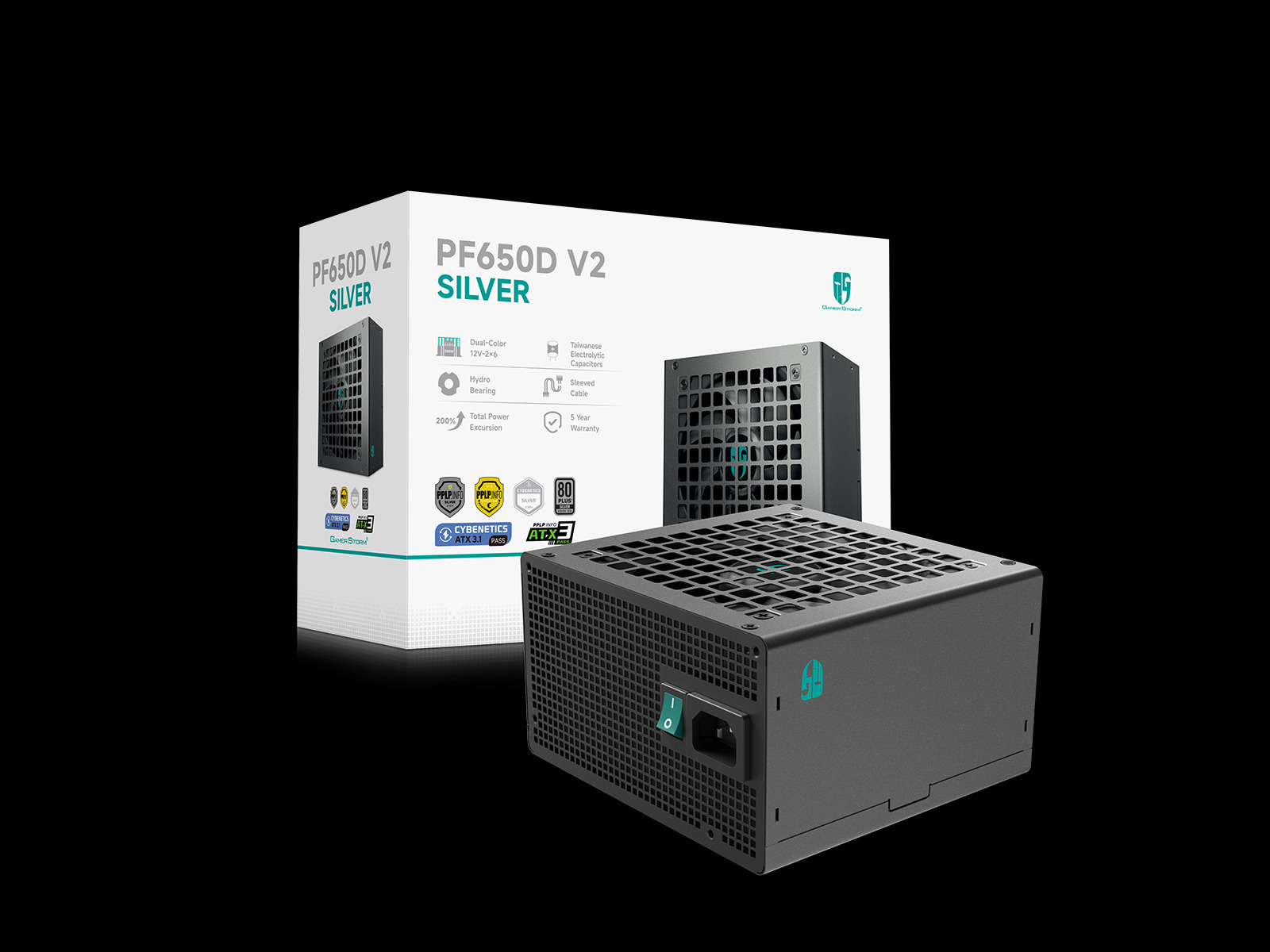

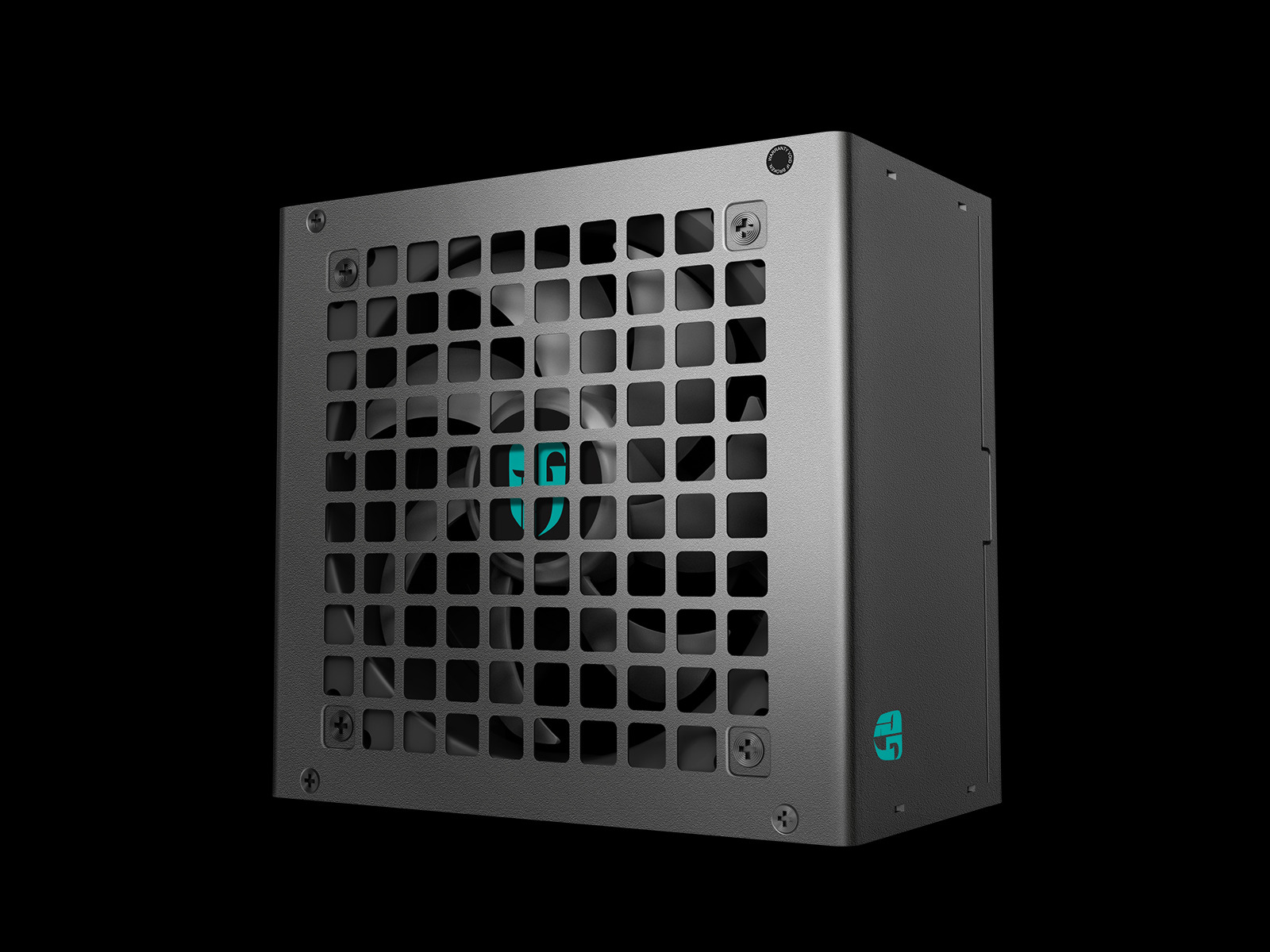

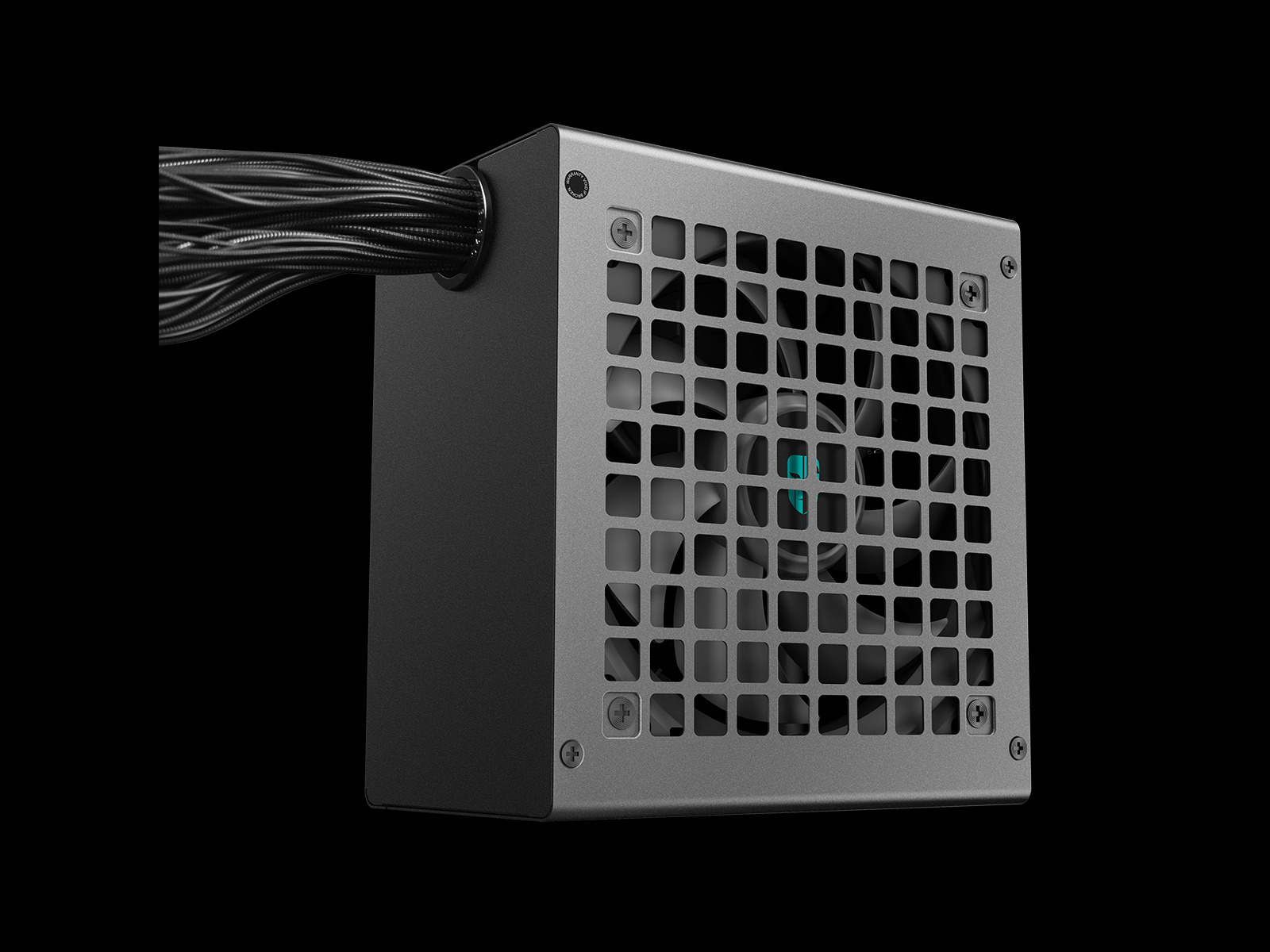

PF650D V2
Model PF650D V2Part no. R-PF650D-HF0B-JGEU-V2
37 specifications
- ColourBlack
- Total power650 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width120 mm
Overview
- Colour
- Black
- Total power
- 650 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 120 mm
- Brand
- Gamer Storm
- Category
- Power Supply Unit
- Model
- PF650D V2
- Part number
- R-PF650D-HF0B-JGEU-V2
- Also known as
- Gamer Storm PF650D V2 power supply unit 650 W 20+4 pin ATX ATX Black
Specifications
37 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 650 W |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 4 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 648 W |
| Combined power (+5V) | 15 W |
| Combined power (-12V) | 3.6 W |
| Max output current (+3.3V) | 15 A |
| Max output current (+12V) | 54 A |
| Max output current (+5V) | 15 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 90% |
| Power protection features | Over current, Over power, Over voltage, Overheating, Overload, Short circuit, Surge & inrush protection (SIP), Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|

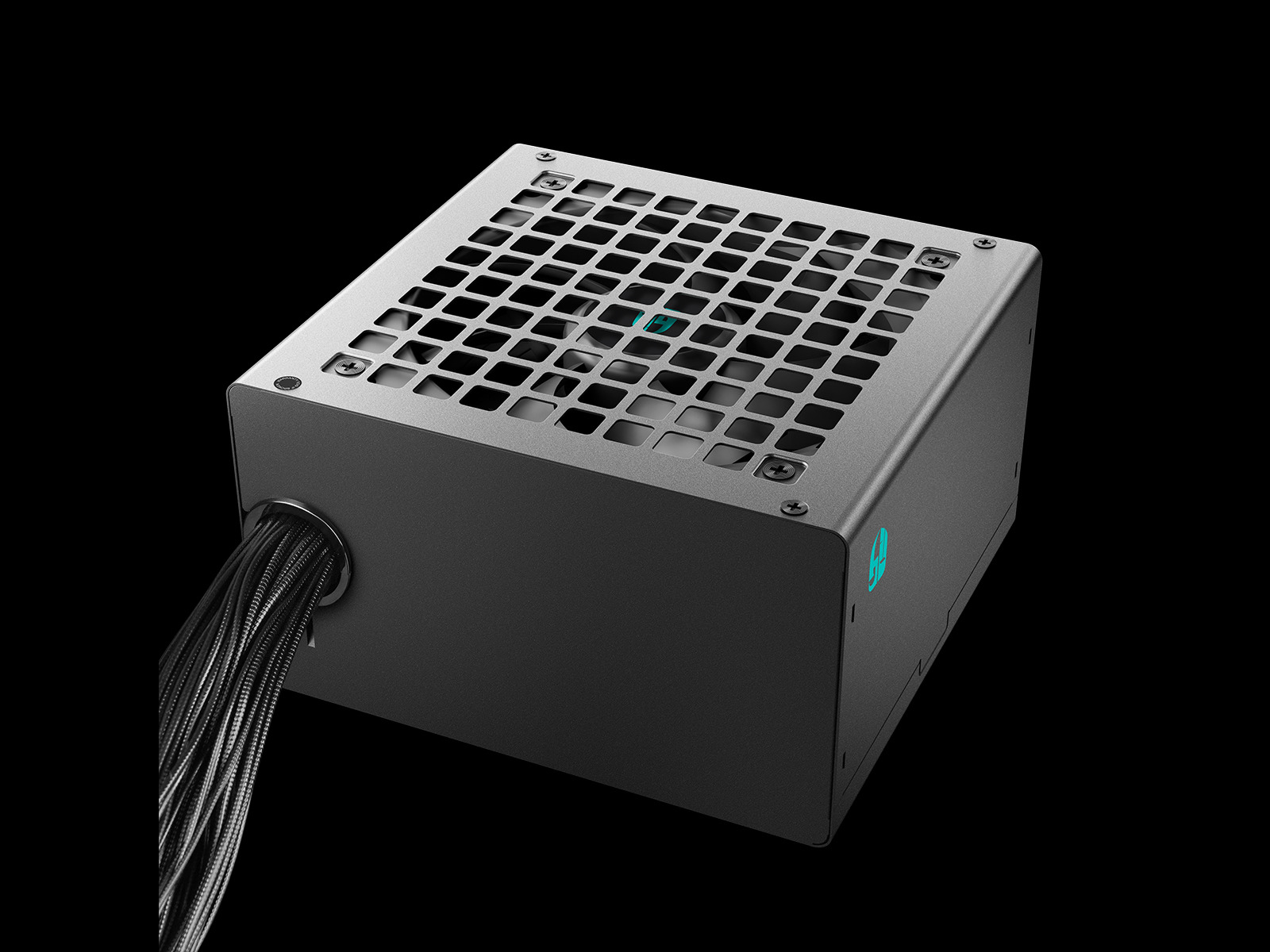

| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 55 cm |
| Number of SATA power connectors | 3 |
| SATA power cable length | 350 mm |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| PCI Express power connectors (6+2 pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 62 cm |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Silver |
| ATX version | 3.1 |
| Bearing technology | Hydro bearing |
Design
| Specification | Value |
|---|---|
| Product colour | Black |

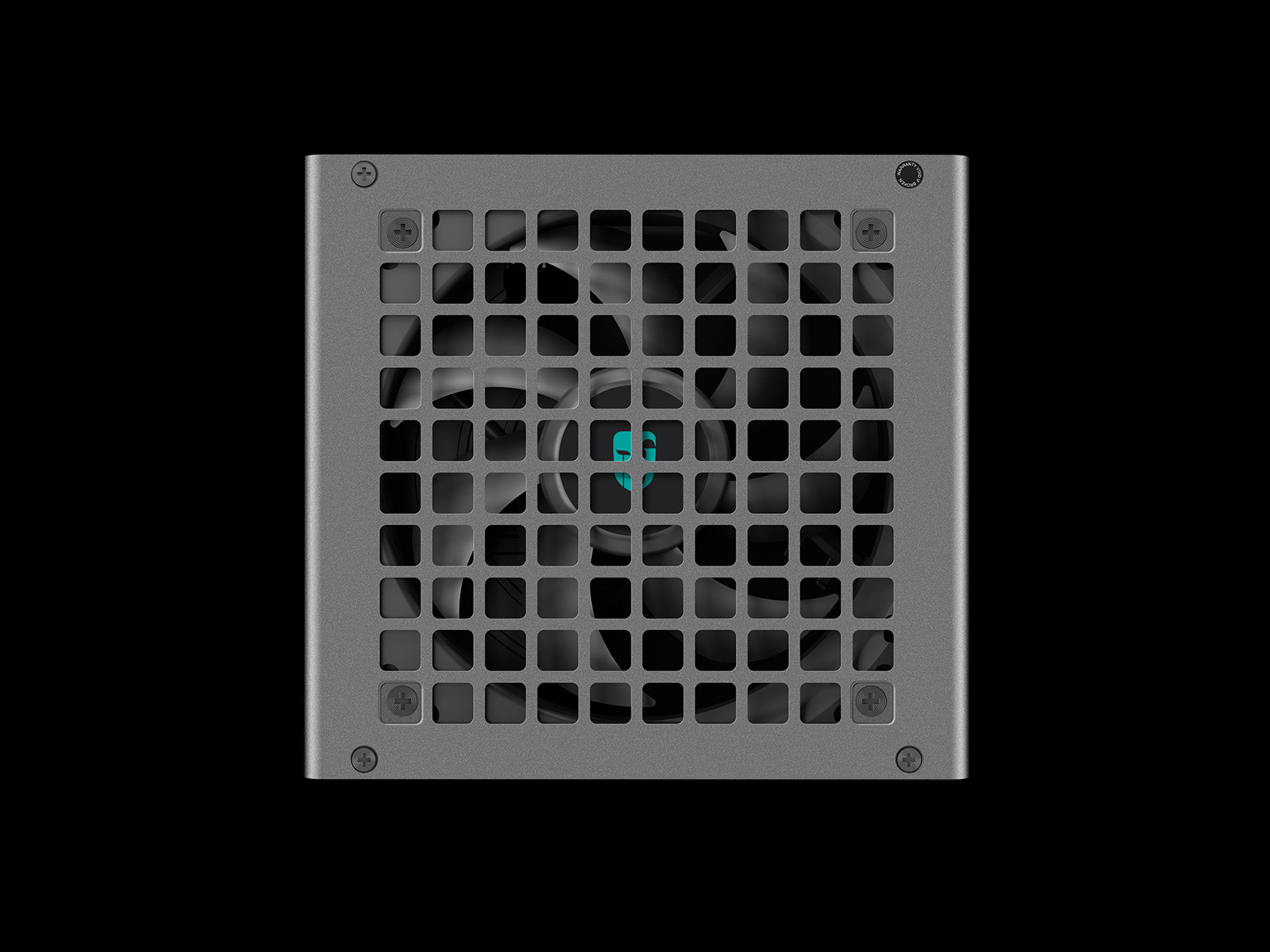

| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |

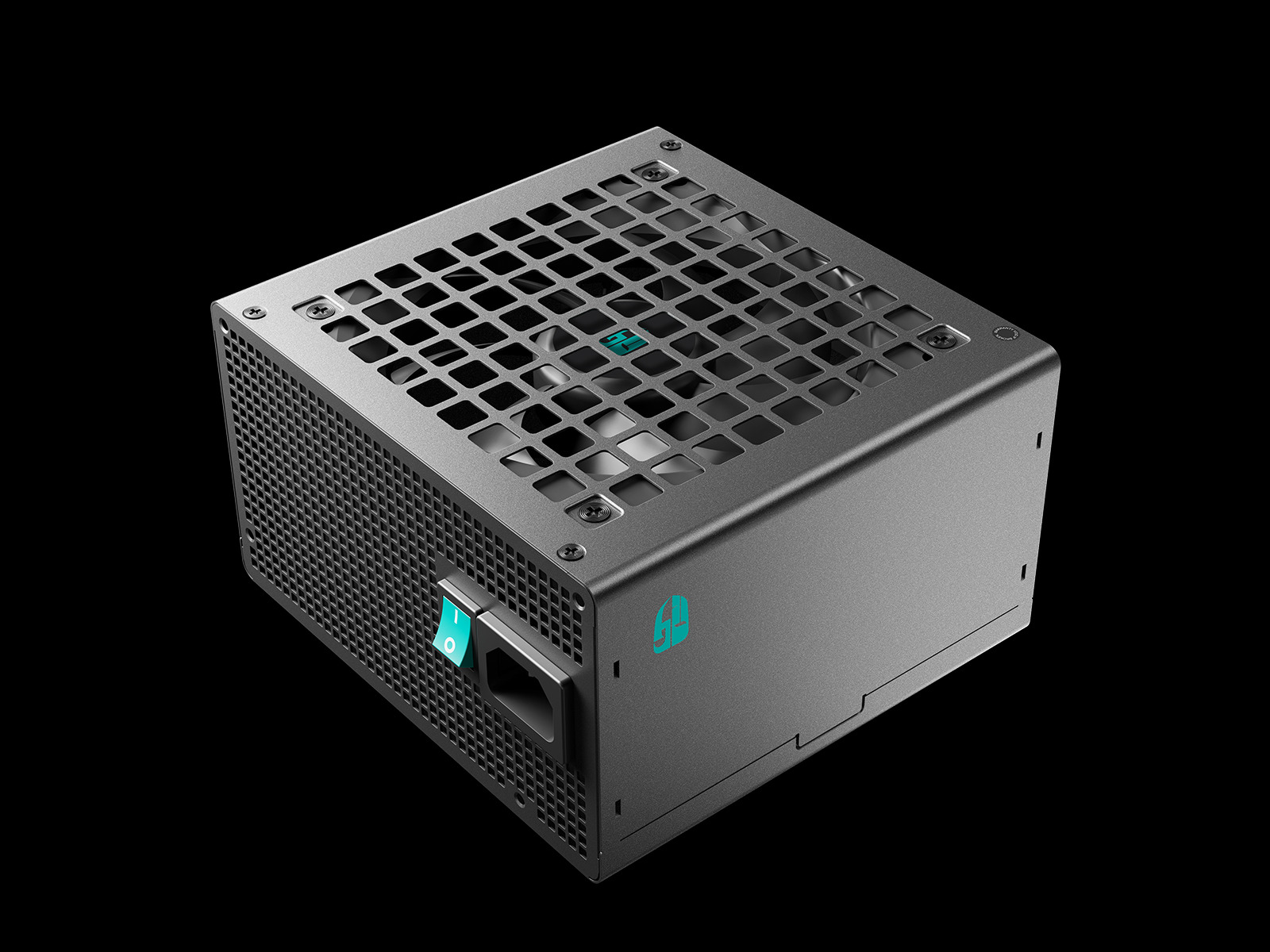

| On/off switch | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | 80PLUS 230V EU Silver / CYBENETICS 230V Silver / PPLP 230V Silver |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 120 mm |
| Depth | 140 mm |
| Height | 25 mm |
