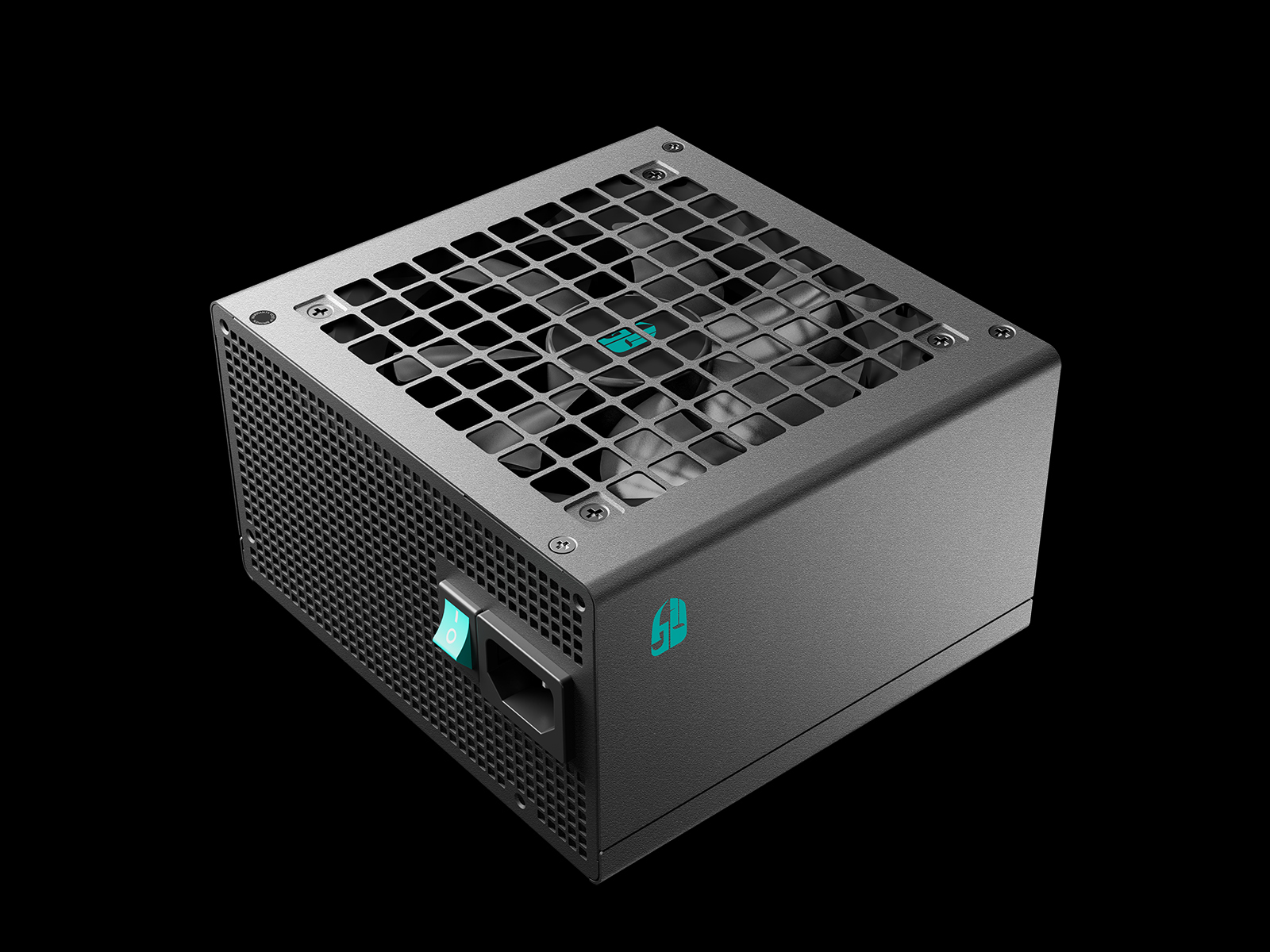

PF550X power supply unit
550 W 20+4 pin ATX ATX Black
Model PF550XPart no. R-PF550X-HD0B-JGEU
51 specifications
- ColourBlack
- Total power550 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Operating temperature (T-T)0 - 40 °C
- Width150 mm
Overview
- Colour
- Black
- Total power
- 550 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Operating temperature (T-T)
- 0 - 40 °C
- Width
- 150 mm
- Brand
- Gamer Storm
- Category
- Power Supply Unit
- Model
- PF550X
- Part number
- R-PF550X-HD0B-JGEU
- Also known as
- Gamer Storm PF550X power supply unit 550 W 20+4 pin ATX ATX Black
Specifications
51 specifications in 10 groups
Power
| Specification | Value |
|---|---|
| Total power | 550 W |
| AC input voltage | 180 - 264 V |
| AC input frequency | 50/60 Hz |
| Input current | 5 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 546 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 16 A |
| Max output current (+12V) | 45.5 A |
| Max output current (+5V) | 16 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 88% |
| Power protection features | Over power, Over voltage, Over current, Short circuit, Overheating, Under voltage, Surge & inrush protection (SIP), Surge & inrush, No load operation |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 55 cm |
| Number of SATA power connectors | 3 |
| SATA power cable length | 450,600,750 mm |
| Number of SATA power cables | 1 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Peripheral (Molex) power cable length | 900 mm |
| PCI Express power connectors (6+2 pin) | 2 |
| PCI Express power cable length | 70 cm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 62 cm |
| ATX power connector (20+4 pin) | Yes |
| PCI Express connector | Yes |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Bronze |
| Cybenetics certification | Bronze |
| ATX version | 2.52 |
| Bearing technology | HYB |
| Mean time between failures (MTBF) | 40000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |

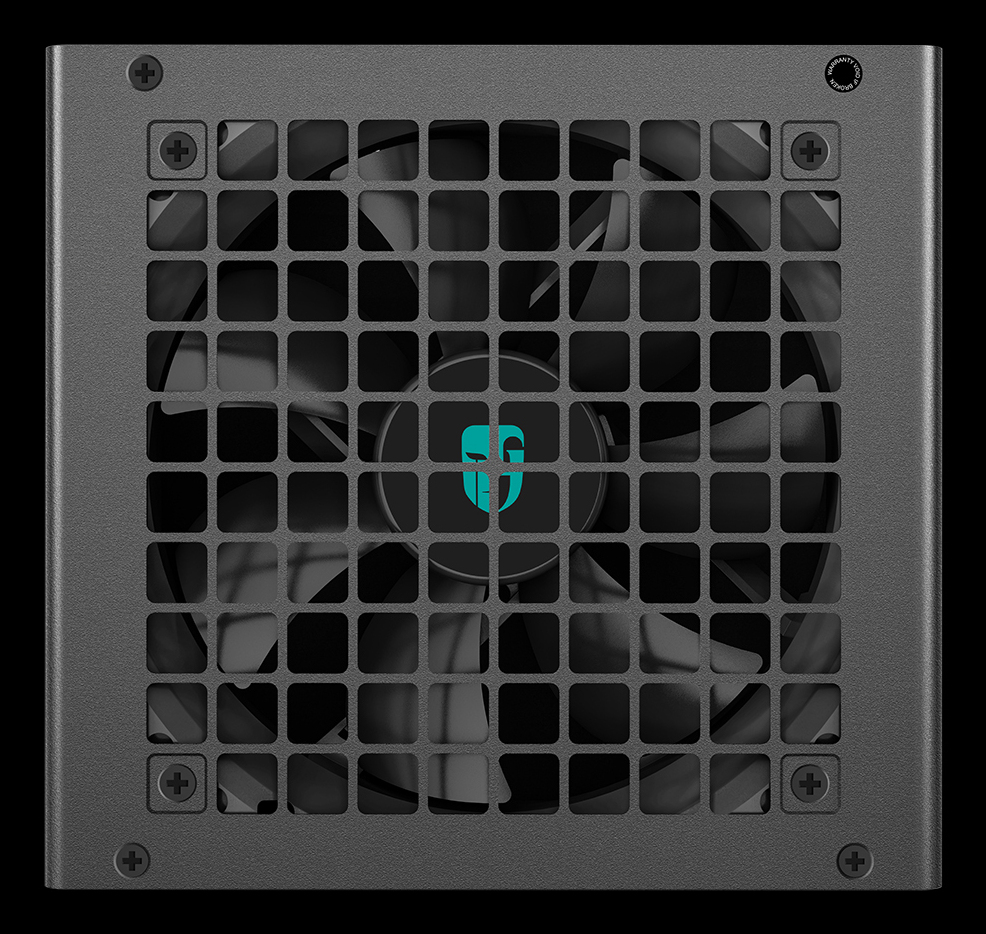

| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | TÜV mark, CE, CCC, RCM, KC, EAC, WEEE, RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
Technical details
| Specification | Value |
|---|---|
| Sustainability certificates | ErP, Triman |
Logistics data
| Specification | Value |
|---|---|
| Warranty period | 3 year(s) |
