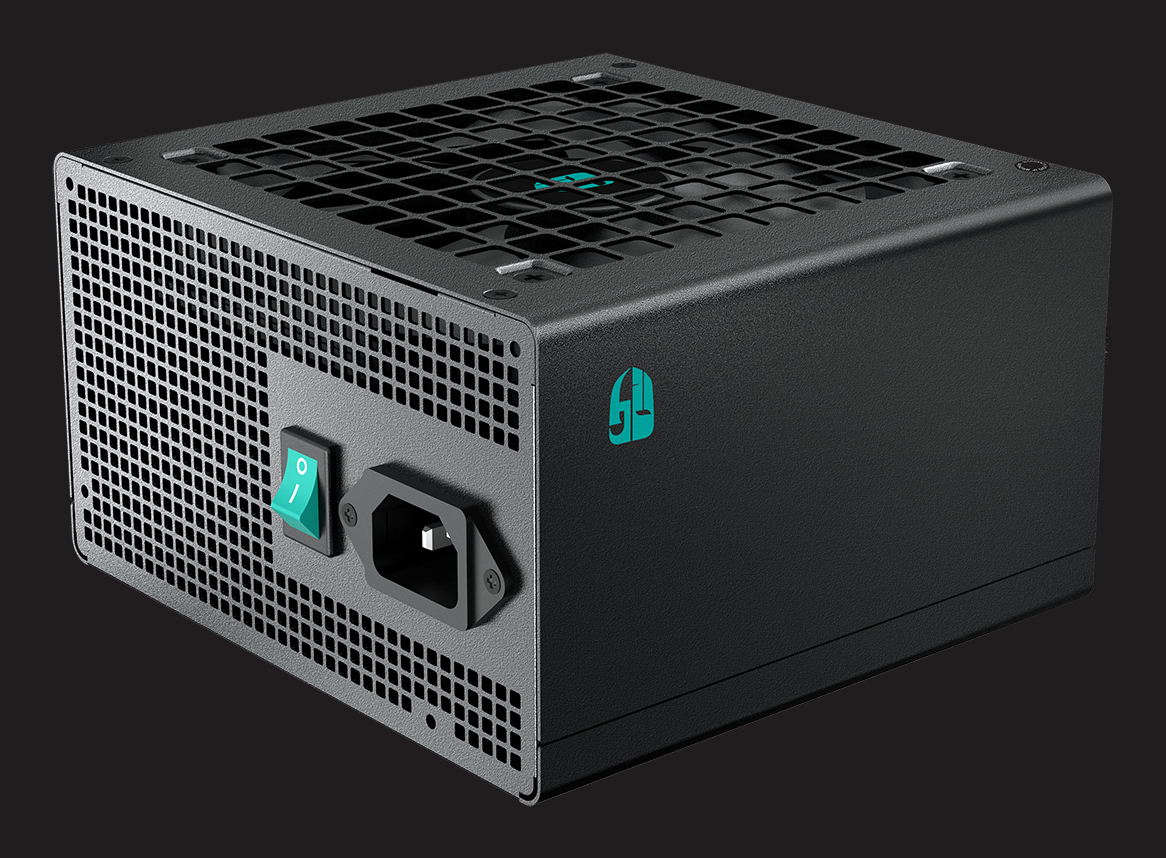

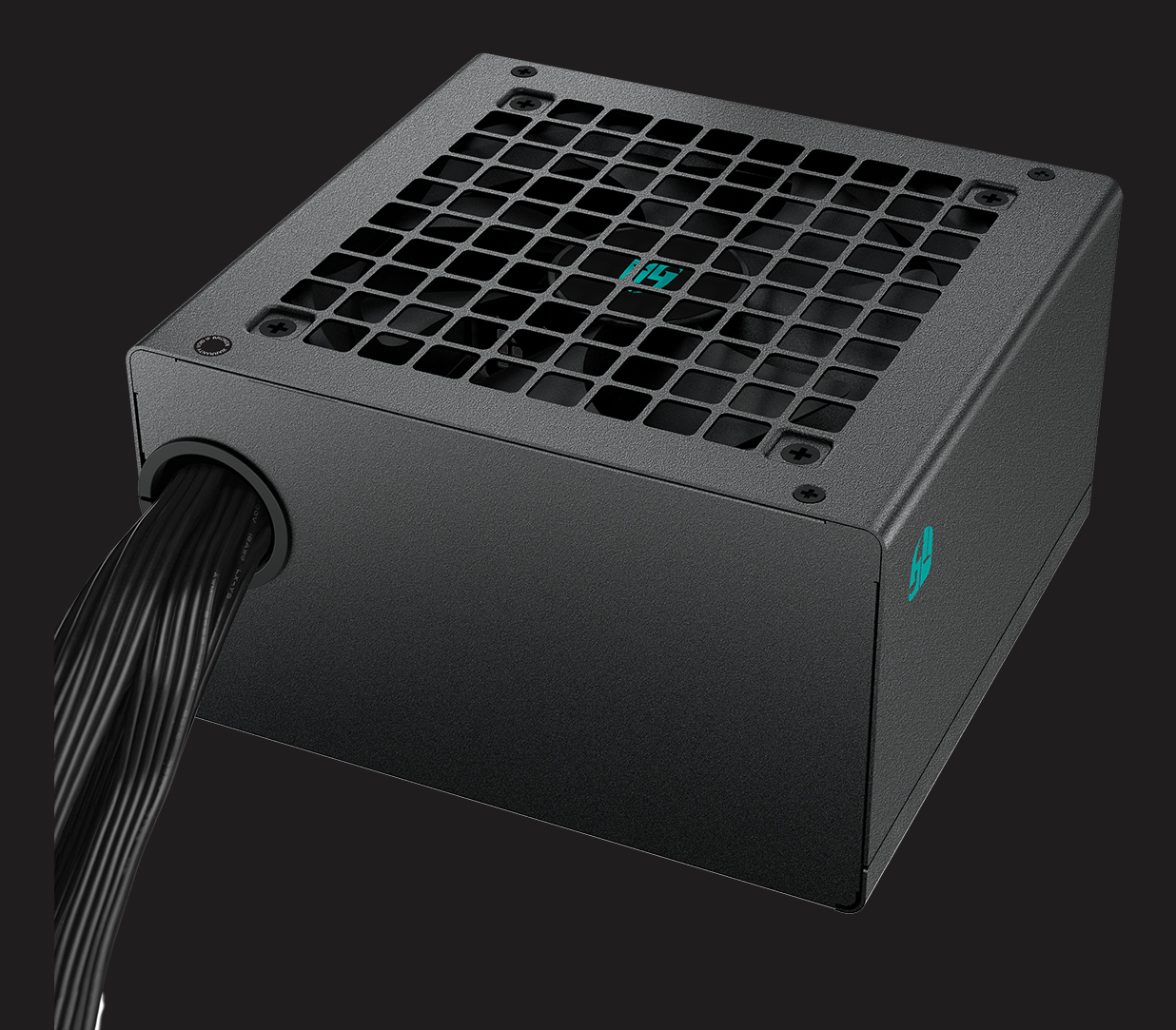

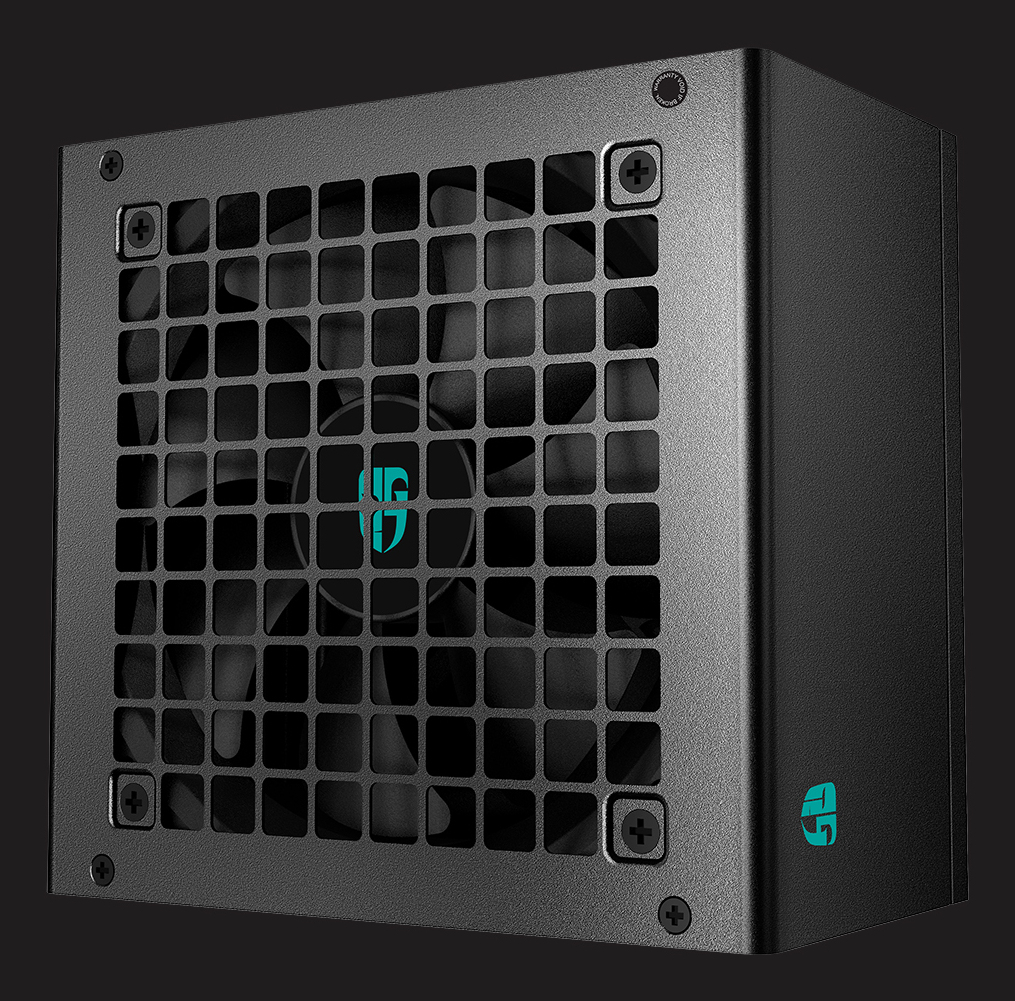

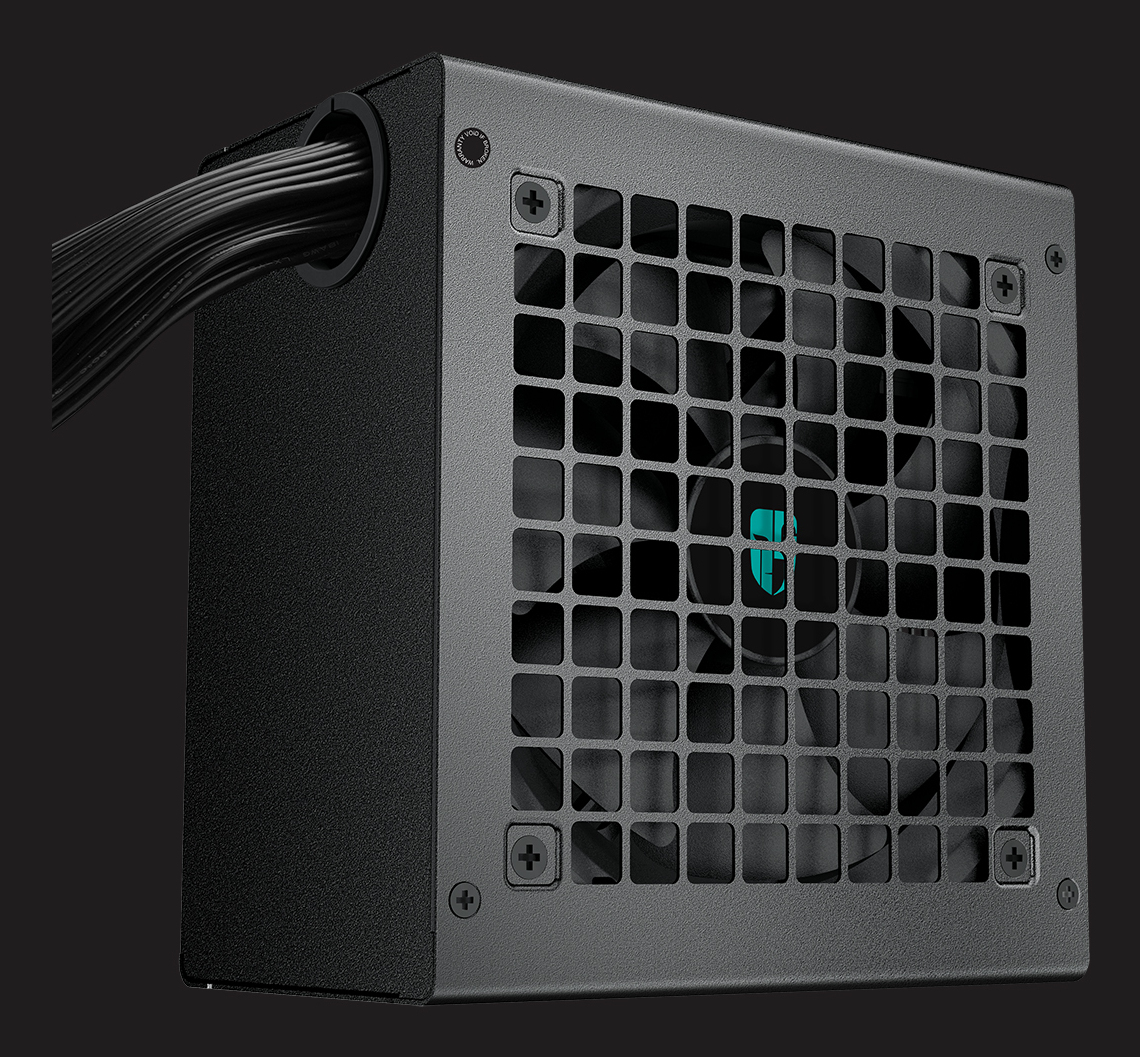

PF550L power supply unit
550 W 20+4 pin ATX ATX Black
Model PF550LPart no. R-PF550L-HE0B-JGEU
54 specifications
- ColourBlack
- Total power550 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Operating temperature (T-T)0 - 40 °C
- Width150 mm
Overview
- Colour
- Black
- Total power
- 550 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Operating temperature (T-T)
- 0 - 40 °C
- Width
- 150 mm
- Brand
- Gamer Storm
- Category
- Power Supply Unit
- Model
- PF550L
- Part number
- R-PF550L-HE0B-JGEU
- Also known as
- Gamer Storm PF550L power supply unit 550 W 20+4 pin ATX ATX Black
Specifications
54 specifications in 12 groups
Power
| Specification | Value |
|---|---|
| Total power | 550 W |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 4 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 504 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 15 A |
| Max output current (+12V) | 42 A |
| Max output current (+5V) | 15 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 85% |
| Hold time | 16 ms |
| Power protection features | No load operation, Over power, Over voltage, Short circuit, Surge & inrush protection (SIP), Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 50 cm |
| Number of SATA power connectors | 2 |
| SATA power cable length | 400,520,640 mm |
| Number of SATA power cables | 2 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Peripheral (Molex) power cable length | 640 mm |
| PCI Express power connectors (6+2 pin) | 1 |
| PCI Express power cable length | 65 cm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 74 cm |
| ATX power connector (20+4 pin) | Yes |
| PCI Express connector | Yes |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS White |
| ATX version | 2.31 |
| Bearing technology | Sleeve |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |

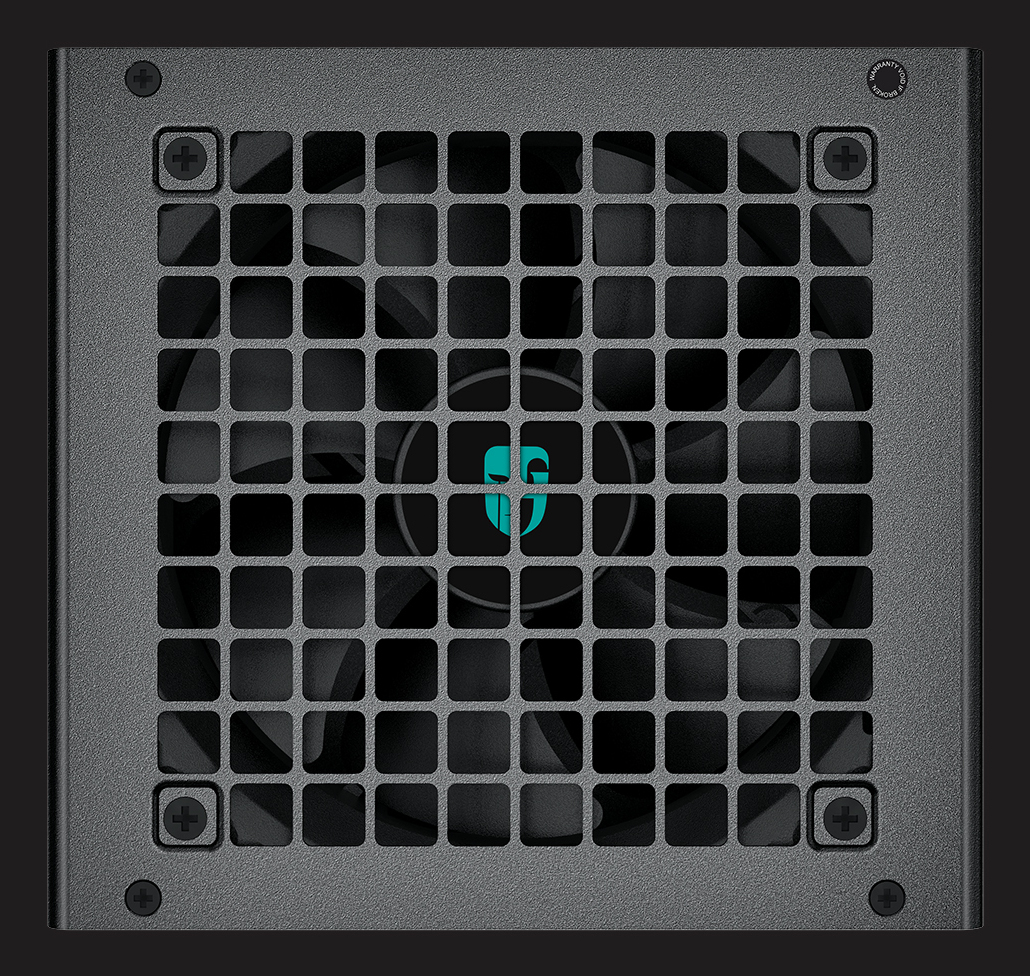

| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| On/off switch | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |

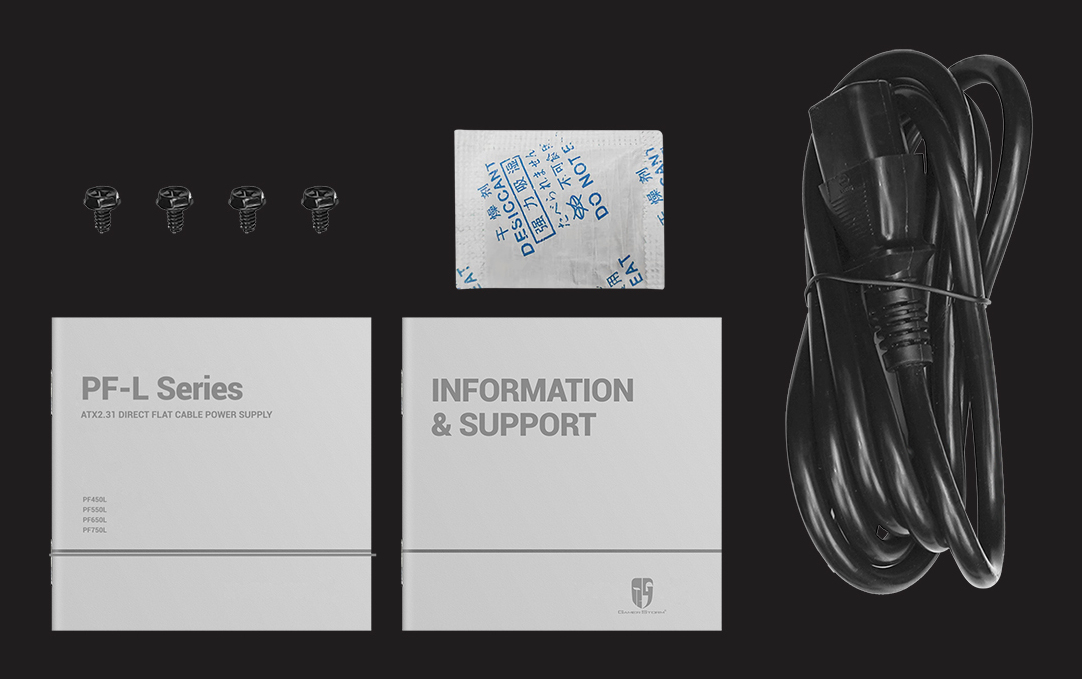

Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CCC, CE, KC, RCM, TÜV mark, WEEE |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
Technical details
| Specification | Value |
|---|---|
| Sustainability certificates | ErP, Triman |
Logistics data
| Specification | Value |
|---|---|
| Warranty period | 3 year(s) |
Other features
| Specification | Value |
|---|---|
| Screws included | Yes |
