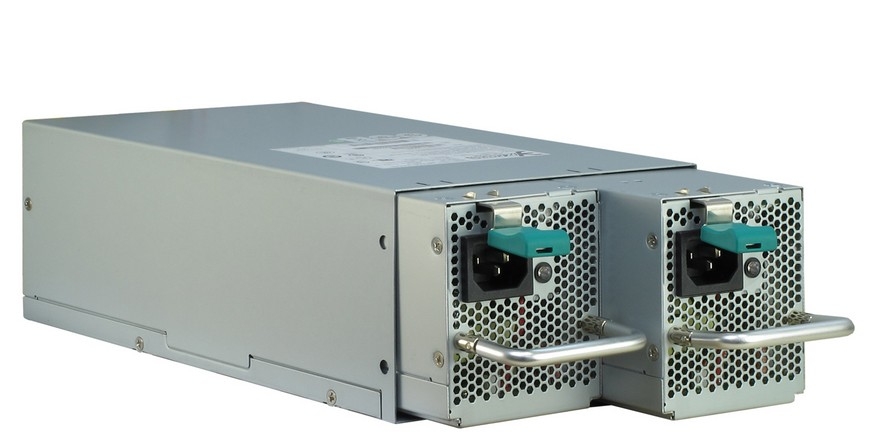

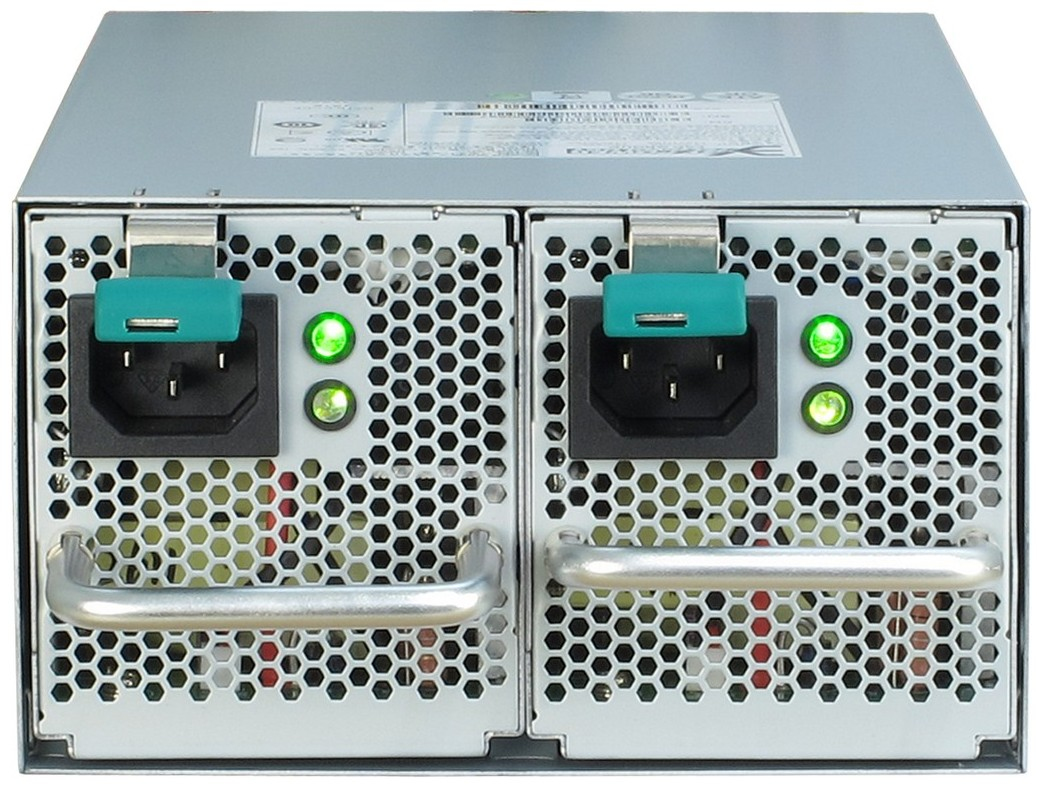

FSP YH8611-1AAR power supply unit
620 W 20+4 pin ATX ATX Grey
Model YH8611-1AAR
32 specifications
- ColourGrey
- Total power620 W
- Motherboard power connector20+4 pin ATX
- PurposeServer
- Width150 mm
Overview
- Colour
- Grey
- Total power
- 620 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- Server
- Width
- 150 mm
- Brand
- FSP
- Category
- Power Supply Unit
- Model
- YH8611-1AAR
- Part number
- YH8611-1AAR
- Also known as
- FSP YH8611-1AAR power supply unit 620 W 20+4 pin ATX ATX Grey
Specifications
32 specifications in 5 groups
Power
| Specification | Value |
|---|---|
| Total power | 620 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 10 A |
| Maximum input current (@110V) | +12V1,+12V2,+12V3,+12V4,+3.3V,+5V,+5Vsb,-12V |
| Power Factor Correction (PFC) type | Active |
| Max output current (+3.3V) | 24 A |
| Max output current (+12V1) | 16 A |
| Max output current (+12V2) | 16 A |
| Max output current (+12V3) | 16 A |
| Max output current (+12V4) | 16 A |
| Max output current (+5V) | 24 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over current, Overheating, Overload, Short circuit |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 4 |
| Peripheral (Molex) power connectors (4-pin) | 6 |
| PCI Express power connectors (6-pin) | 1 |
| CPU power connector (4+4 pin) | Yes |
| ATX power connector (20+4 pin) | Yes |
| Floppy drive power connector | 2 |
Performance
| Specification | Value |
|---|---|
| Purpose | Server |
| Power supply unit (PSU) form factor | ATX |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
| Cooling type | Active |
| Fan diameter | 6 cm |
| Number of fans | 2 fan(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 295 mm |
| Height | 86 mm |
