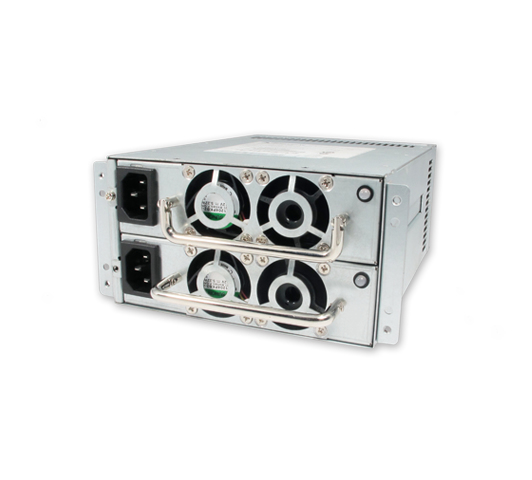

FSP YH5651-1TA02R power supply unit
650 W Grey
Model YH5651-1TA02R
22 specifications
- ColourGrey
- Total power650 W
- PurposeServer
- Operating temperature (T-T)0 - 50 °C
- Width150 mm
Overview
- Colour
- Grey
- Total power
- 650 W
- Purpose
- Server
- Operating temperature (T-T)
- 0 - 50 °C
- Width
- 150 mm
- Brand
- FSP
- Category
- Power Supply Unit
- Model
- YH5651-1TA02R
- Part number
- YH5651-1TA02R
- Also known as
- FSP YH5651-1TA02R power supply unit 650 W Grey
Specifications
22 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 650 W |
| AC input voltage | 90 - 264 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 10 A |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 52.9 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 4 A |
| Hold time | 16 ms |
Performance
| Specification | Value |
|---|---|
| Purpose | Server |
| 80 PLUS certification | 80 PLUS Gold |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
| Cooling type | Active |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 85% |
Certificates
| Specification | Value |
|---|---|
| Certification | CB, CE |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 200 mm |
| Height | 84 mm |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
