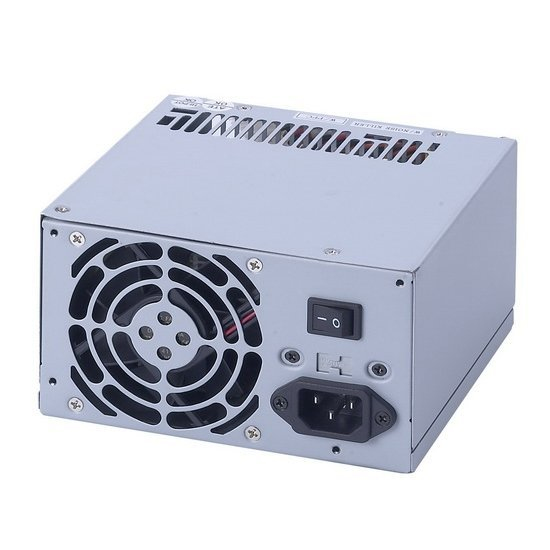

FSP TX-350PAF power supply unit
350 W 20+4 pin ATX ATX Grey
Model TX-350PAFPart no. 9PX3504703
33 specifications
- ColourGrey
- Total power350 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width140 mm
Overview
- Colour
- Grey
- Total power
- 350 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 140 mm
- Brand
- FSP
- Category
- Power Supply Unit
- Model
- TX-350PAF
- Part number
- 9PX3504703
- Also known as
- FSP TX-350PAF power supply unit 350 W 20+4 pin ATX ATX Grey
Specifications
33 specifications in 5 groups
Power
| Specification | Value |
|---|---|
| Total power | 350 W |
| AC input voltage | 230 V |
| Maximum input current (@110V) | +12V1,+12V2,+3.3V,+5V,+5Vsb,-12V |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 130 W |
| Combined power (+12V) | 300 W |
| Combined power (+5V) | 130 W |
| Max output current (+3.3V) | 22 A |
| Max output current (+12V1) | 18 A |
| Max output current (+12V2) | 16 A |
| Max output current (+5V) | 21 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Power protection features | Over voltage, Overload, Short circuit |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 2 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| CPU P4 connector (4-pin) | 1 |
| ATX power connector (20+4 pin) | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 2.2 |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
| Cooling type | Active |
| Fan diameter | 8 cm |
| Number of fans | 1 fan(s) |
| Fan location | Side |
| On/off switch | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 140 mm |
| Depth | 86 mm |
| Height | 150 mm |
