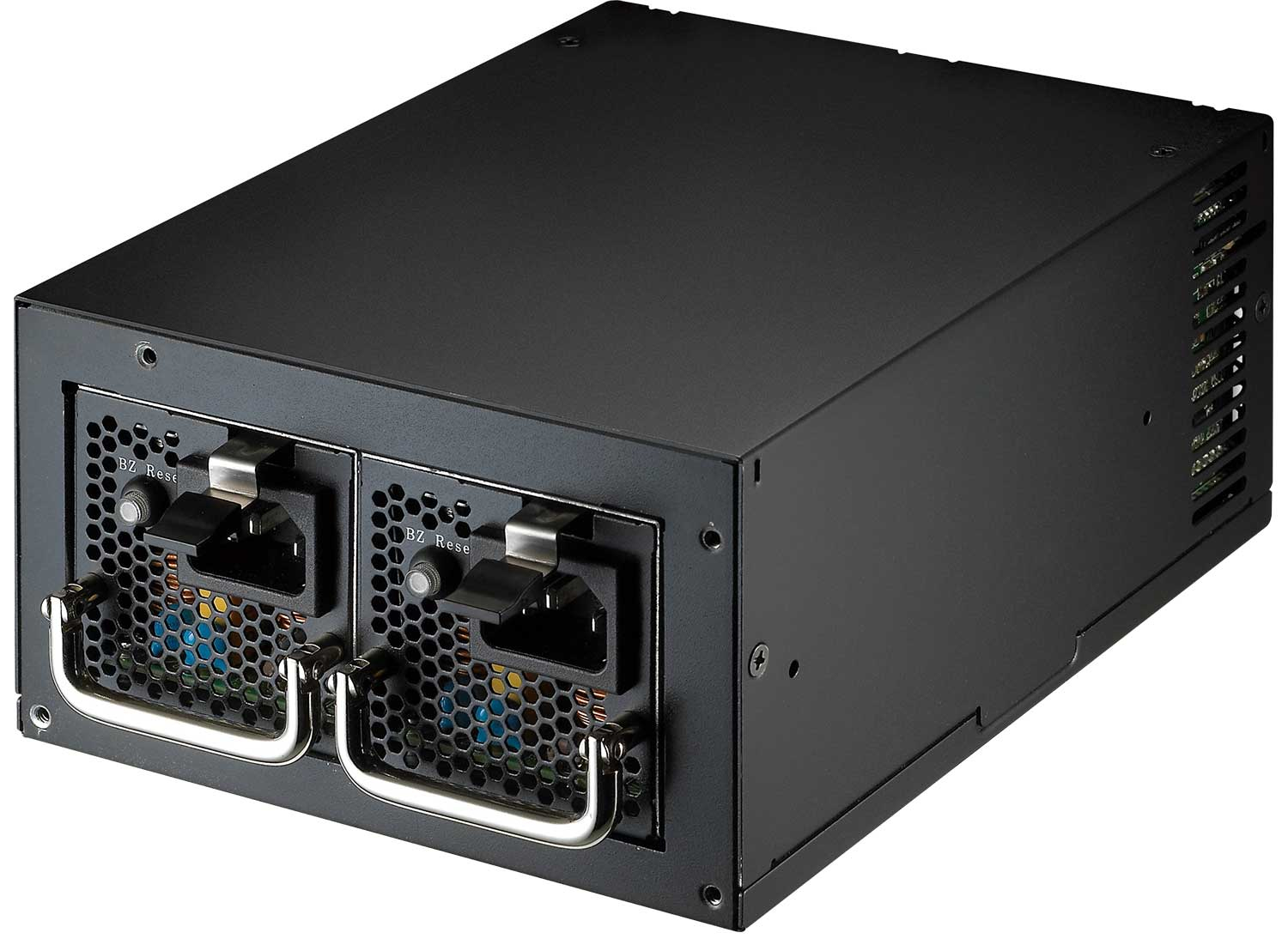

FSP Twins power supply unit
500 W 24-pin ATX Black
Model TwinsPart no. PPA5007101EAN 4711140483115
37 specifications
- ColourBlack
- Total power500 W
- Motherboard power connector24-pin ATX
- PurposeServer
- Width150 mm
Overview
- Colour
- Black
- Total power
- 500 W
- Motherboard power connector
- 24-pin ATX
- Purpose
- Server
- Width
- 150 mm
- Brand
- FSP
- Category
- Power Supply Unit
- Model
- Twins
- Part numbers
- PPA5007101, PPA7003800, FSP700-50RGHBE1
- EAN / UPC
- 4711140483115, 4713224520488
- Also known as
- FSP Twins power supply unit 500 W 24-pin ATX Black
Specifications
37 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 500 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 8 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 130 W |
| Combined power (+5V) | 130 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V1) | 16 A |
| Max output current (+12V2) | 16 A |
| Max output current (+12V3) | 16 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 90% |
| Power protection features | Over current, Over voltage, Short circuit |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| PCI Express power connectors (6+2 pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| Floppy disk drive connector | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | Server |
| 80 PLUS certification | 80 PLUS Gold |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 4 cm |
| Number of fans | 2 fan(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 190 mm |
| Height | 86 mm |
Packaging data
| Specification | Value |
|---|---|
| Manual | Yes |
| Package type | Box |
Other features
| Specification | Value |
|---|---|
| Warranty card | Yes |

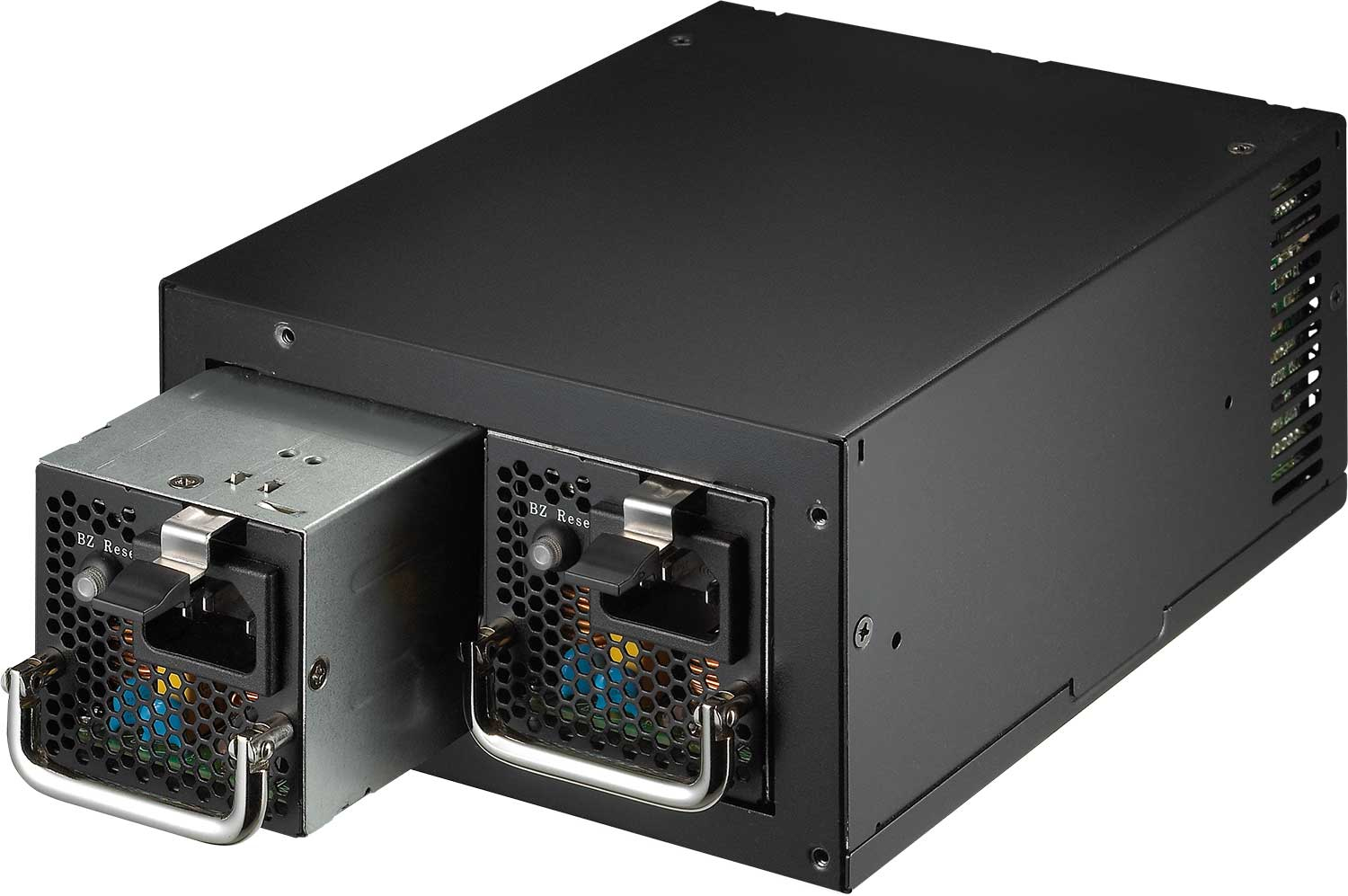

| Redundant power supply (RPS) support | Yes |
