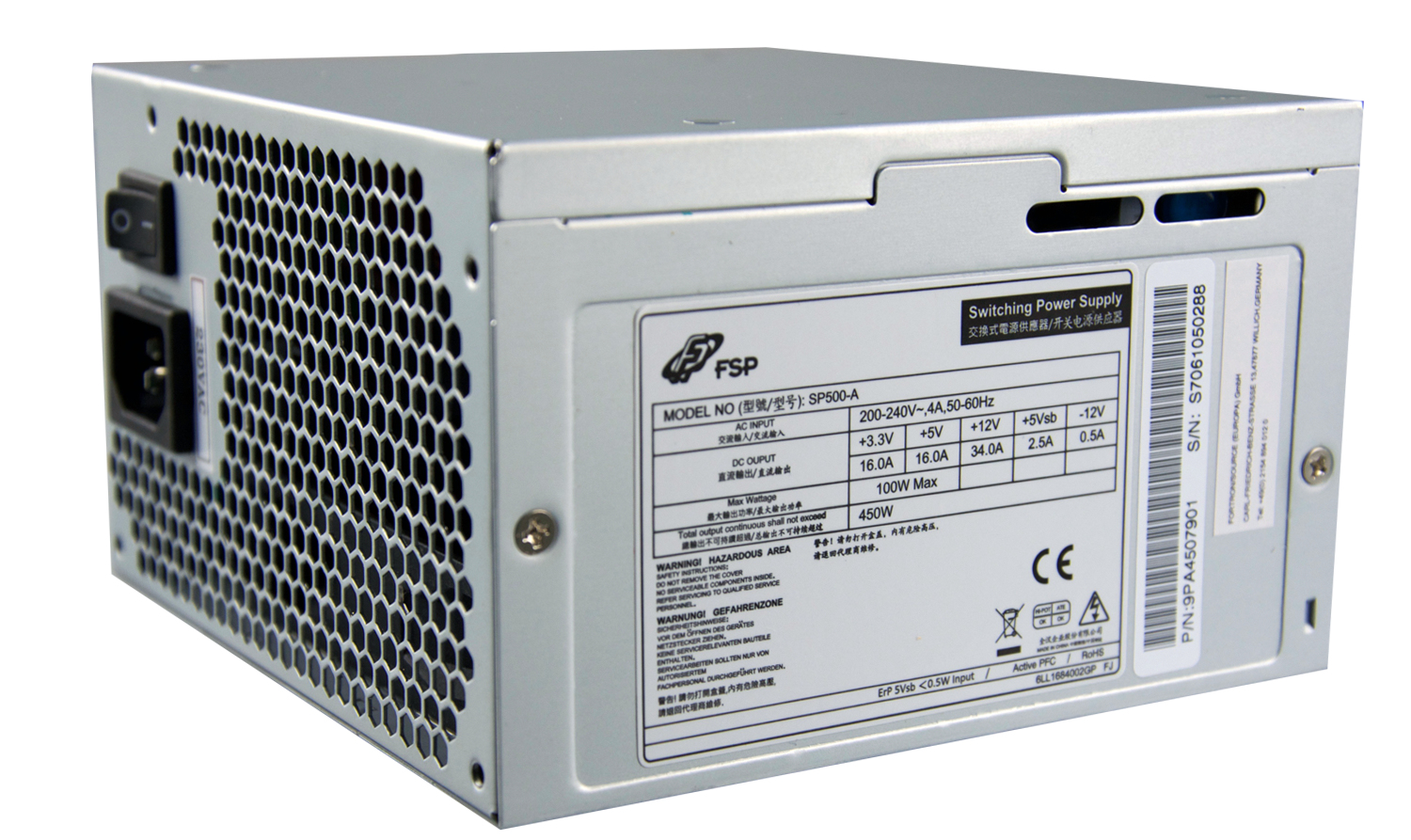

SP500-A power supply unit
450 W 24-pin ATX ATX
Model SP500-APart no. 9PA450AB00
39 specifications
- Noise25.6 dB
- Total power450 W
- Motherboard power connector24-pin ATX
- PurposePC
- Cooling typeActive
- Width150 mm
Overview
- Noise
- 25.6 dB
- Total power
- 450 W
- Motherboard power connector
- 24-pin ATX
- Purpose
- PC
- Cooling type
- Active
- Width
- 150 mm
- Brand
- FSP
- Category
- Power Supply Unit
- Model
- SP500-A
- Part number
- 9PA450AB00
- Also known as
- FSP SP500-A power supply unit 450 W 24-pin ATX ATX
Specifications
39 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 450 W |
| Peak power | 500 W |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 3 A |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 408 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 16.1 W |
| Combined power (+5Vsb) | 16.1 W |
| Max output current (+3.3V) | 16 A |
| Max output current (+12V1) | 34 A |
| Max output current (+5V) | 16 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 85% |
| Power protection features | Over current, Over voltage, Short circuit |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 4 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| PCI Express power connectors (6-pin) | 1 |
| PCI Express power connectors (6+2 pin) | 1 |
| CPU P4 connector (4-pin) | 1 |
| CPU power connector (4+4 pin) | Yes |
| Floppy disk drive connector | Yes |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | No |
| ATX version | 2.3 |
| Noise level | 25.6 dB |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Number of fans | 1 fan(s) |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
