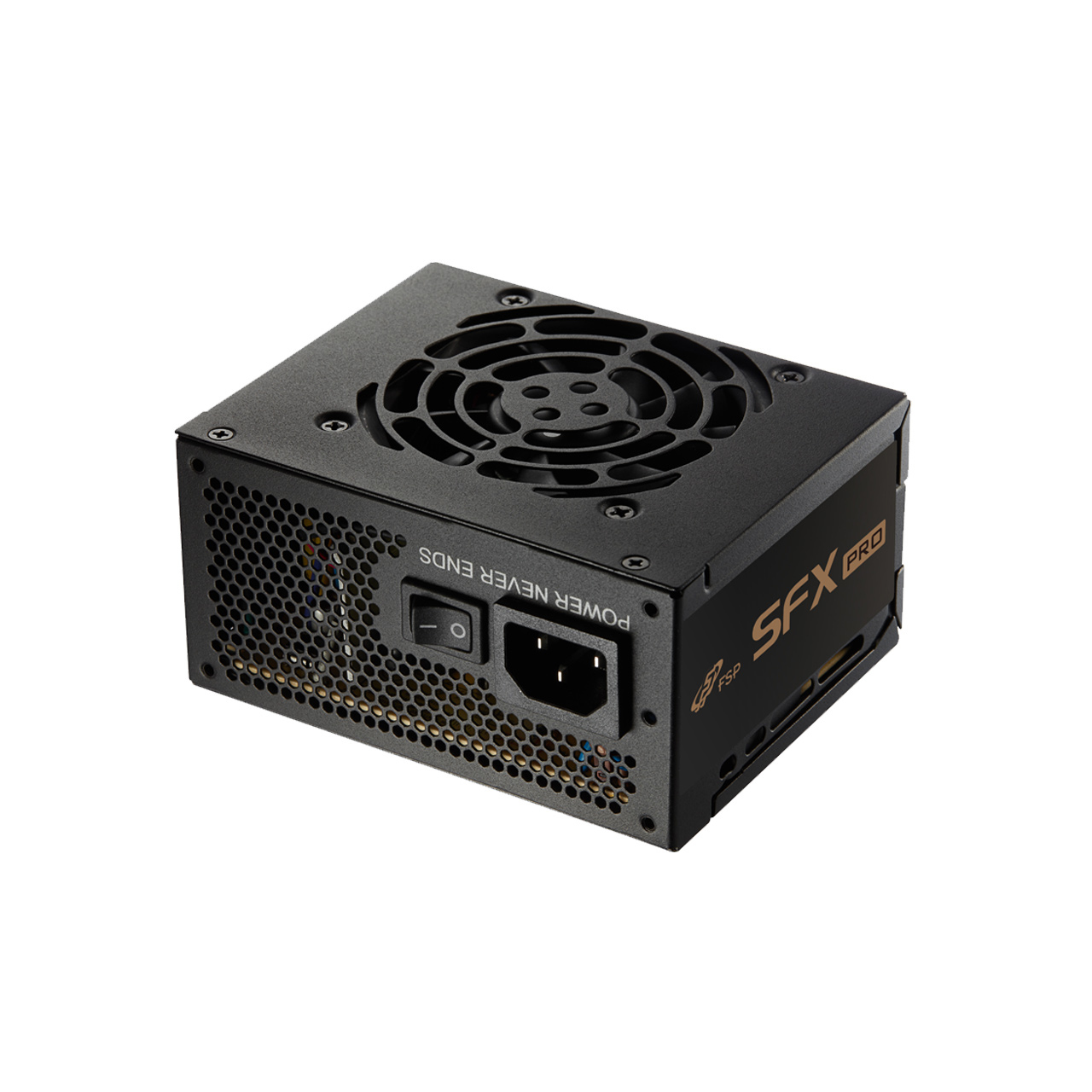

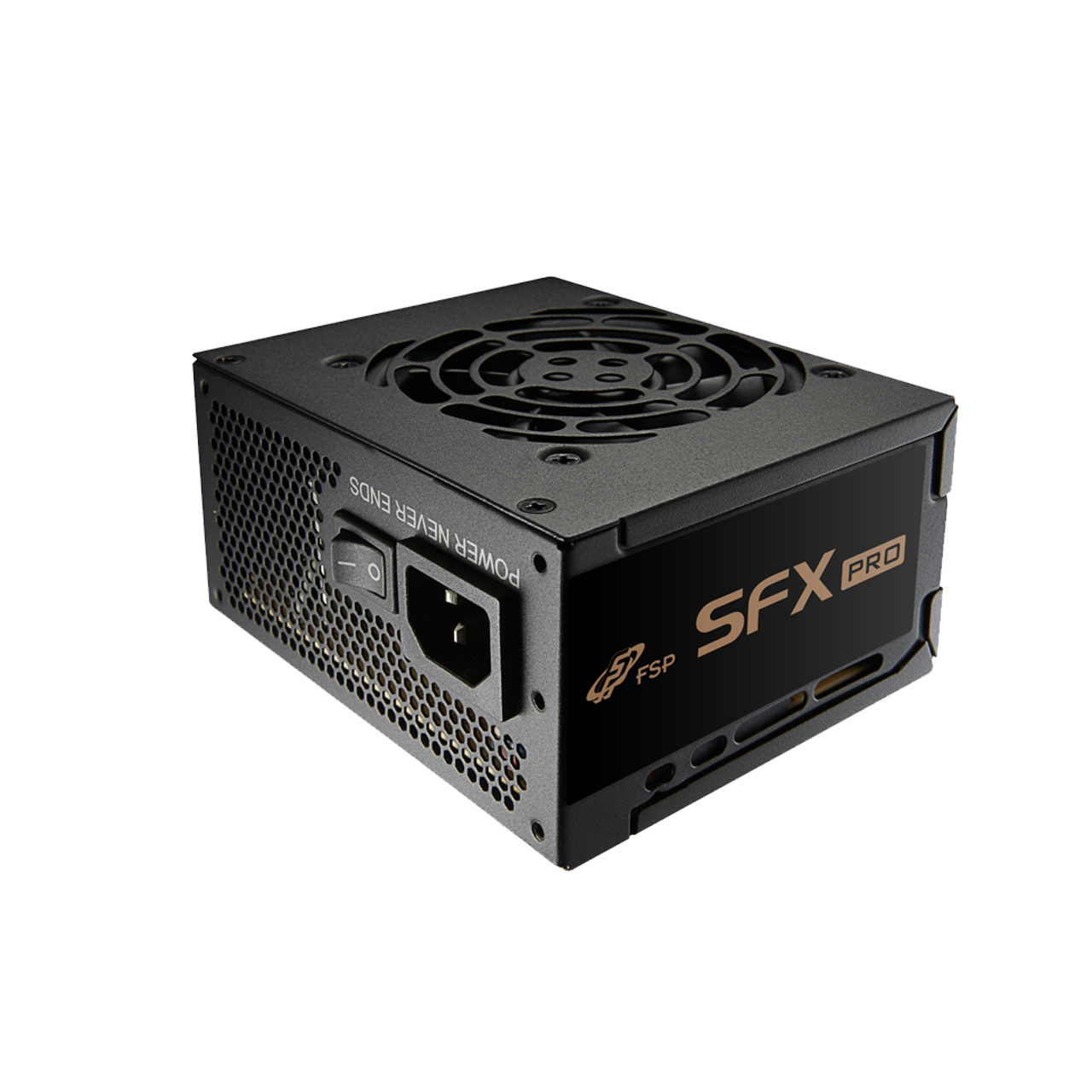

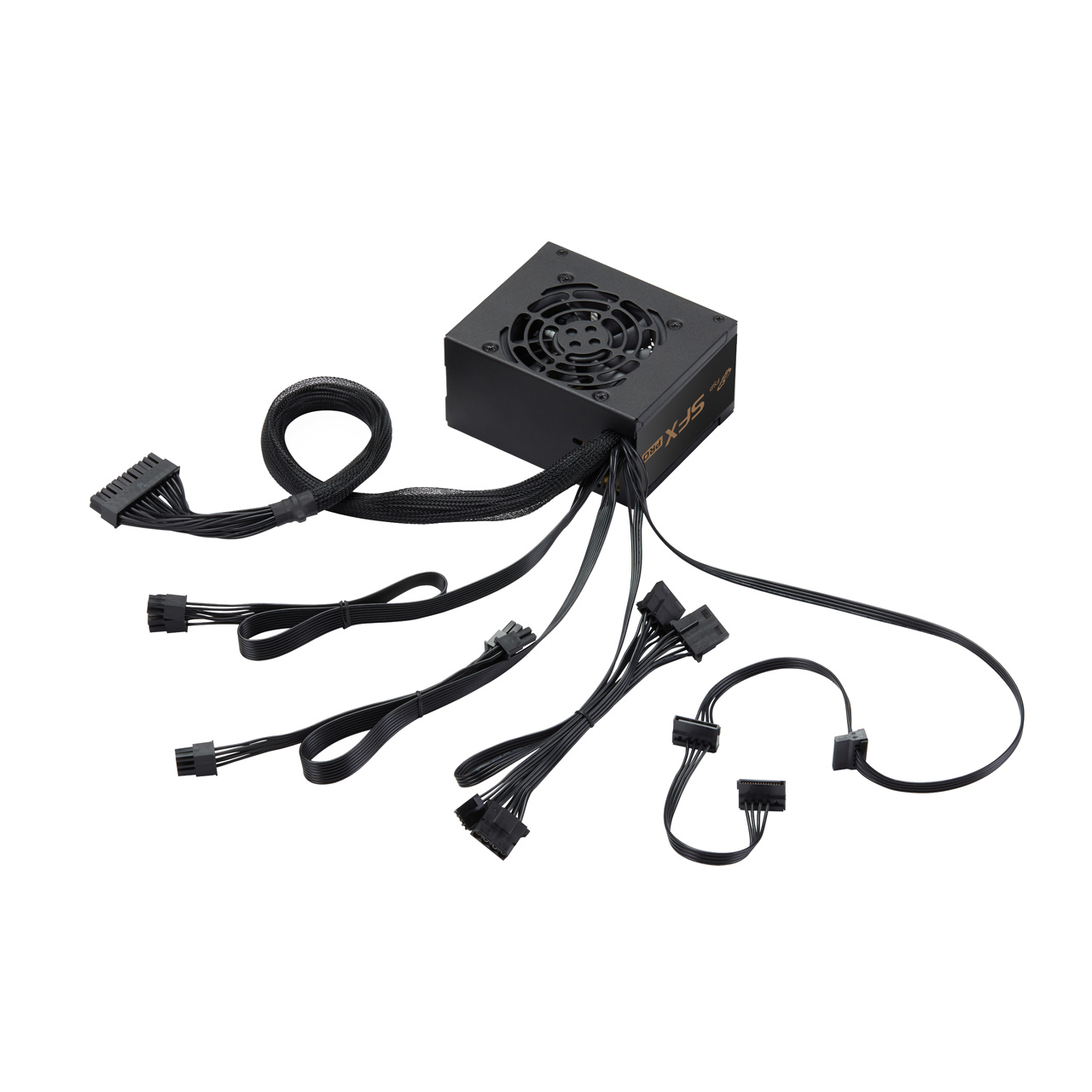

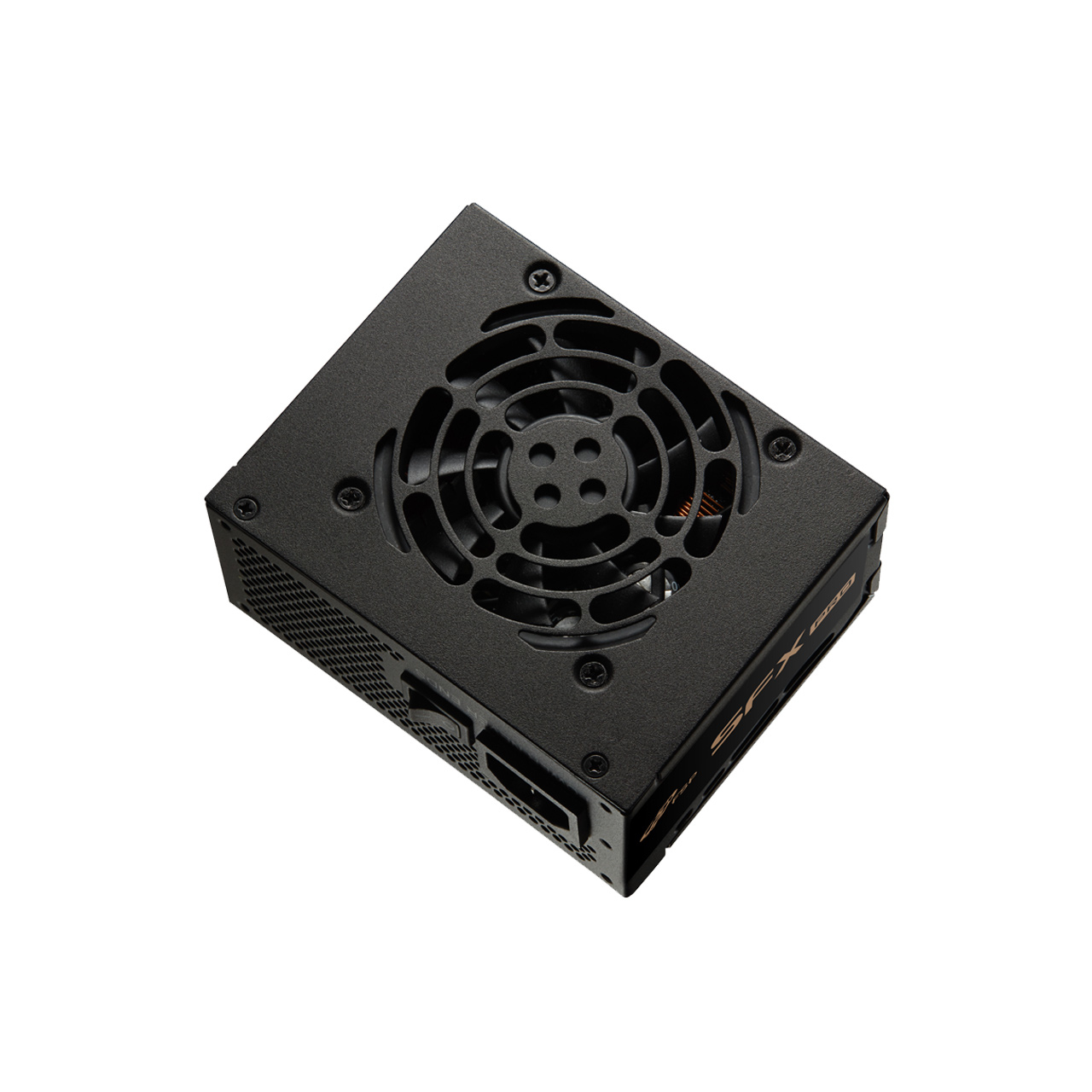

SFX PRO 450W
Model SFX PRO 450WPart no. PPA450AA00EAN 4713224522123
43 specifications
- Noise43 dB
- Weight1.22 kg
- ColourBlack
- Total power450 W
- Motherboard power connector24-pin ATX
- PurposePC
Overview
- Noise
- 43 dB
- Weight
- 1.22 kg
- Colour
- Black
- Total power
- 450 W
- Motherboard power connector
- 24-pin ATX
- Purpose
- PC
- Brand
- FSP
- Category
- Power Supply Unit
- Model
- SFX PRO 450W
- Part number
- PPA450AA00
- EAN / UPC
- 4713224522123
- Also known as
- FSP SFX PRO 450W Power supply unit SFX SFX3.3 Black
Specifications
43 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 450 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum input current (@110V) | 6 A |
| Maximum input current (@220V) | 2.5 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 85 W |
| Combined power (+12V) | 450 W |
| Combined power (+5V) | 85 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 16 A |
| Max output current (+12V) | 37.5 A |
| Max output current (+5V) | 16 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 85% |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 3 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| PCI Express power connectors (6+2 pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| Floppy disk drive connector | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | SFX |
| 80 PLUS certification | 80 PLUS Bronze |
| Noise level | 43 dB |
| Bearing technology | Rifle |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 8 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| On/off switch | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 100 mm |
| Depth | 125 mm |
| Height | 63 mm |
| Weight | 1.22 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
