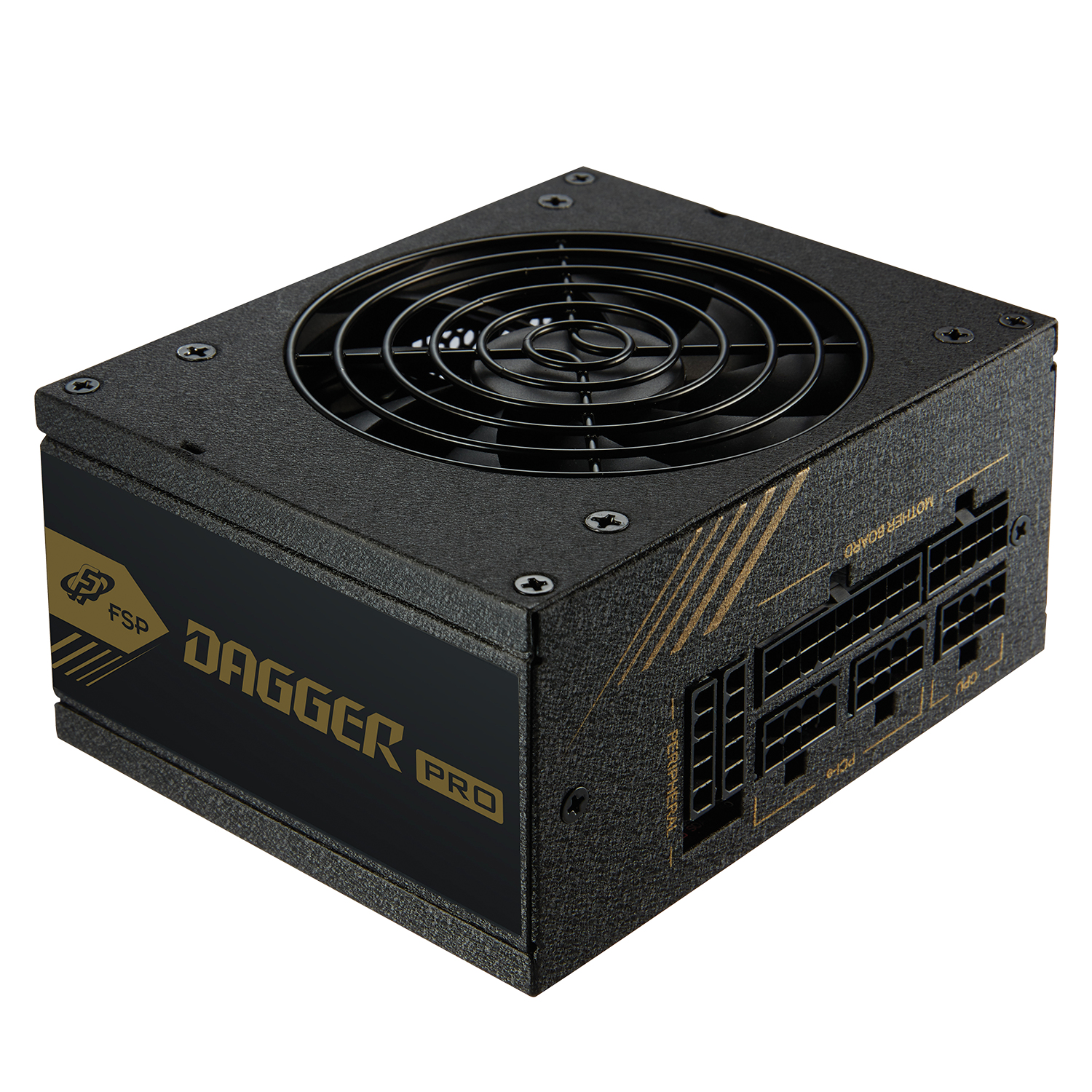

SDA2-750 power supply unit
750 W SFX Black
Model SDA2-750
29 specifications
- ColourBlack
- Total power750 W
- Cabling typeFully-Modular
- PurposePC
- Width100 mm
Overview
- Colour
- Black
- Total power
- 750 W
- Cabling type
- Fully-Modular
- Purpose
- PC
- Width
- 100 mm
- Brand
- FSP
- Category
- Power Supply Unit
- Model
- SDA2-750
- Part number
- SDA2-750
- Also known as
- FSP SDA2-750 power supply unit 750 W SFX Black
Specifications
29 specifications in 5 groups
Power
| Specification | Value |
|---|---|
| Total power | 750 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 10 - 6 A |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 750 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 62.5 A |
| Max output current (+5V) | 22 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 90% |
| Power protection features | Over current, Over power, Over voltage, Short circuit |
Ports & interfaces
| Specification | Value |
|---|---|
| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | SFX |
| 80 PLUS certification | 80 PLUS Gold |
| Supported motherboard form factors | ATX, Mini-ITX, micro ATX |
| Mean time between failures (MTBF) | 200000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 9.2 cm |
| Number of fans | 1 fan(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 100 mm |
| Depth | 125 mm |
| Height | 63.5 mm |
