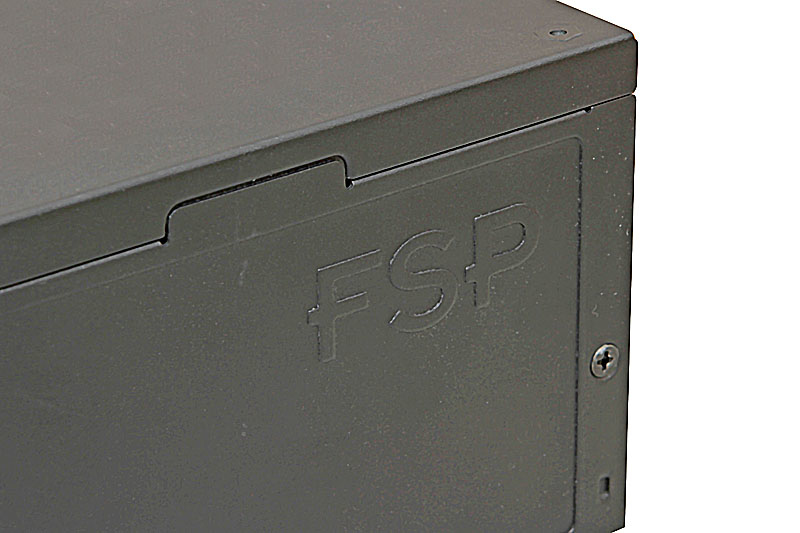

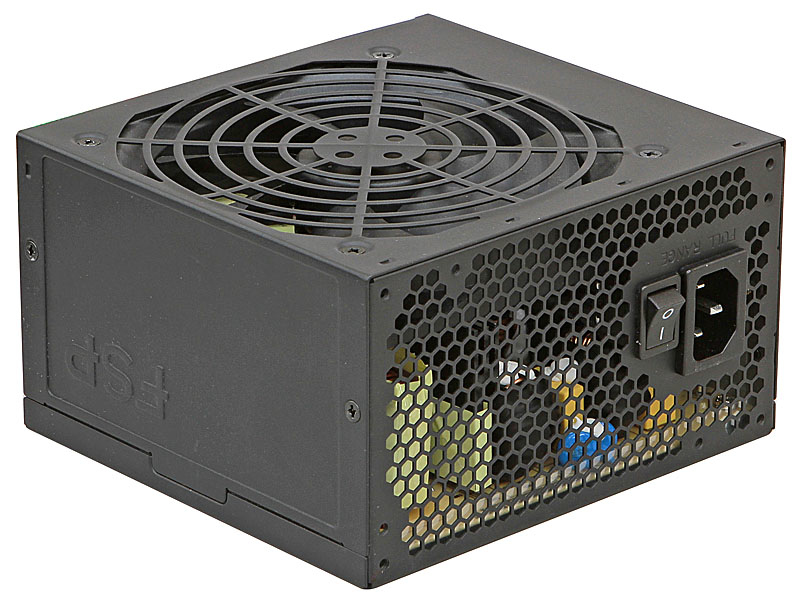

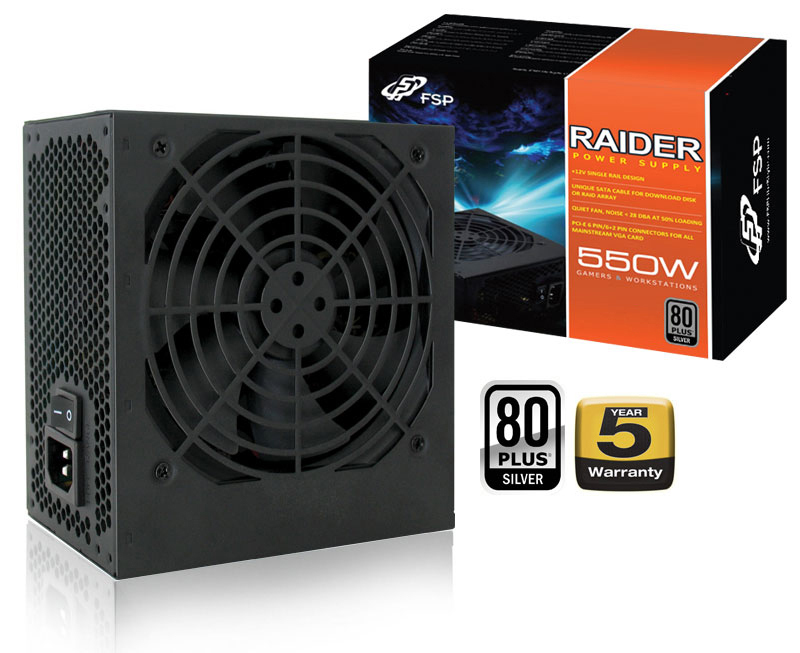

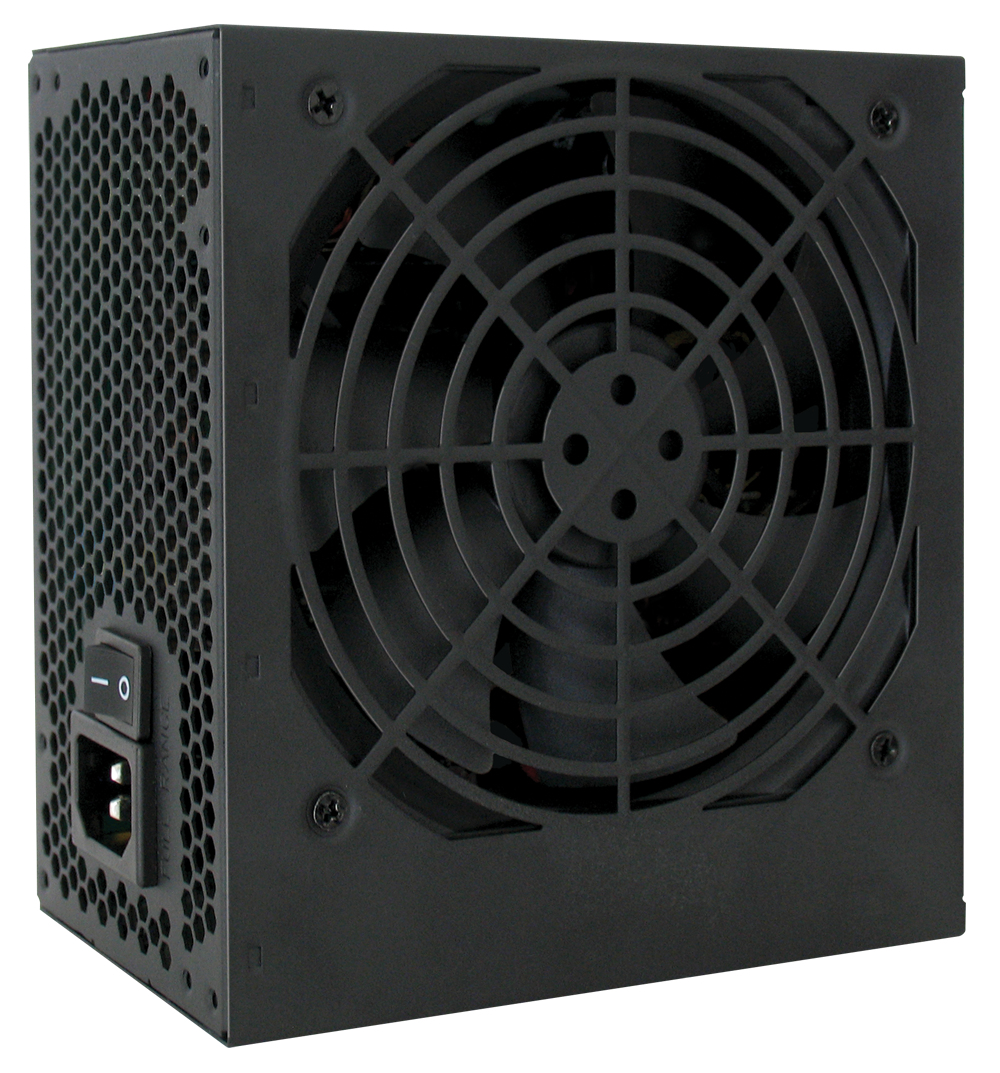

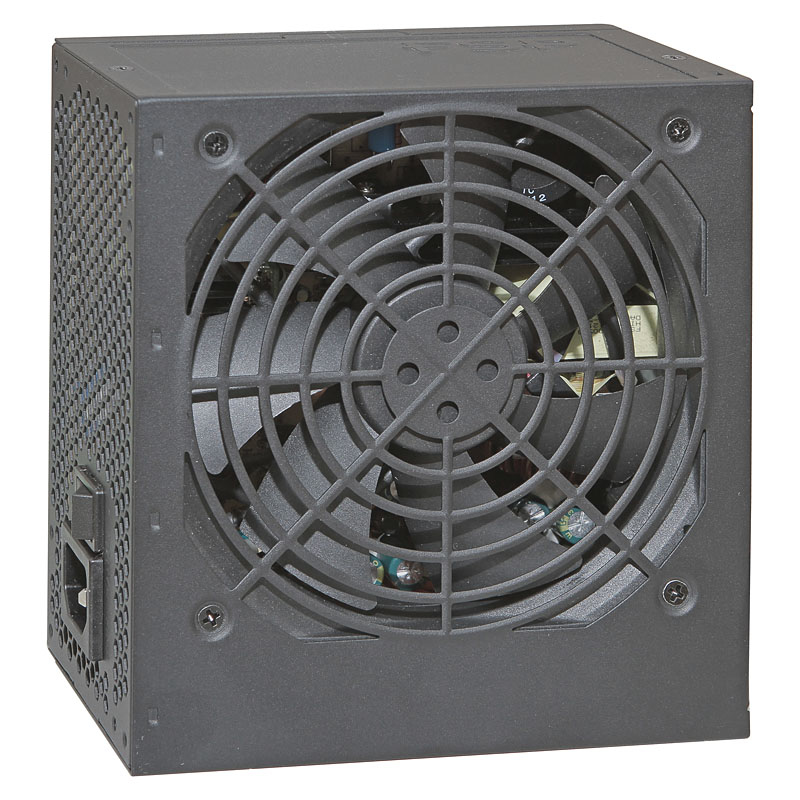

FSP Raider power supply unit
550 W 24-pin ATX ATX Black
Model RaiderPart no. RA750EAN 4711140485744
42 specifications
- Noise21 dB
- Weight1.85 kg
- ColourBlack
- Total power550 W
- Motherboard power connector24-pin ATX
- PurposePC
Overview
- Noise
- 21 dB
- Weight
- 1.85 kg
- Colour
- Black
- Total power
- 550 W
- Motherboard power connector
- 24-pin ATX
- Purpose
- PC
- Brand
- FSP
- Category
- Power Supply Unit
- Model
- Raider
- Part numbers
- RA750, PPA5502302, PPA6501902, PPA7501402, PPA5502314, PPA6501915 +1 more
- EAN / UPC
- 4711140485744, 845685006493, 4711140484679, 5705585171026 +7 more
- Also known as
- FSP Raider power supply unit 550 W 24-pin ATX ATX Black
Specifications
42 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 550 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum input current (@110V) | +12V,+3.3V,+5V,+5Vsb,-12V |
| Power factor | 0.99 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 125 W |
| Combined power (+12V) | 504 W |
| Combined power (+5V) | 125 W |
| Combined power (-12V) | 18.6 W |
| Combined power (+5Vsb) | 18.6 W |
| Max output current (+3.3V) | 24 A |
| Max output current (+12V) | 42 A |
| Max output current (+5V) | 22 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 88% |
| Power protection features | Over current, Over voltage, Short circuit |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| PCI Express power connectors (6+2 pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| ATX Power connector (24-pin) | Yes |
| Floppy drive power connector | 1 |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Silver |
| ATX version | 2.3 |
| EPS version | 2.92 |
| Noise level | 21 dB |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |

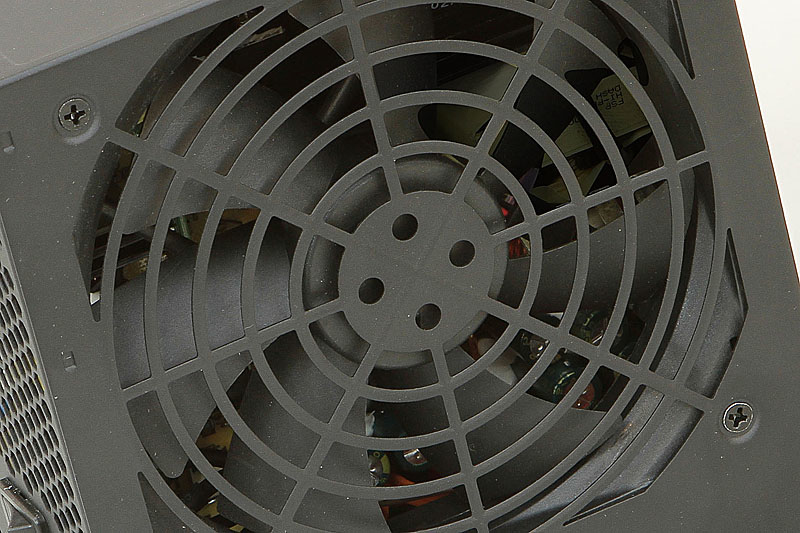

| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |

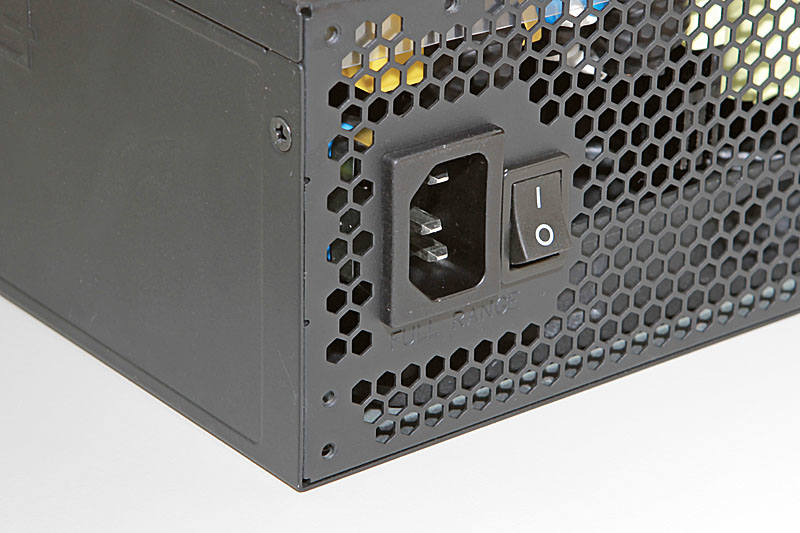

| On/off switch | Yes |
Safety regulation & standards
| Specification | Value |
|---|---|
| Safety | CE, FCC, CB, UL, TUV, BSMI, CCC, GOST |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 140 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 1.85 kg |
What people say
Reviews & ratings
FSP Raider power supply unit
No reviews yet
Be the first to tell others how FSP Raider power supply unit works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare FSP Raider power supply unit
All power supply unit comparisons- FSP Raider power supply unit vsFSP055-50LM power supply unitCompare specs

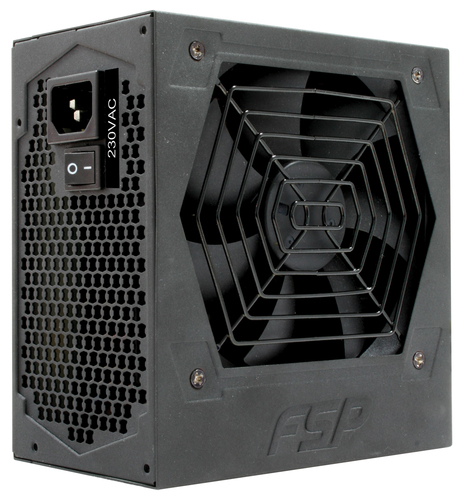

- FSP Raider power supply unit vsFSP Hexa 500Compare specs
- FSP Raider power supply unit vsFSP500-60GHN power supply unitCompare specs
- FSP Raider power supply unit vsFSP500-60GLN power supply unitCompare specs

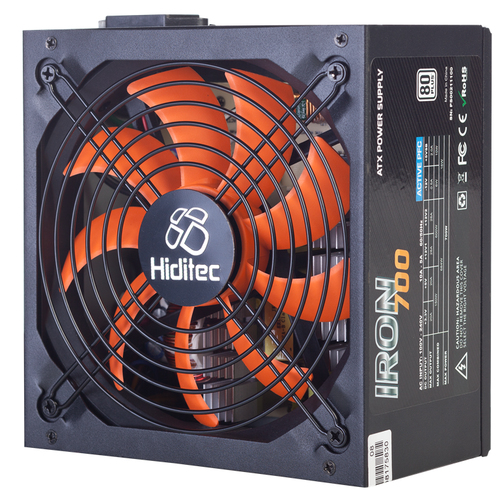

- FSP Raider power supply unit vsHiditec Iron 800W 80+Compare specs
