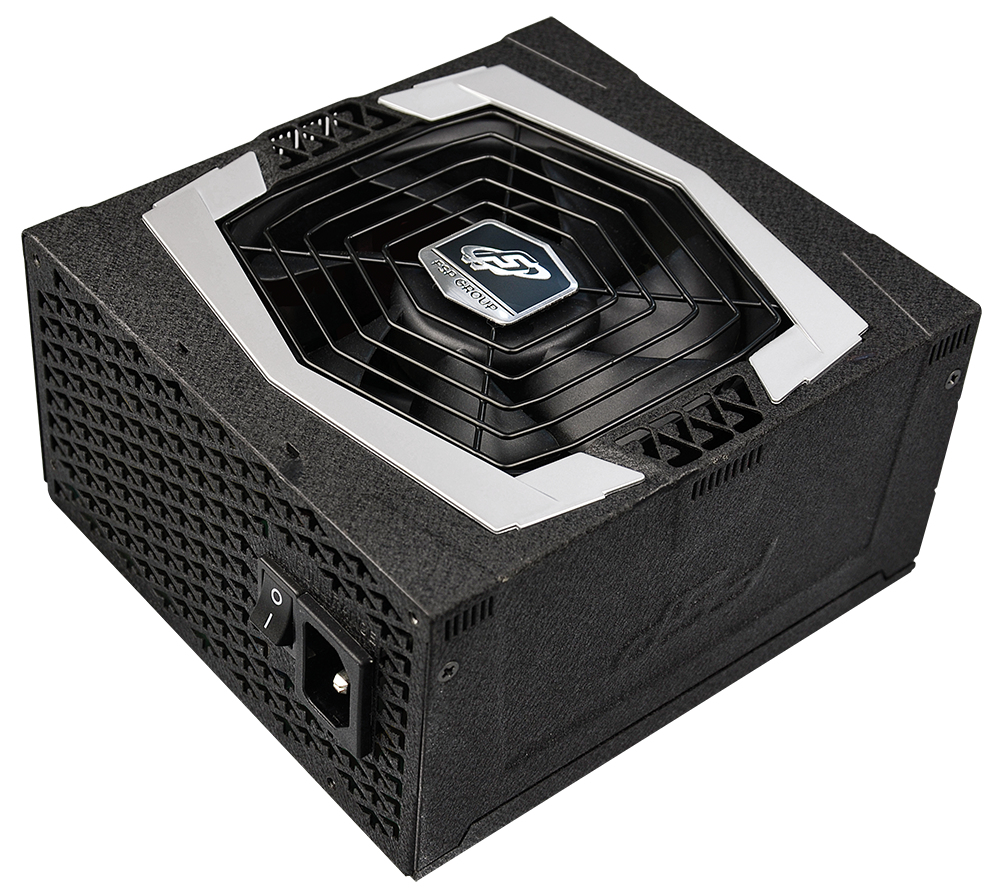

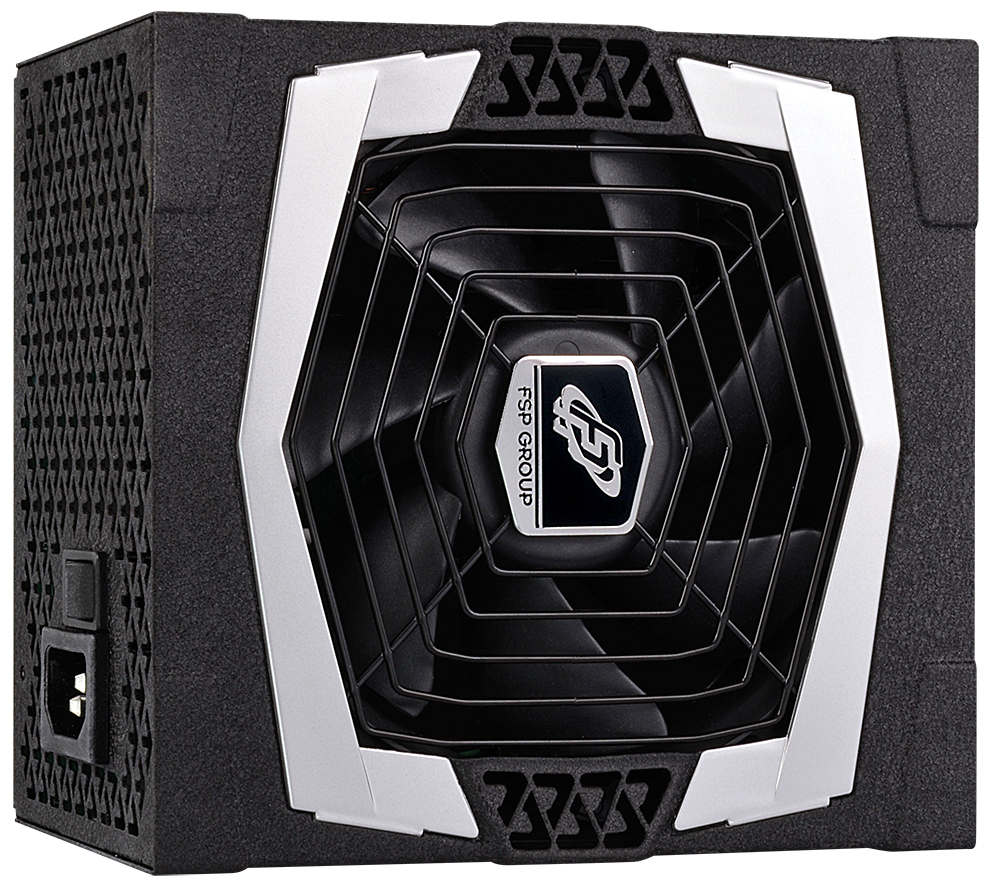

FSP PT-1200FM power supply unit

FSP PT-1200FM power supply unit

1200 W 24-pin ATX ATX Black

Model PT-1200FMPart no. PPA12A0600EAN 4711140487113

45 specifications
  • Noise21 dB
  • ColourBlack
  • Total power1200 W
  • Motherboard power connector24-pin ATX
  • PurposePC
  • SafetyV
See all specifications

Overview

Noise
21 dB
Colour
Black
Total power
1200 W
Motherboard power connector
24-pin ATX
Purpose
PC
Safety
V
Brand
FSP
Model
PT-1200FM
Part number
PPA12A0600
EAN / UPC
4711140487113
Also known as
FSP PT-1200FM power supply unit 1200 W 24-pin ATX ATX Black

Specifications

45 specifications in 9 groups

Power

Total power1200 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Maximum input current (@110V)+12V,+3.3V,+5V,+5Vsb,-12V
Power Factor Correction (PFC) typeActive
Combined power (+3.3V)160 W
Combined power (+12V)1200 W
Combined power (+5V)160 W
Combined power (-12V)24.6 W
Combined power (+5Vsb)24.6 W
Max output current (+3.3V)25 A
Max output current (+12V)100 A
Max output current (+5V)25 A
Max output current (-12V)0.8 A
Max output current (+5Vsb)3 A
Efficiency92%
Power protection featuresOver current, Over voltage, Short circuit

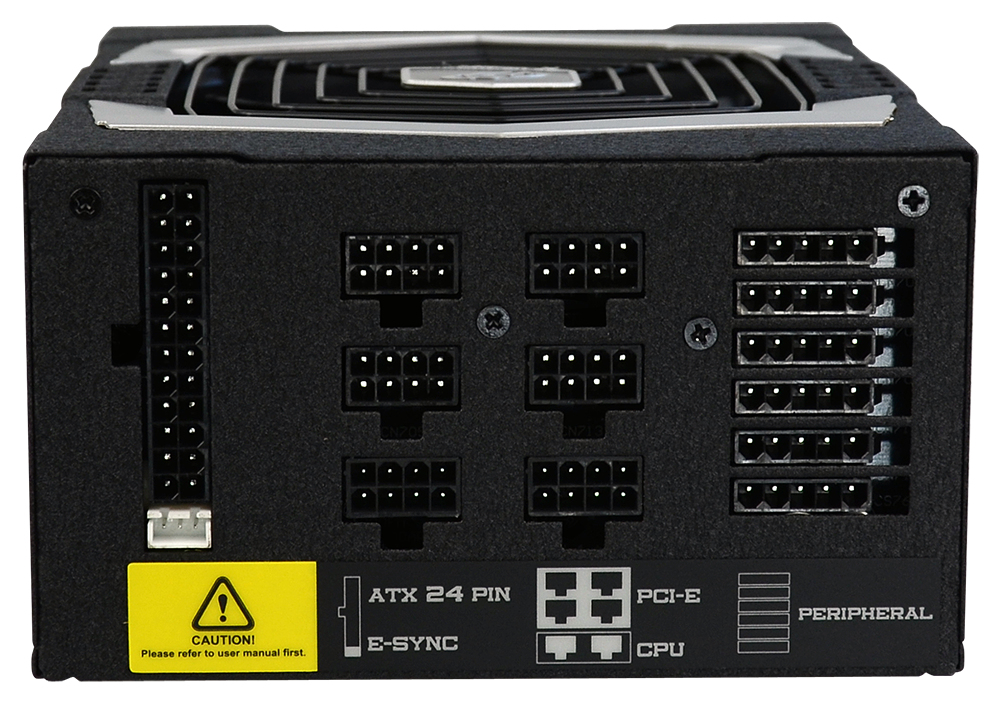

Ports & interfaces

Motherboard power connector24-pin ATX
Number of SATA power connectors13
Peripheral (Molex) power connectors (4-pin)6
PCI Express power connectors (6+2 pin)8
CPU power connector (4+4 pin)Yes
ATX Power connector (24-pin)Yes
Floppy disk drive connectorYes
Floppy drive power connector1
Cabling typeFully-Modular

Performance

PurposePC
Power supply unit (PSU) form factorATX
80 PLUS certification80 PLUS Platinum
ATX version2.31
EPS version2.92
Noise level21 dB

Design

Product colourBlack
Cooling typeActive
Fan diameter13.5 cm
Number of fans1 fan(s)
Fan locationSide
On/off switchYes

Certificates

Compliance certificatesRoHS

Safety regulation & standards

SafetyV

Weight & dimensions

Width150 mm
Depth190 mm
Height86 mm

Technical details

Sustainability certificatesENERGY STAR

Other features

Omnigrid (2-pin) power connectors1
