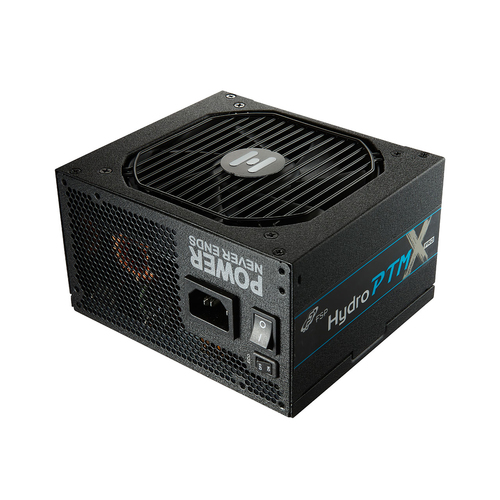

FSP Hydro PTM X PRO ATX3.0(PCIe5.0) 1000W
Model Hydro PTM X PRO ATX3.0(PCIe5.0) 1000WPart no. PPA10A3610EAN 4713224527432
47 specifications
- ColourBlack
- Total power1000 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width150 mm
Overview
- Colour
- Black
- Total power
- 1000 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 150 mm
- Brand
- FSP
- Category
- Power Supply Unit
- Model
- Hydro PTM X PRO ATX3.0(PCIe5.0) 1000W
- Part number
- PPA10A3610
- EAN / UPC
- 4713224527432
- Also known as
- FSP Hydro PTM X PRO ATX3.0(PCIe5.0) 1000W power supply unit 20+4 pin ATX ATX Black
Specifications
47 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 1000 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 13-6 A |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 1000 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 18.6 W |
| Combined power (+5Vsb) | 18.6 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 83.33 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 92% |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 12 |
| SATA power cable length | 500 mm |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power connectors (12+4 pin) | 1 |
| PCI Express power connectors (12+4 pin) cable length | 700 mm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 70 cm |
| Floppy disk drive connector | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Titanium |
| ATX version | 3.0 |
| EPS version | 2.92 |
| Bearing technology | FDB |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| On/off switch | Yes |
Packaging content
| Specification | Value |
|---|---|
| Cables included | CPU, PCIe, Peripheral (Molex), SATA |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 130 mm |
| Height | 86 mm |
