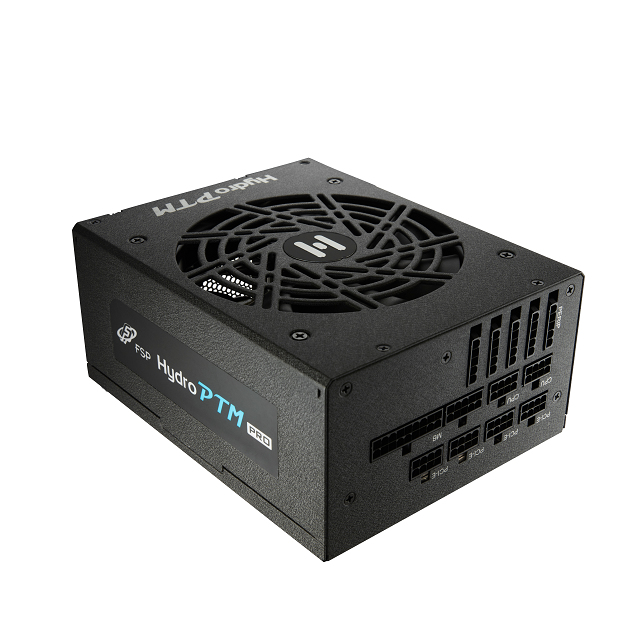

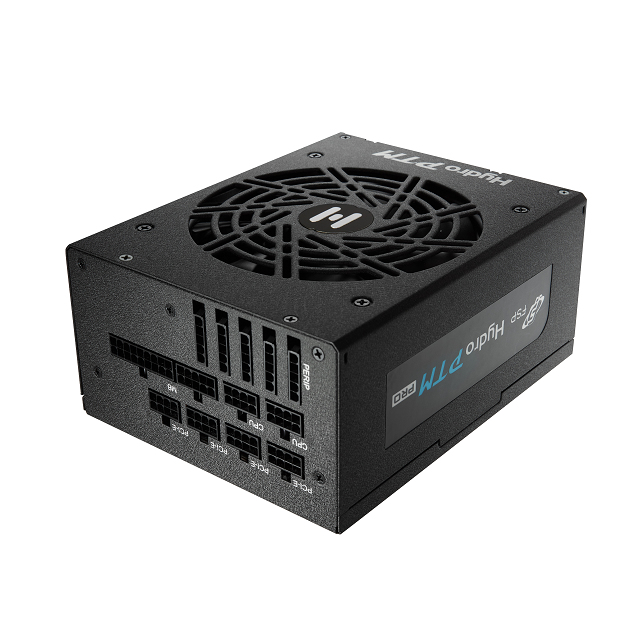

HYDRO PTM PRO
Model HYDRO PTM PROPart no. HYDROPTMPRO1200
38 specifications
- ColourBlack
- Total power1200 W
- Motherboard power connector20+4 pin ATX
- PurposePC/Server
- Width150 mm
Overview
- Colour
- Black
- Total power
- 1200 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC/Server
- Width
- 150 mm
- Brand
- FSP
- Category
- Power Supply Unit
- Model
- HYDRO PTM PRO
- Part number
- HYDROPTMPRO1200
- Also known as
- FSP HYDRO PTM PRO power supply unit 1200 W 20+4 pin ATX ATX Black
Specifications
38 specifications in 5 groups
Power
| Specification | Value |
|---|---|
| Total power | 1200 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 14 - 9 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 1200 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 18.6 W |
| Combined power (+5Vsb) | 18.6 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 100 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 92% |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |

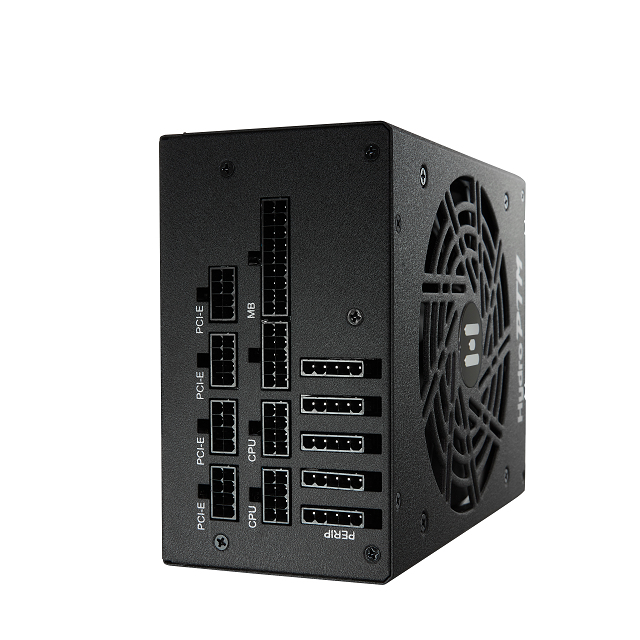

Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 14 |
| Peripheral (Molex) power connectors (4-pin) | 5 |
| PCI Express power connectors (6+2 pin) | 8 |
| CPU power connector (4+4 pin) | Yes |
| ATX power connector (20+4 pin) | Yes |
| PCI Express connector | Yes |
| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC/Server |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Platinum |
| ATX version | 2.52 |
| EPS version | 2.92 |
| Bearing technology | FDB |

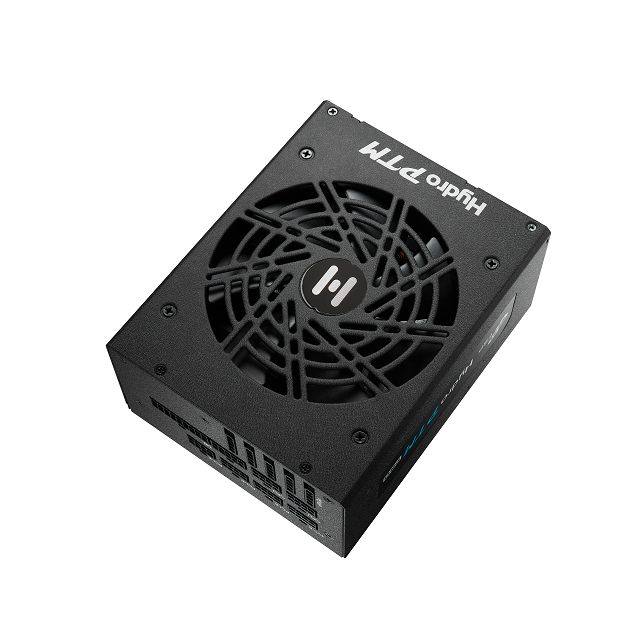

Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 13.5 cm |
| Number of fans | 1 fan(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 190 mm |
| Height | 86 mm |
