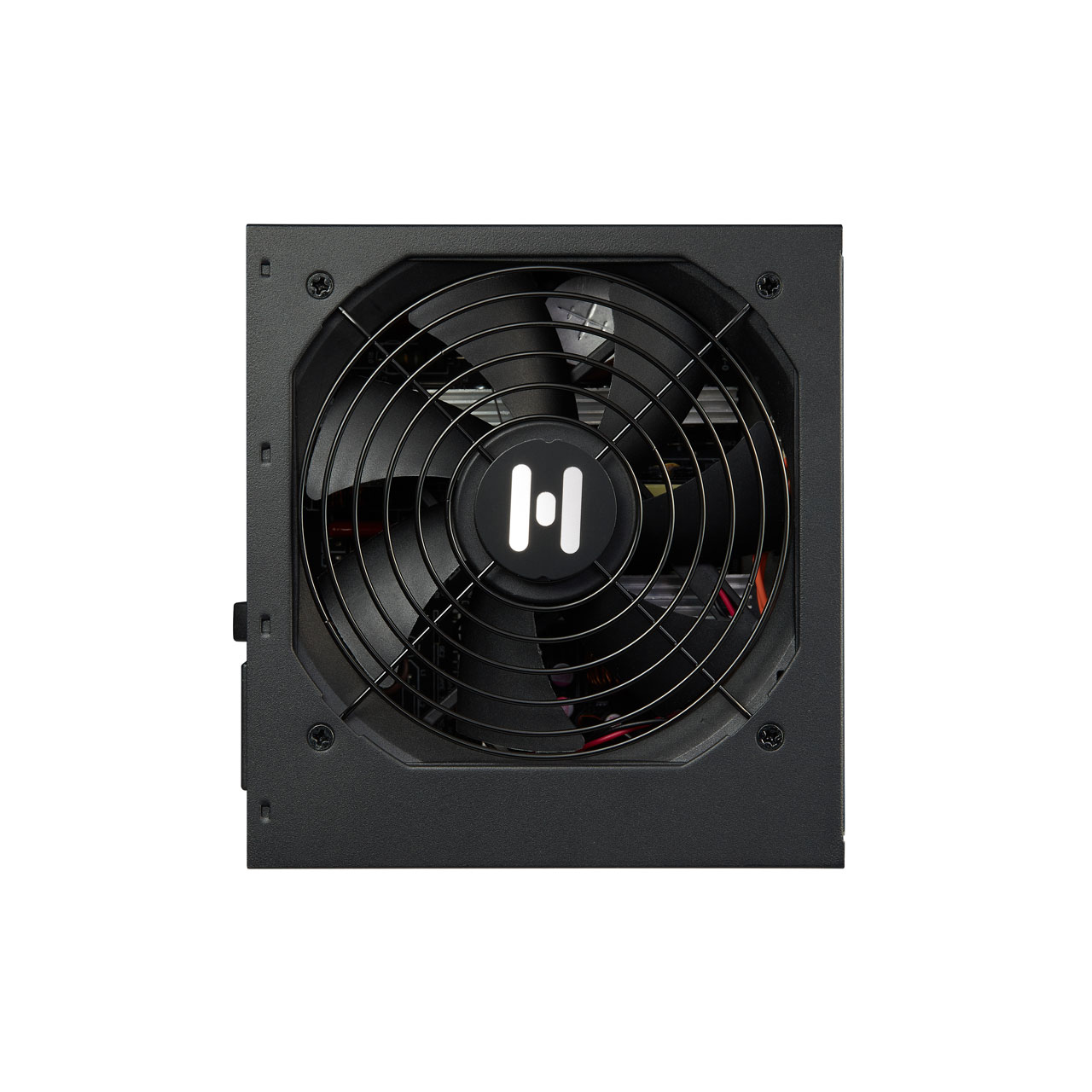

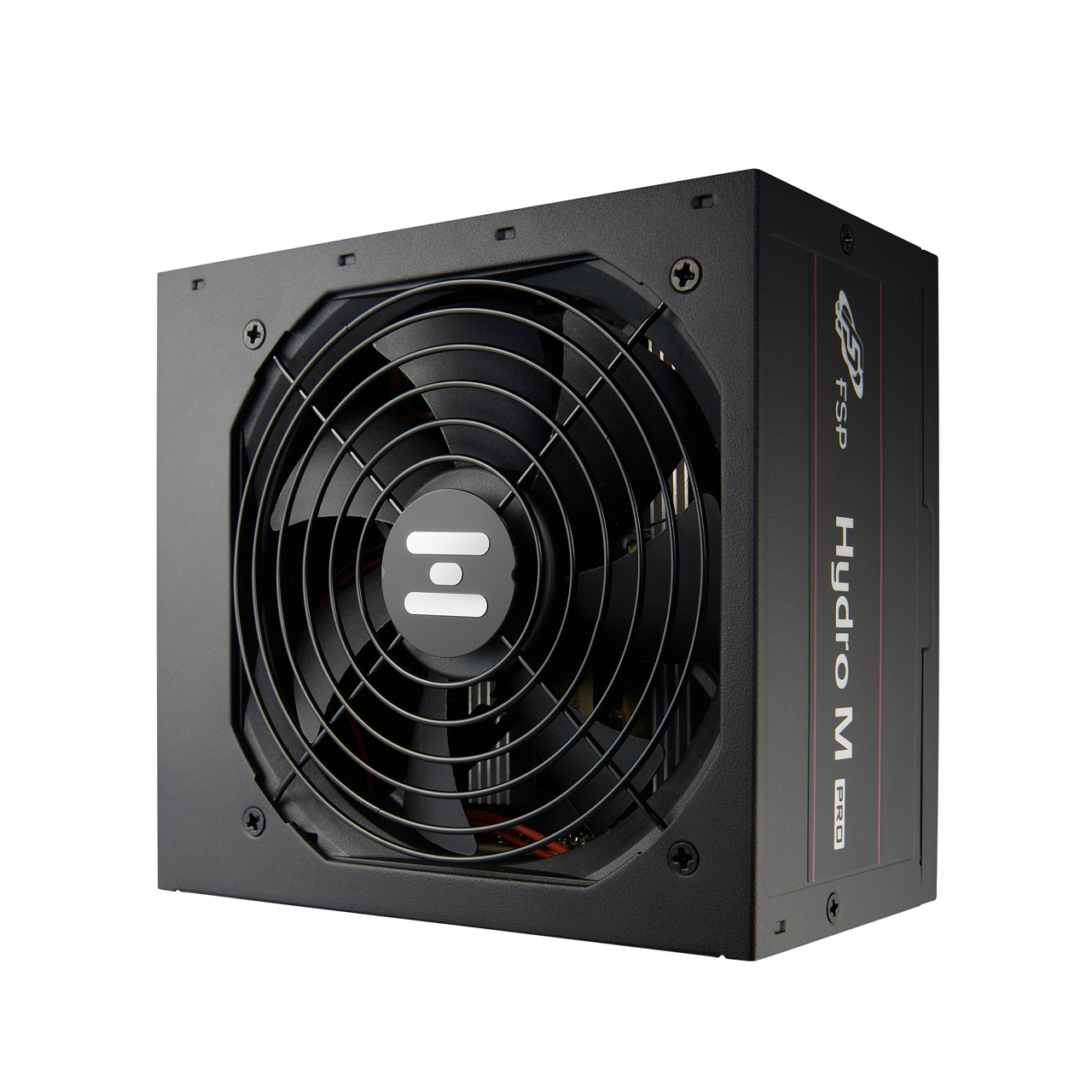

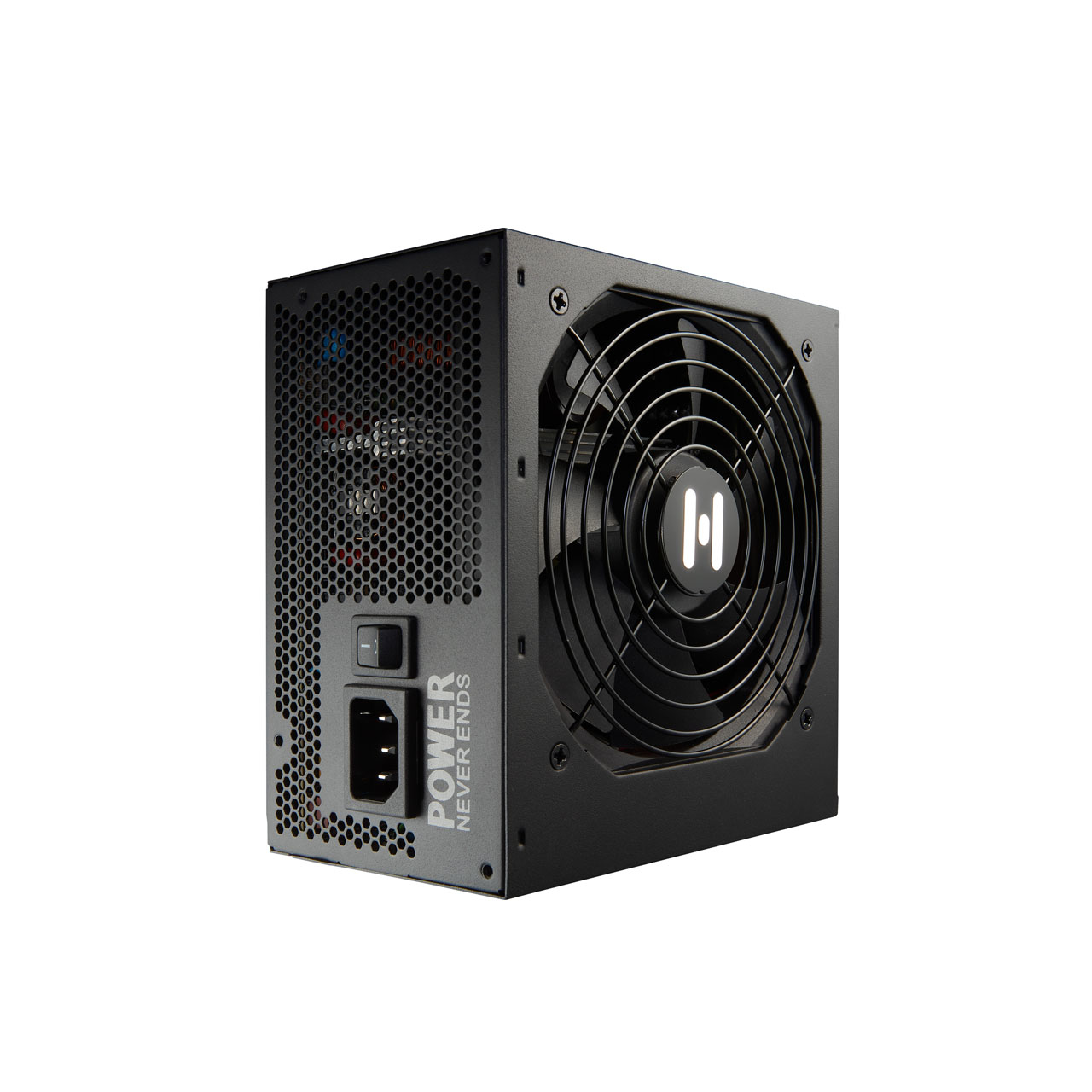

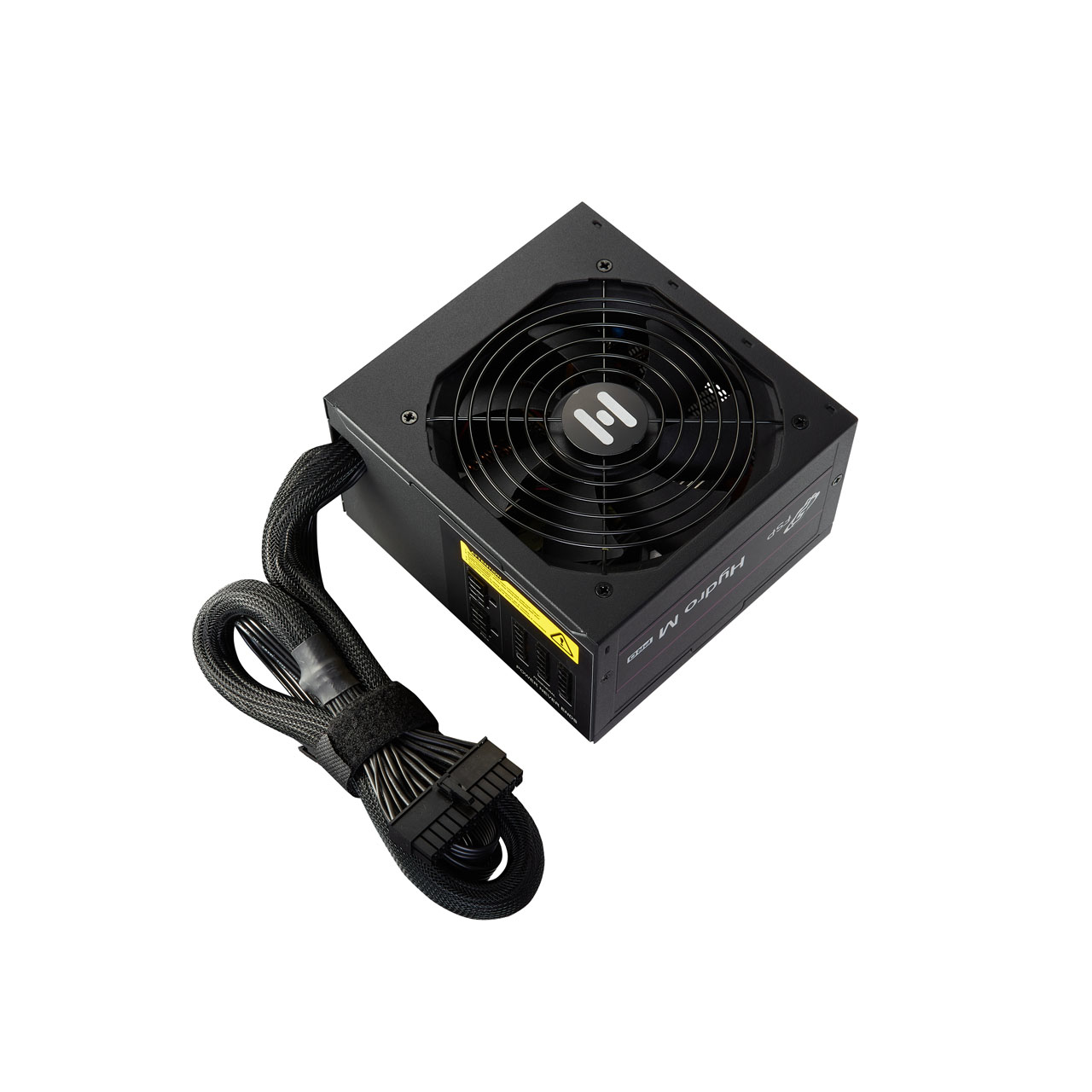

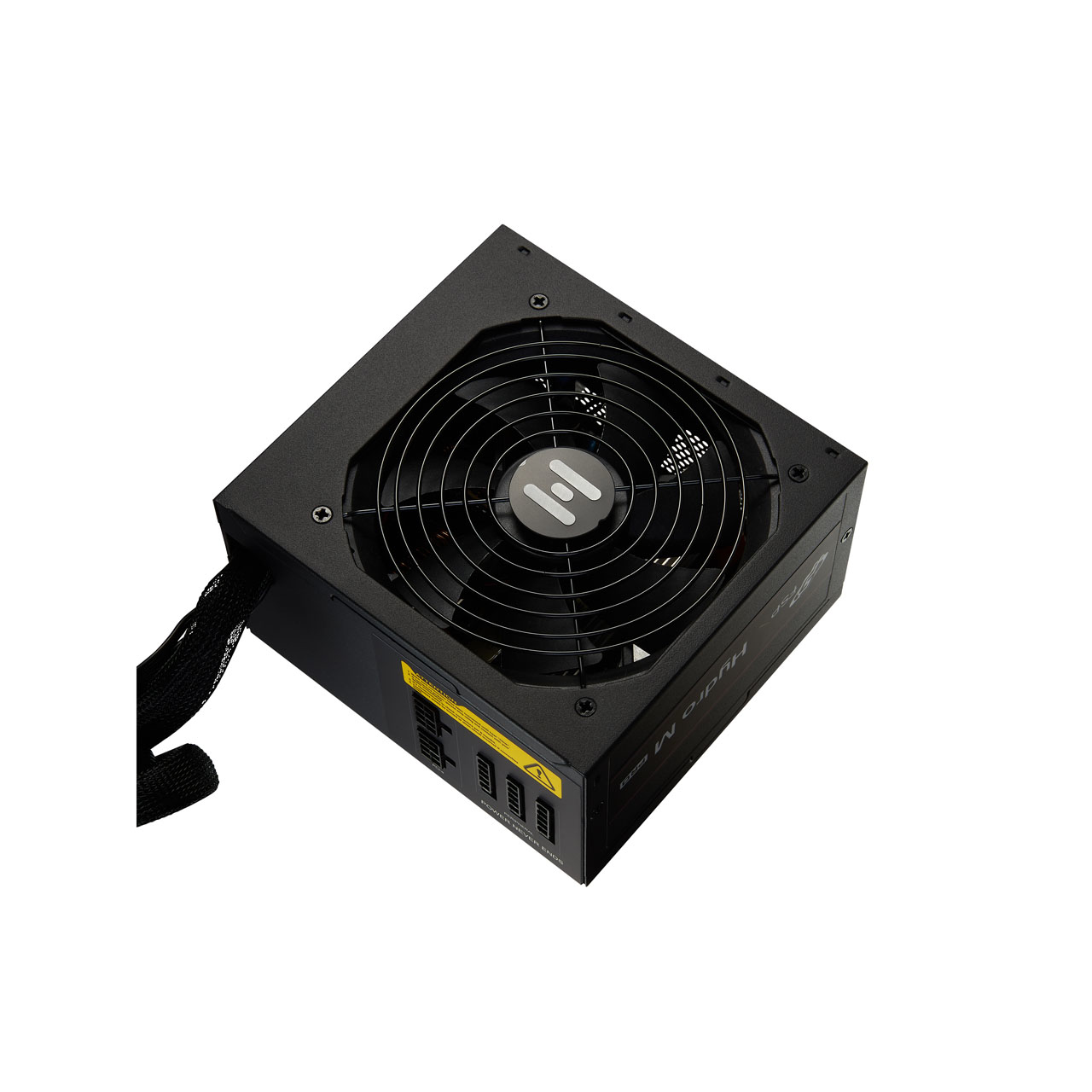

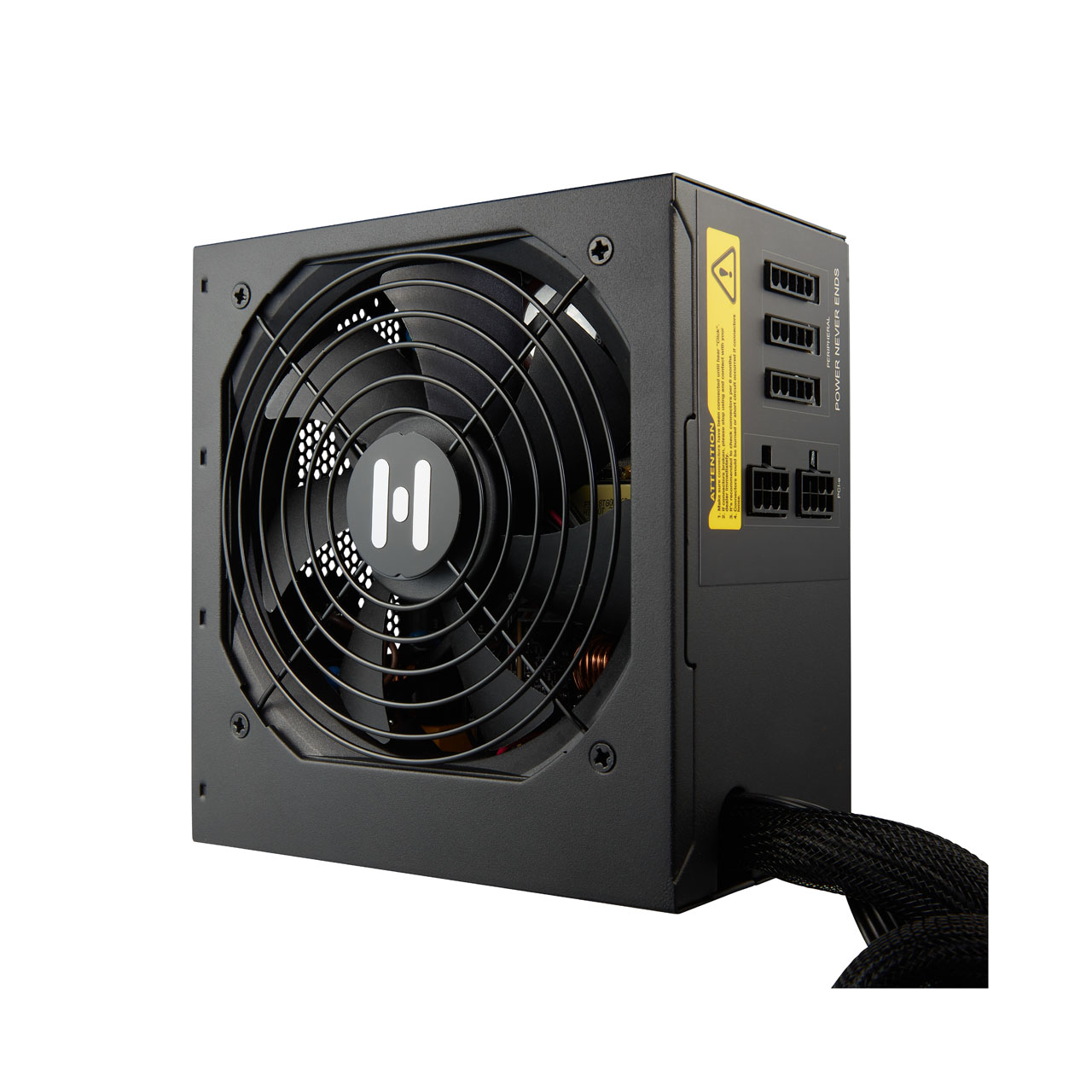

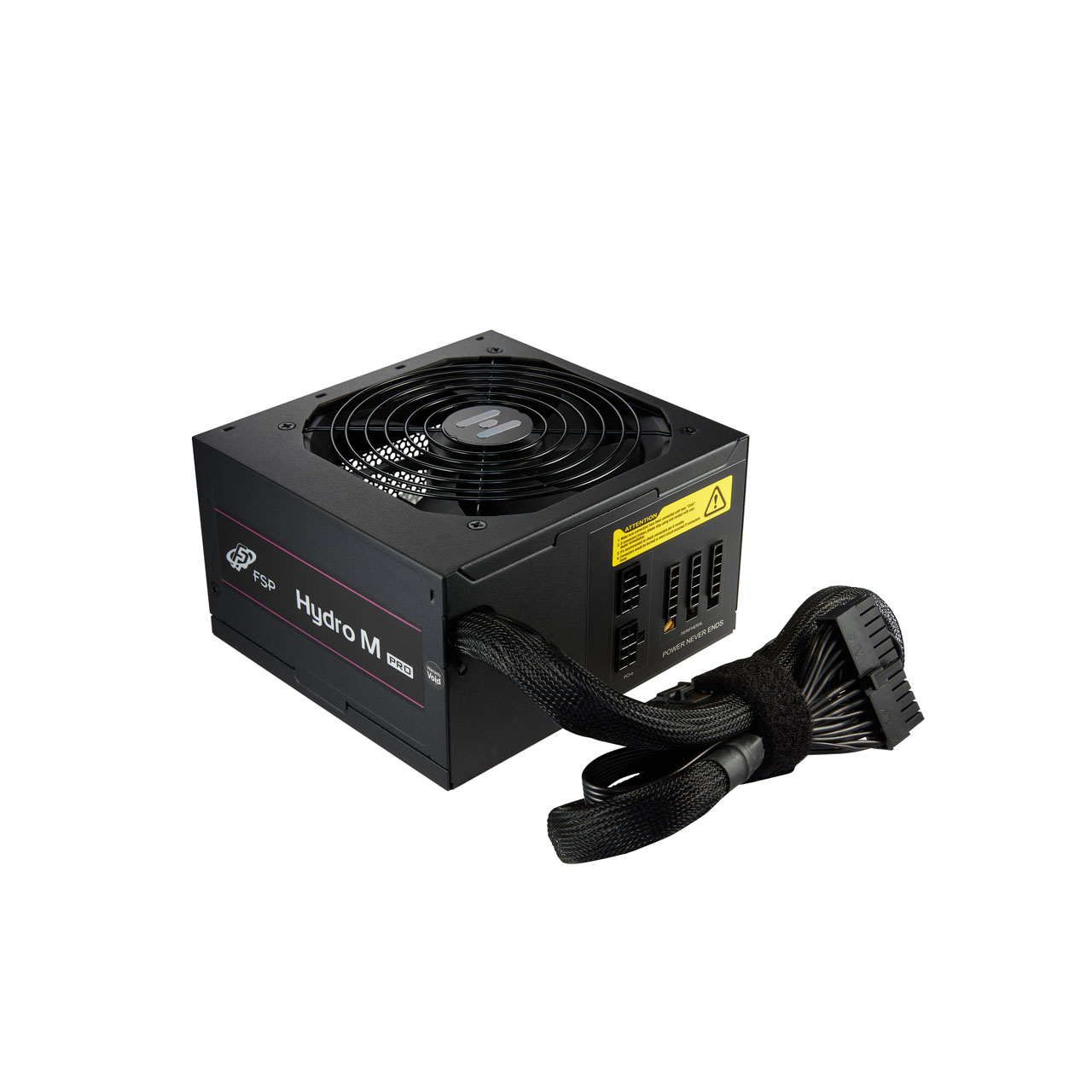

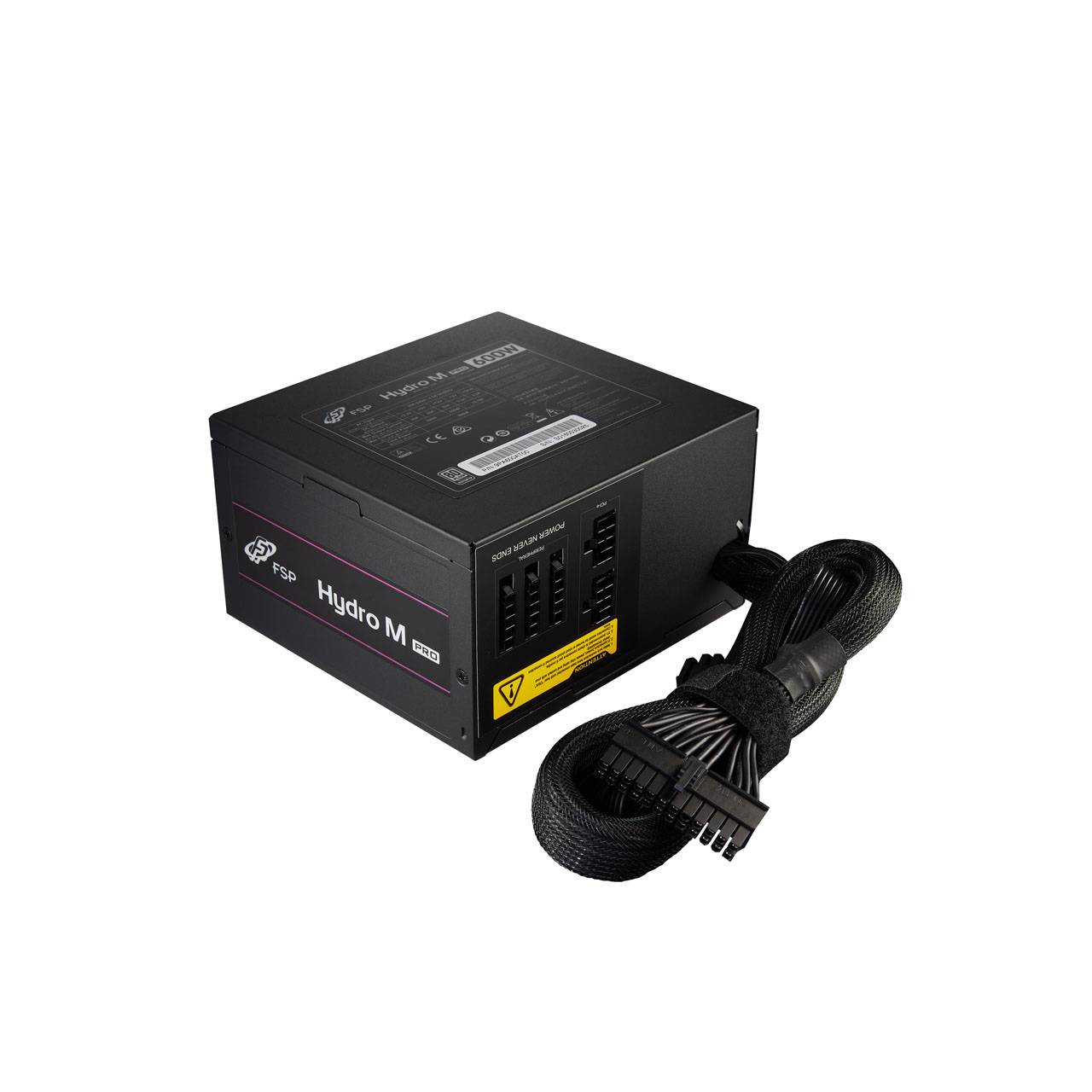

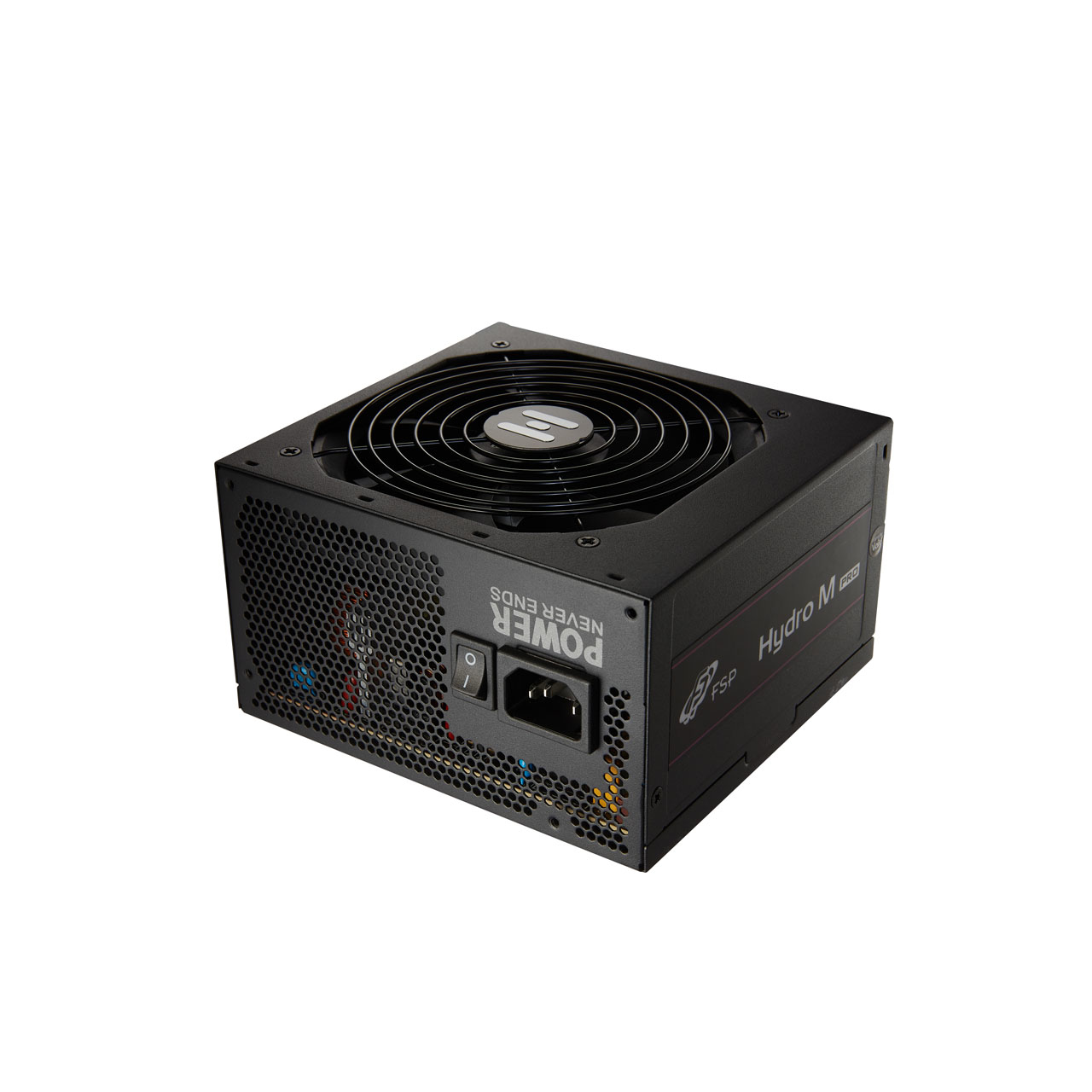

HYDRO M Pro 600
Model HYDRO M Pro 600Part no. HP2-600MEAN 4713224524530
35 specifications
- ColourBlack
- Total power600 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width140 mm
Overview
- Colour
- Black
- Total power
- 600 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 140 mm
- Brand
- FSP
- Category
- Power Supply Unit
- Model
- HYDRO M Pro 600
- Part number
- HP2-600M
- EAN / UPC
- 4713224524530
- Also known as
- FSP HYDRO M Pro 600 power supply unit 600 W 20+4 pin ATX ATX Black
Specifications
35 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 600 W |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 4.5 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 600 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 50 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 88% |
| Power protection features | Over current, Over power, Over voltage, Short circuit |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| PCI Express power connectors (6+2 pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| Cabling type | Semi-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Bronze |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| On/off switch | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 140 mm |
| Depth | 150 mm |
| Height | 86 mm |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
