FSP Hydro GE
Model Hydro GEPart no. HGE550EAN 4713224520754
33 specifications
- ColourBlack
- Total power550 W
- Motherboard power connector20+4 pin ATX
- PurposePC/Server
- Width150 mm
Overview
- Colour
- Black
- Total power
- 550 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC/Server
- Width
- 150 mm
- Brand
- FSP
- Category
- Power Supply Unit
- Model
- Hydro GE
- Part numbers
- HGE550, PPA6504004, HGE650, PPA5504501
- EAN / UPC
- 4713224520754, 4713224520747
- Also known as
- FSP Hydro GE power supply unit 550 W 20+4 pin ATX ATX Black
Specifications
33 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 550 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 4 - 8 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+12V) | 550 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 45.84 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 90% |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| PCI Express power connectors (6+2 pin) | 4 |
| CPU power connector (4+4 pin) | Yes |
| ATX power connector (20+4 pin) | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC/Server |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 13.5 cm |
| Number of fans | 1 fan(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 170 mm |
| Height | 86 mm |
Other features
| Specification | Value |
|---|---|
| Number of SATA connectors | 8 |
What people say
Reviews & ratings
FSP Hydro GE
- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare FSP Hydro GE
All power supply unit comparisons- FSP Hydro GE vsFSP Raider II 750WCompare specs
- FSP Hydro GE vsFSP RAIDER II 650WCompare specs
- FSP Hydro GE vsFSP250-60SGV 90+Compare specs
- FSP Hydro GE vsFSP300-40PFB power supply unit PS/2 GreyCompare specs
- FSP Hydro GE vsGIGABYTE P650B power supply unitCompare specs
- FSP Hydro GE vsbe quiet! Straight Power 11Compare specs
- FSP Hydro GE vsChieftec Value APB-500B8 power supply unitCompare specs

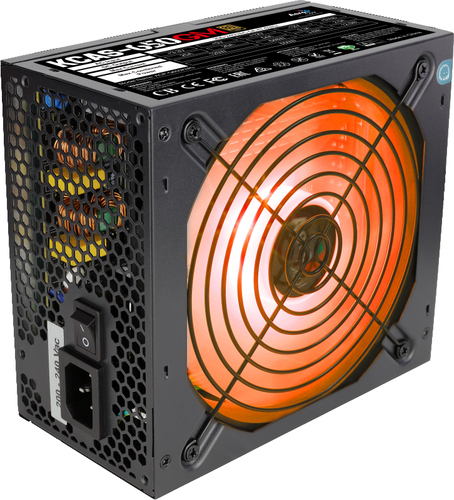

- FSP Hydro GE vsAerocool KCAS-650GM power supply unitCompare specs
