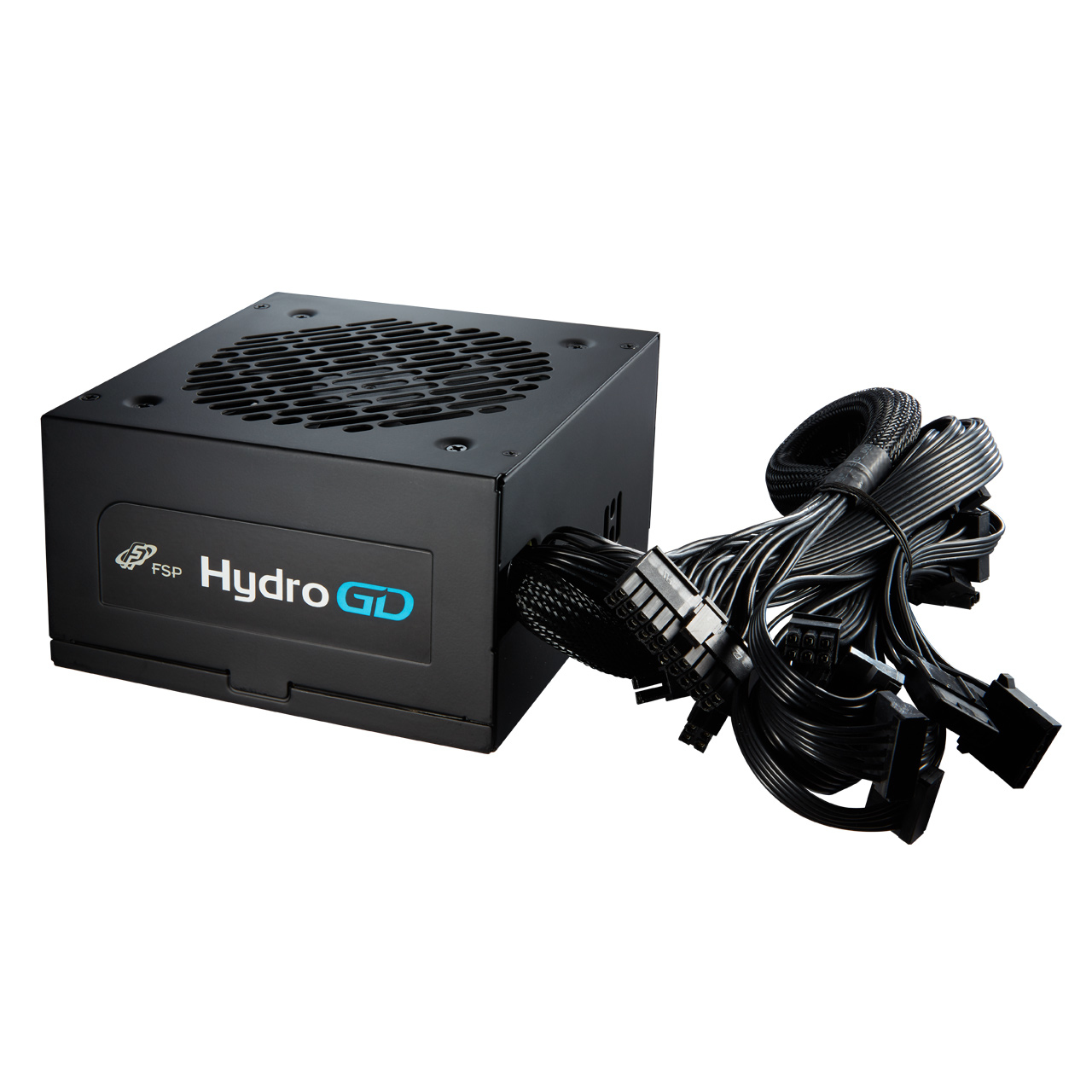

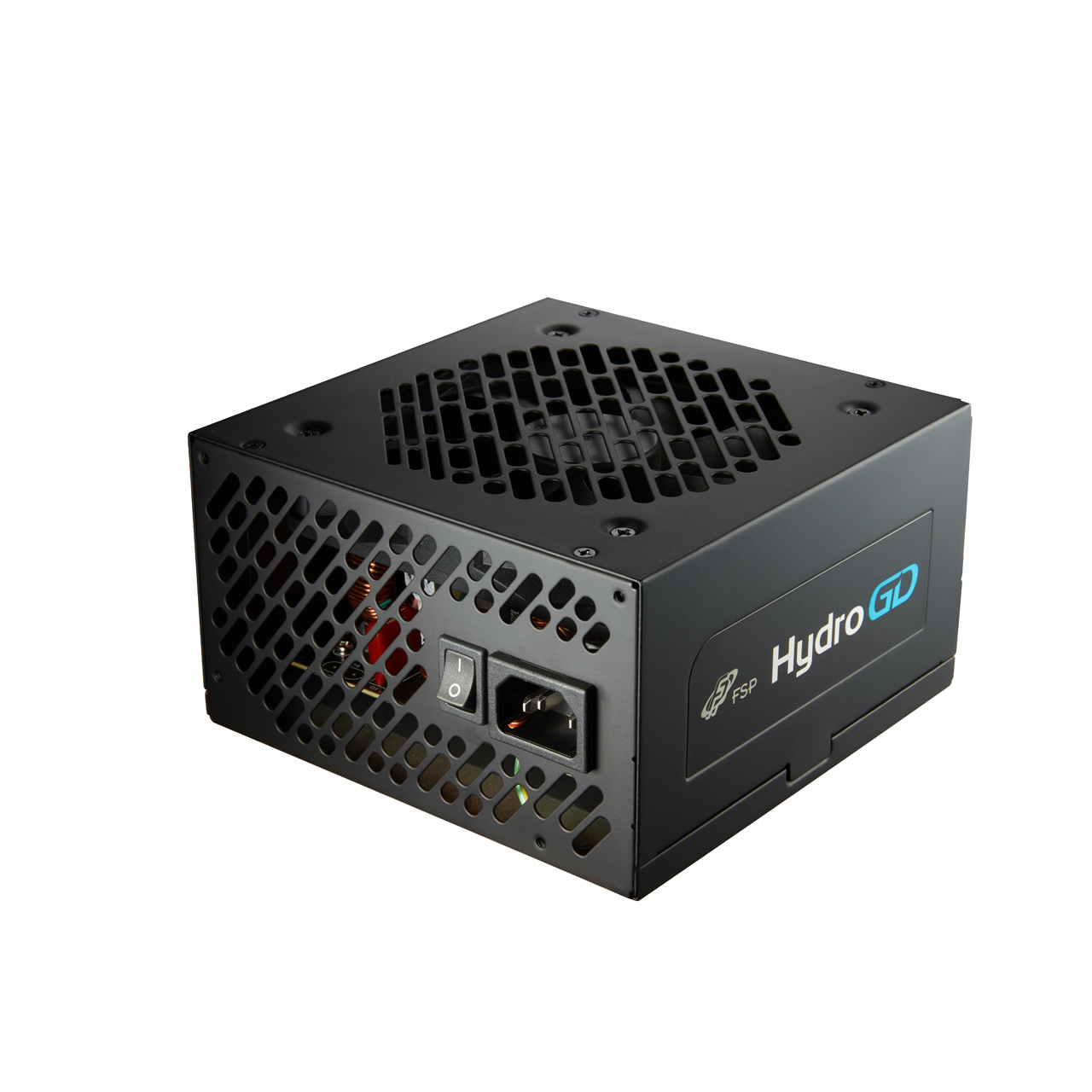

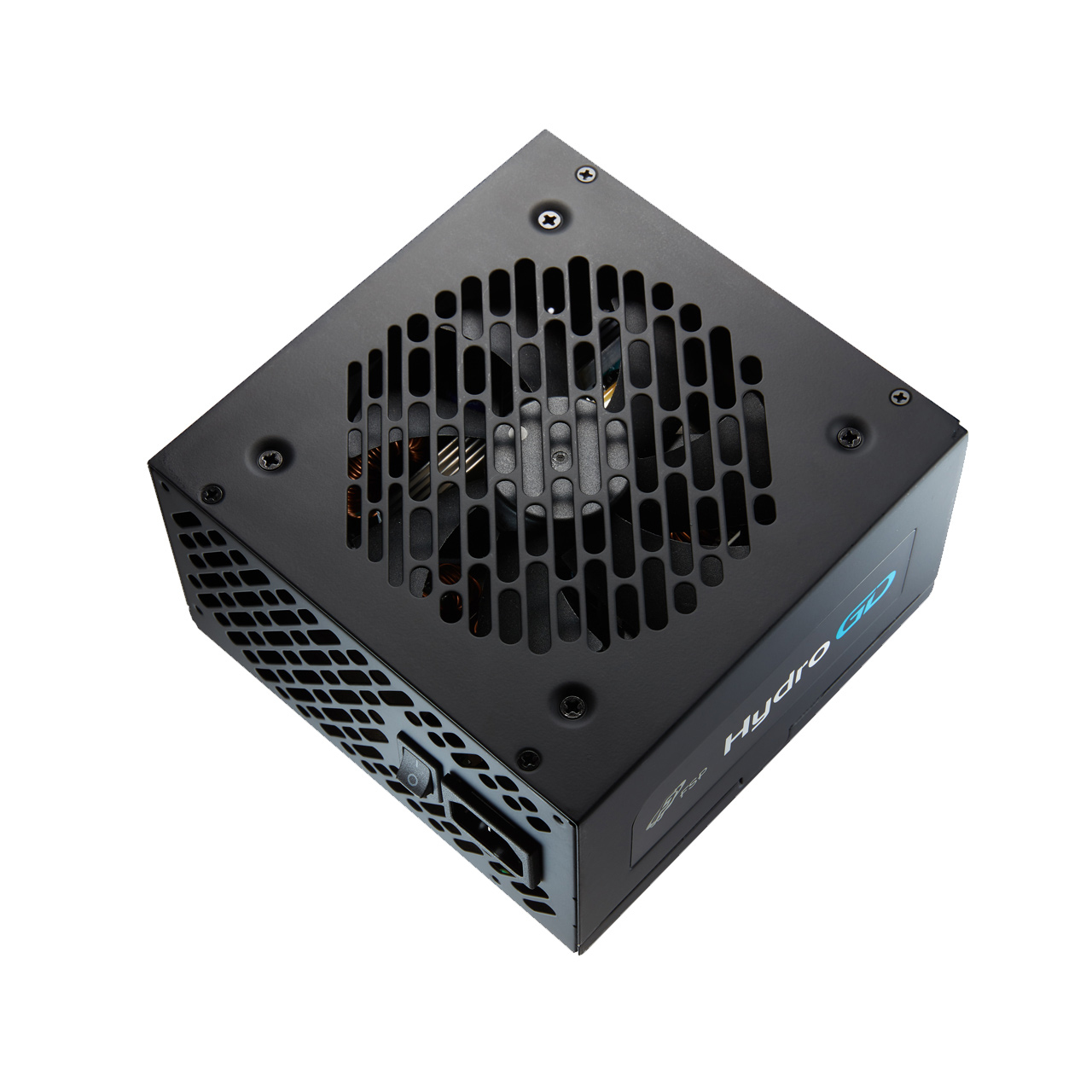

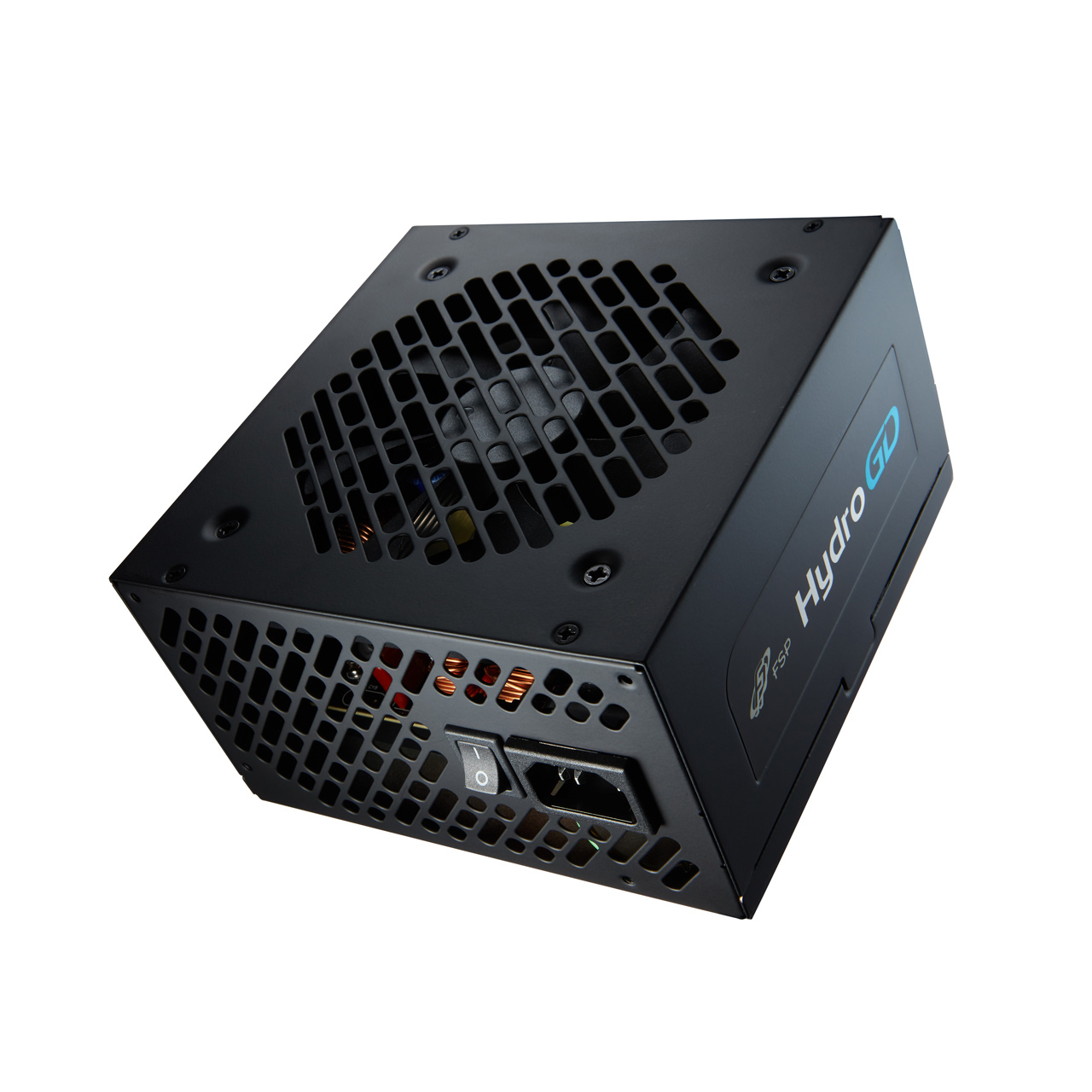

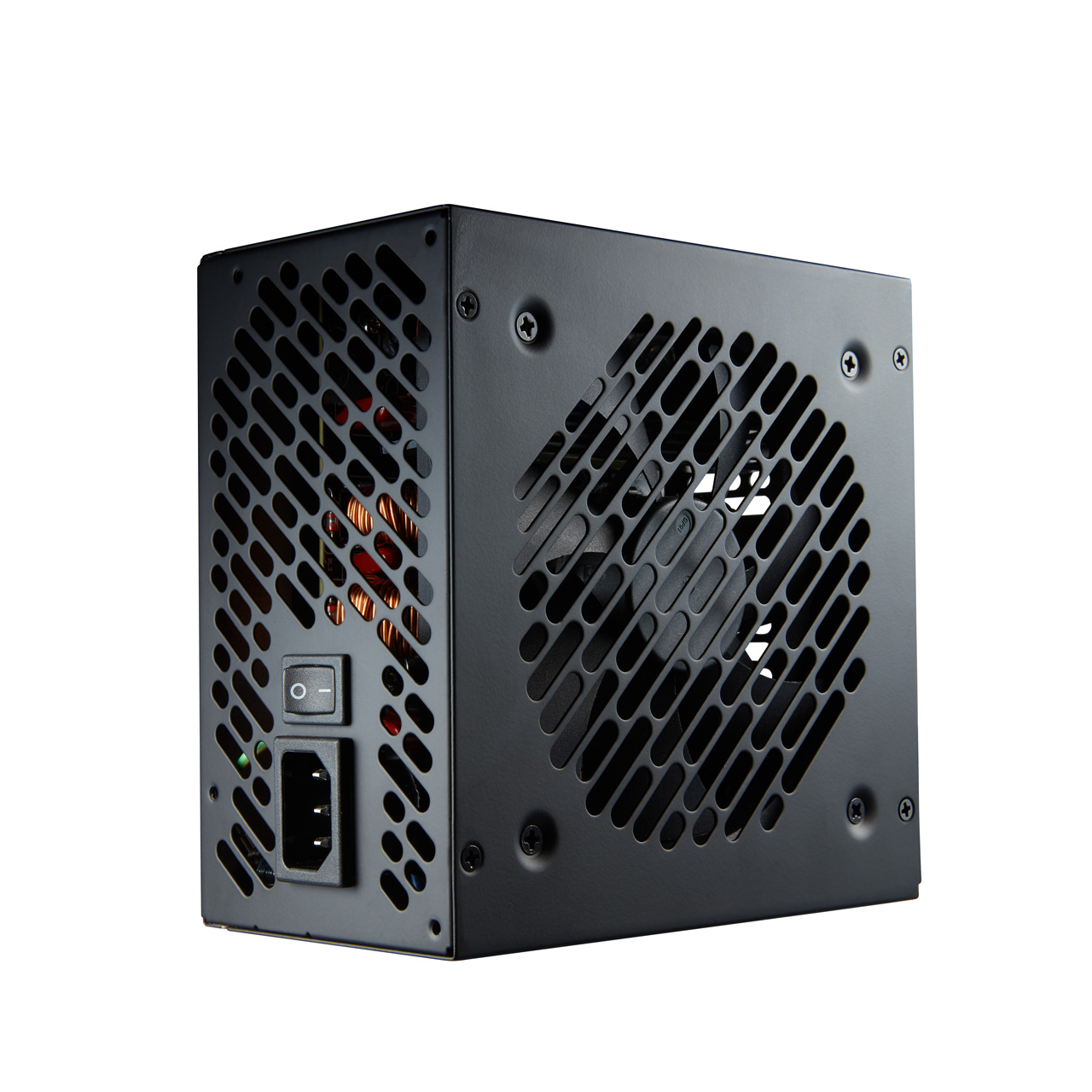

HYDRO GD
Model HYDRO GDPart no. PPA5504701EAN 4713224521355
34 specifications
- ColourBlack
- Total power550 W
- Motherboard power connector24-pin ATX
- PurposePC
- SafetyCE, FCC, TUV, BSMI, UL, CCC
- Width150 mm
Overview
- Colour
- Black
- Total power
- 550 W
- Motherboard power connector
- 24-pin ATX
- Purpose
- PC
- Safety
- CE, FCC, TUV, BSMI, UL, CCC
- Width
- 150 mm
- Brand
- FSP
- Category
- Power Supply Unit
- Model
- HYDRO GD
- Part numbers
- PPA5504701, PPA6504400
- EAN / UPC
- 4713224521355, 4713224521362
- Also known as
- FSP HYDRO GD power supply unit 550 W 24-pin ATX ATX Black
Specifications
34 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 550 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 550 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 45.84 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 90% |
| Power protection features | Over current, Over power, Over voltage, Short circuit |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 7 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| PCI Express power connectors (6+2 pin) | 4 |
| CPU power connector (4+4 pin) | Yes |
| ATX Power connector (24-pin) | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| Bearing technology | Ball bearing |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Fan diameter | 12 cm |
Safety regulation & standards
| Specification | Value |
|---|---|
| Safety | CE, FCC, TUV, BSMI, UL, CCC |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 150 mm |
| Height | 86 mm |
