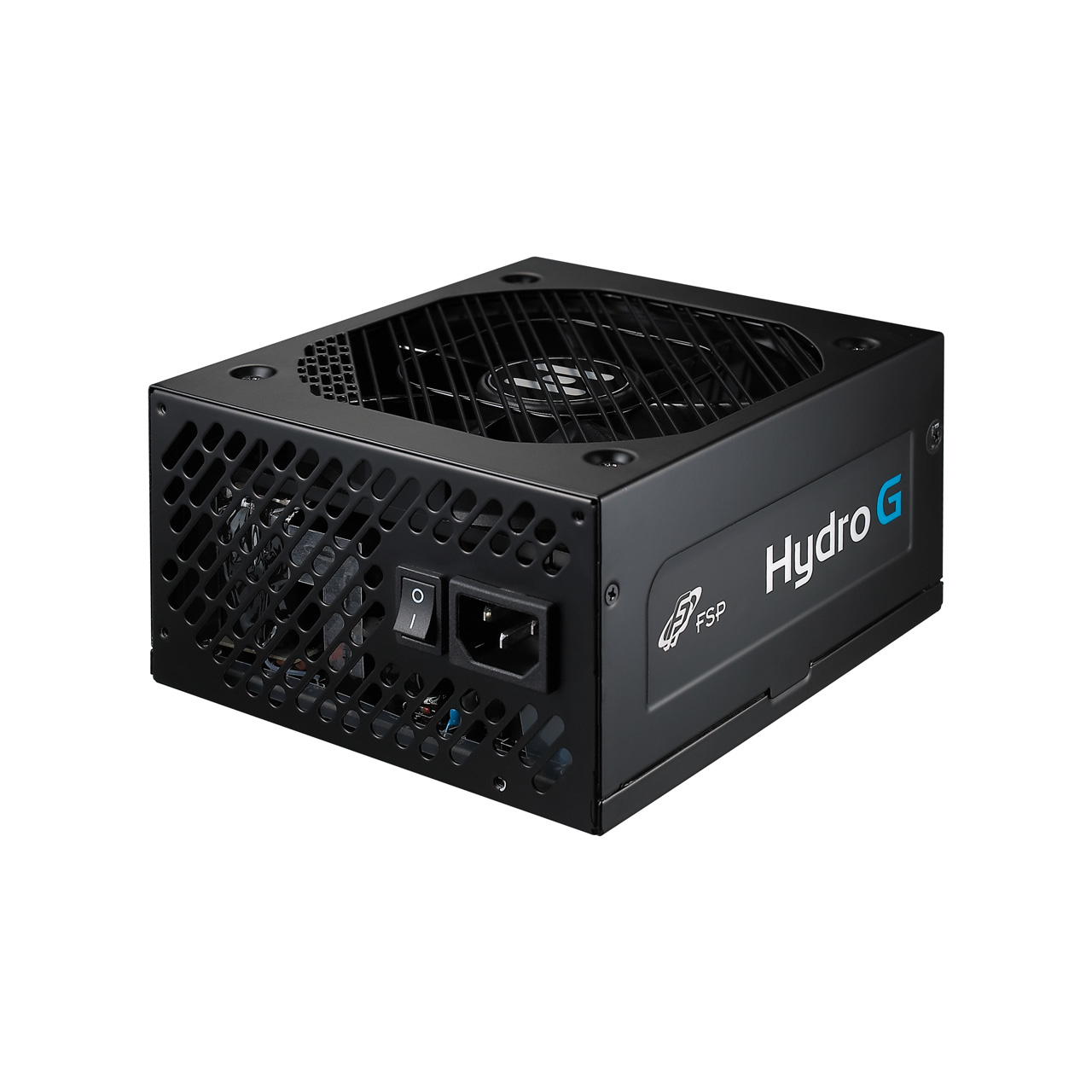

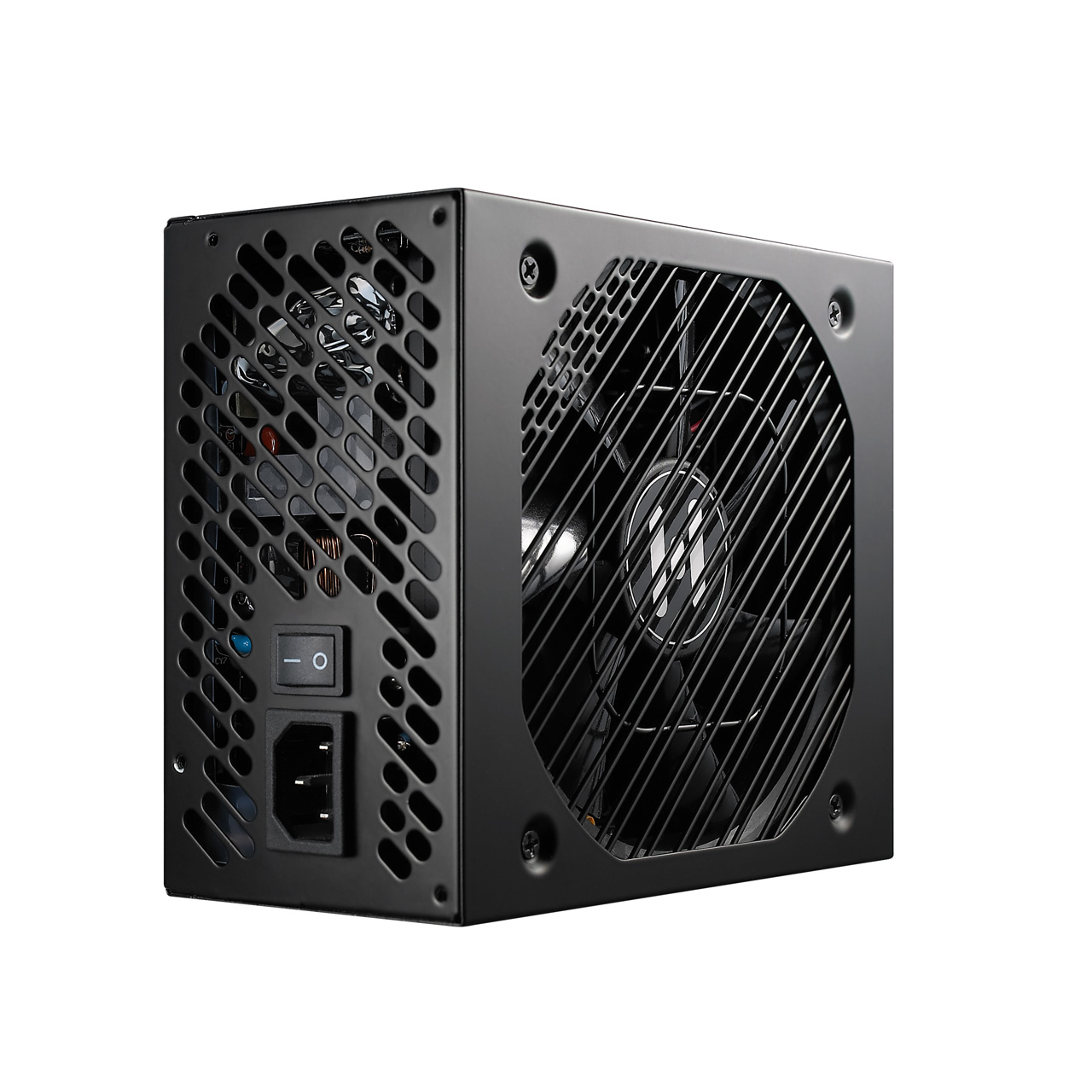

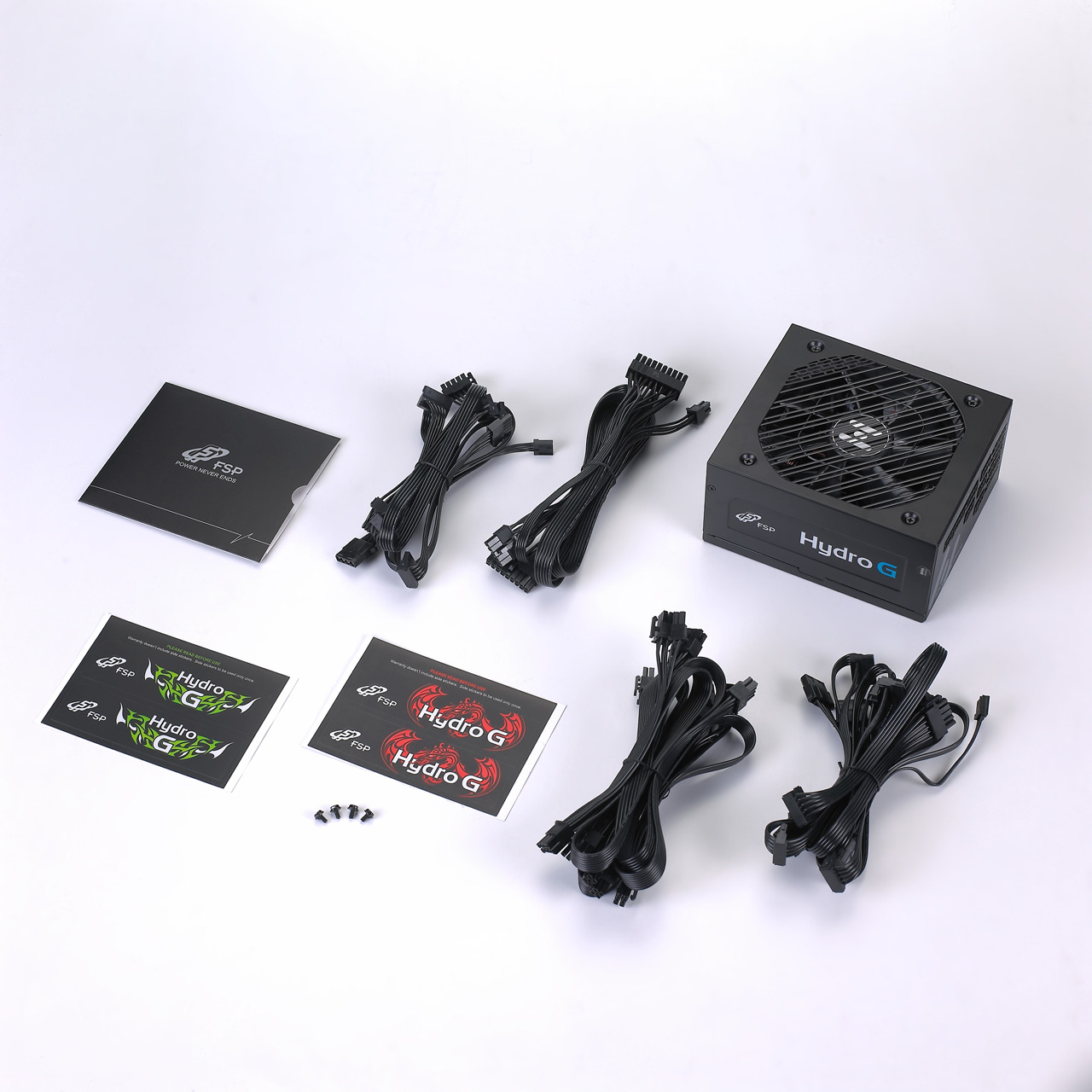

FSP Hydro G
Model Hydro GPart no. PPA8501301EAN 4711140489704
43 specifications
- Noise21 dB
- Weight2.73 kg
- ColourBlack
- Total power850 W
- Motherboard power connector24-pin ATX
- PurposePC/Server
Overview
- Noise
- 21 dB
- Weight
- 2.73 kg
- Colour
- Black
- Total power
- 850 W
- Motherboard power connector
- 24-pin ATX
- Purpose
- PC/Server
- Brand
- FSP
- Category
- Power Supply Unit
- Model
- Hydro G
- Part numbers
- PPA8501301, PPA7502005, PPA6502804
- EAN / UPC
- 4711140489704, 4711140489681, 4711140489698
- Also known as
- FSP Hydro G power supply unit 850 W 24-pin ATX ATX Black
Specifications
43 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 850 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 11 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 150 W |
| Combined power (+12V) | 850 W |
| Combined power (+5V) | 150 W |
| Combined power (-12V) | 6 W |
| Combined power (+5Vsb) | 17.5 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V) | 70.83 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 3.5 A |
| Efficiency | 90% |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 12 |
| Peripheral (Molex) power connectors (4-pin) | 6 |
| PCI Express power connectors (6+2 pin) | 6 |
| CPU power connector (4+4 pin) | Yes |
| ATX Power connector (24-pin) | Yes |
| Floppy disk drive connector | Yes |
| Floppy drive power connector | 2 |
| PCI Express connector | Yes |
| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC/Server |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 2.4 |
| EPS version | 2.92 |
| Noise level | 21 dB |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 13.5 cm |
| Number of fans | 1 fan(s) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Safety regulation & standards
| Specification | Value |
|---|---|
| Safety | CE/TUV/FCC/EAC/CCC/BSMI/RCM/KC |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 170 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 2.73 kg |
