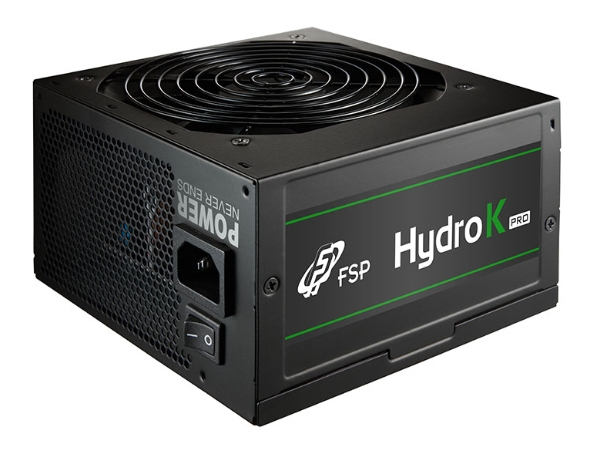

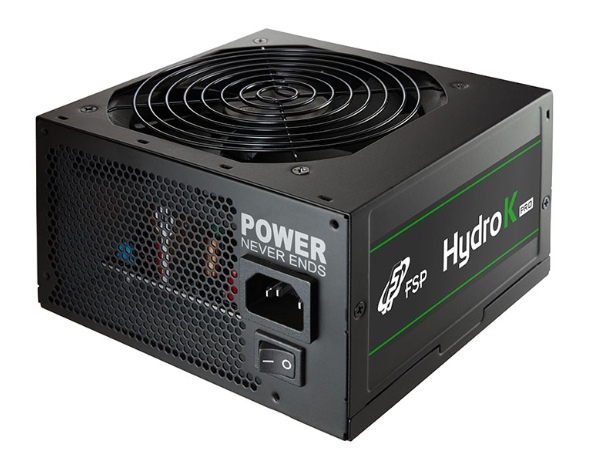

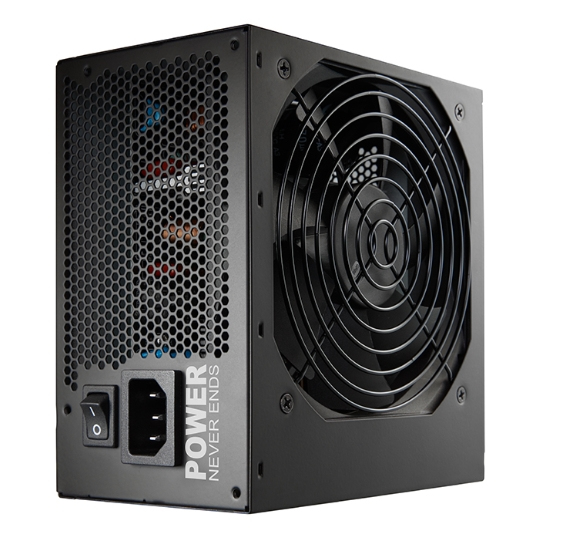

HP2-600 power supply unit
600 W 24-pin ATX ATX Black
Model HP2-600Part no. PPA6005605EAN 4713224525957
44 specifications
- ColourBlack
- Total power600 W
- Motherboard power connector24-pin ATX
- PurposePC/Server
- Width140 mm
Overview
- Colour
- Black
- Total power
- 600 W
- Motherboard power connector
- 24-pin ATX
- Purpose
- PC/Server
- Width
- 140 mm
- Brand
- FSP
- Category
- Power Supply Unit
- Model
- HP2-600
- Part number
- PPA6005605
- EAN / UPC
- 4713224525957
- Also known as
- FSP HP2-600 power supply unit 600 W 24-pin ATX ATX Black
Specifications
44 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 600 W |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 4.5 A |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 600 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 50 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 88% |
| Power protection features | Over current, Over power, Over voltage, Short circuit |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 24-pin ATX |
| Motherboard power cable length | 50 cm |
| Number of SATA power connectors | 5 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| PCI Express power connectors (6+2 pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 85 cm |
| Floppy disk drive connector | Yes |
| Floppy drive power connector | 1 |

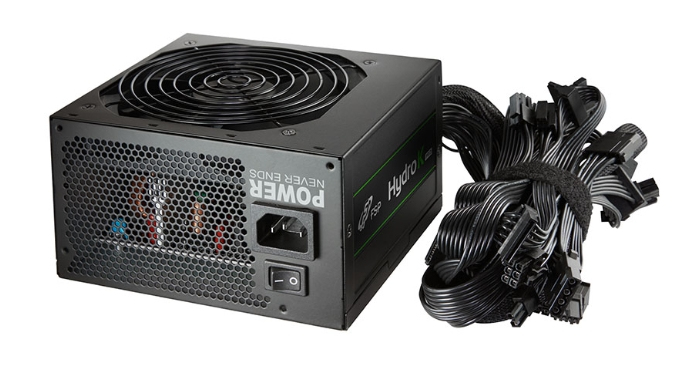

| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC/Server |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Bronze |
| ATX version | 3.0 |
| Bearing technology | HYB |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |

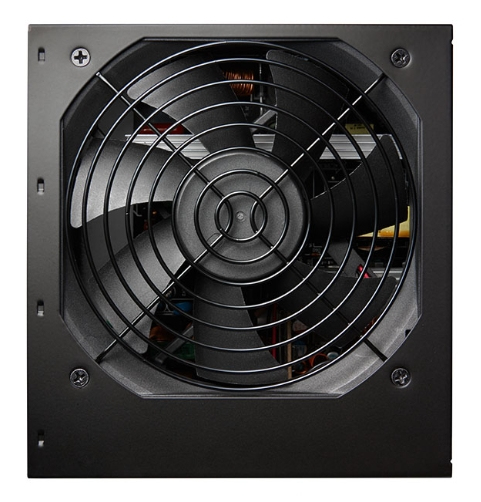

| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |

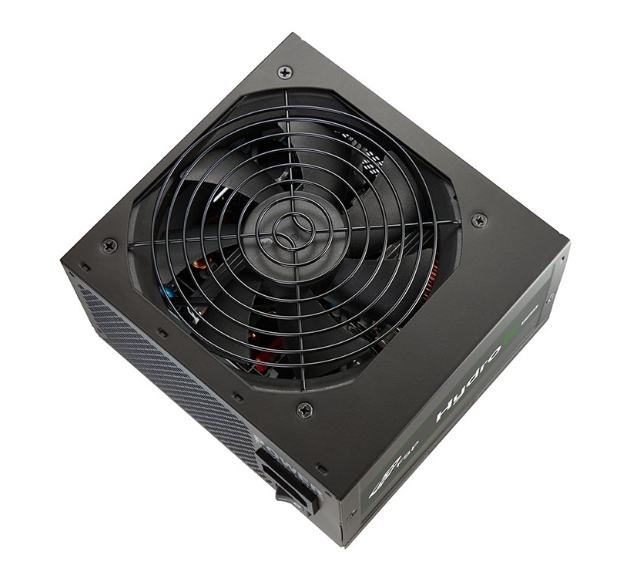

| Fan location | Top |
| On/off switch | Yes |
Packaging content
| Specification | Value |
|---|---|

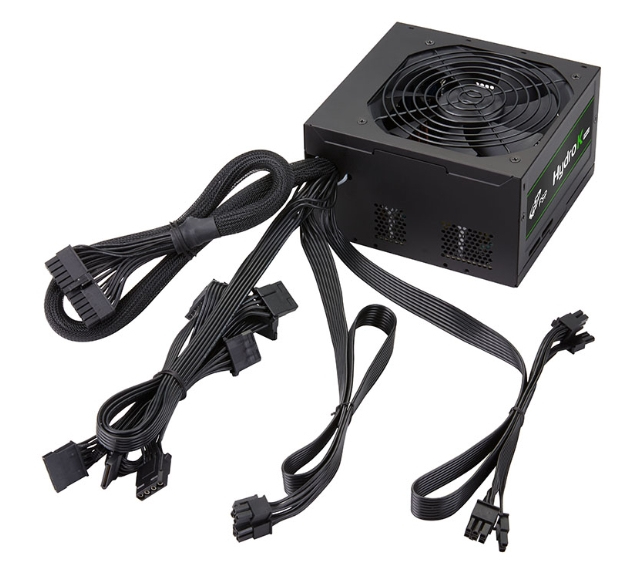

| Cables included | CPU, PCIe, Peripheral (Molex), SATA |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 140 mm |
| Depth | 150 mm |
| Height | 86 mm |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
