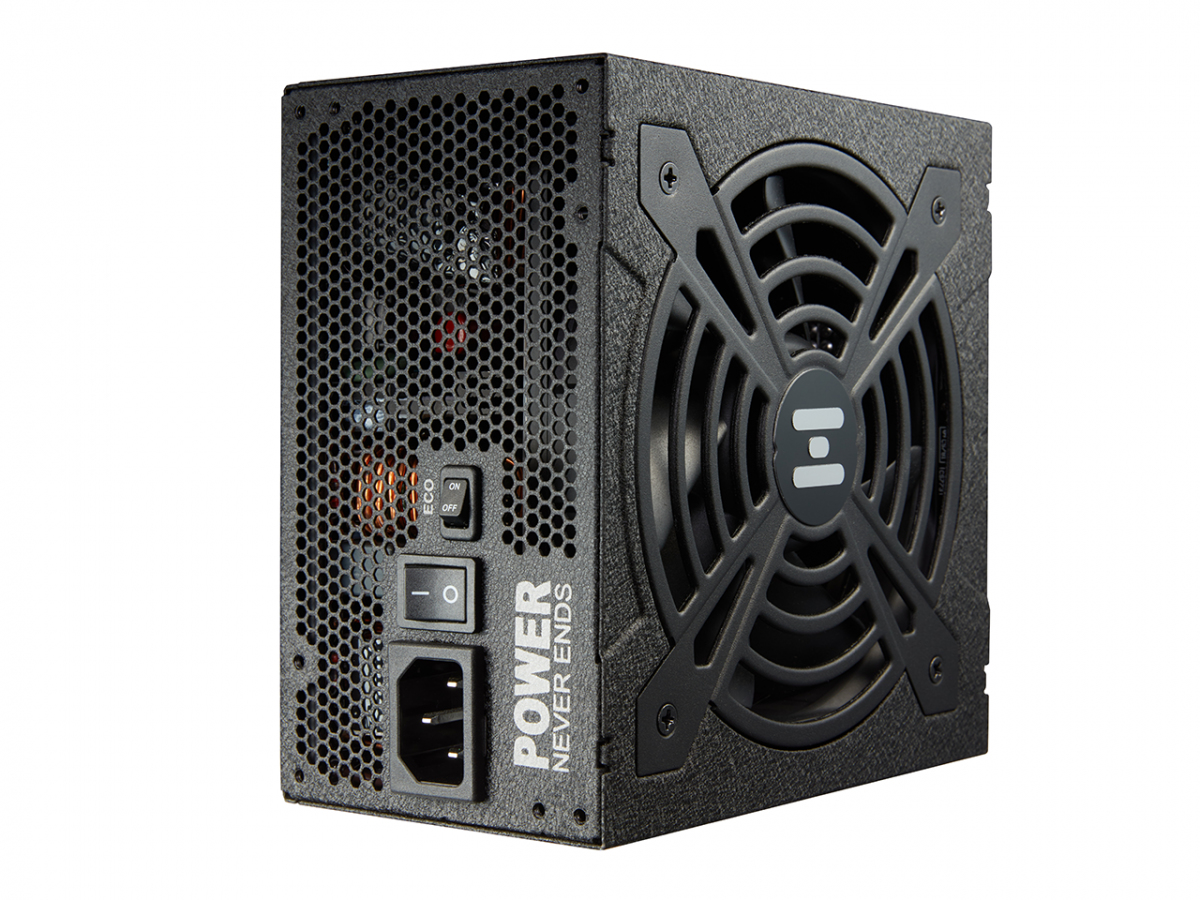

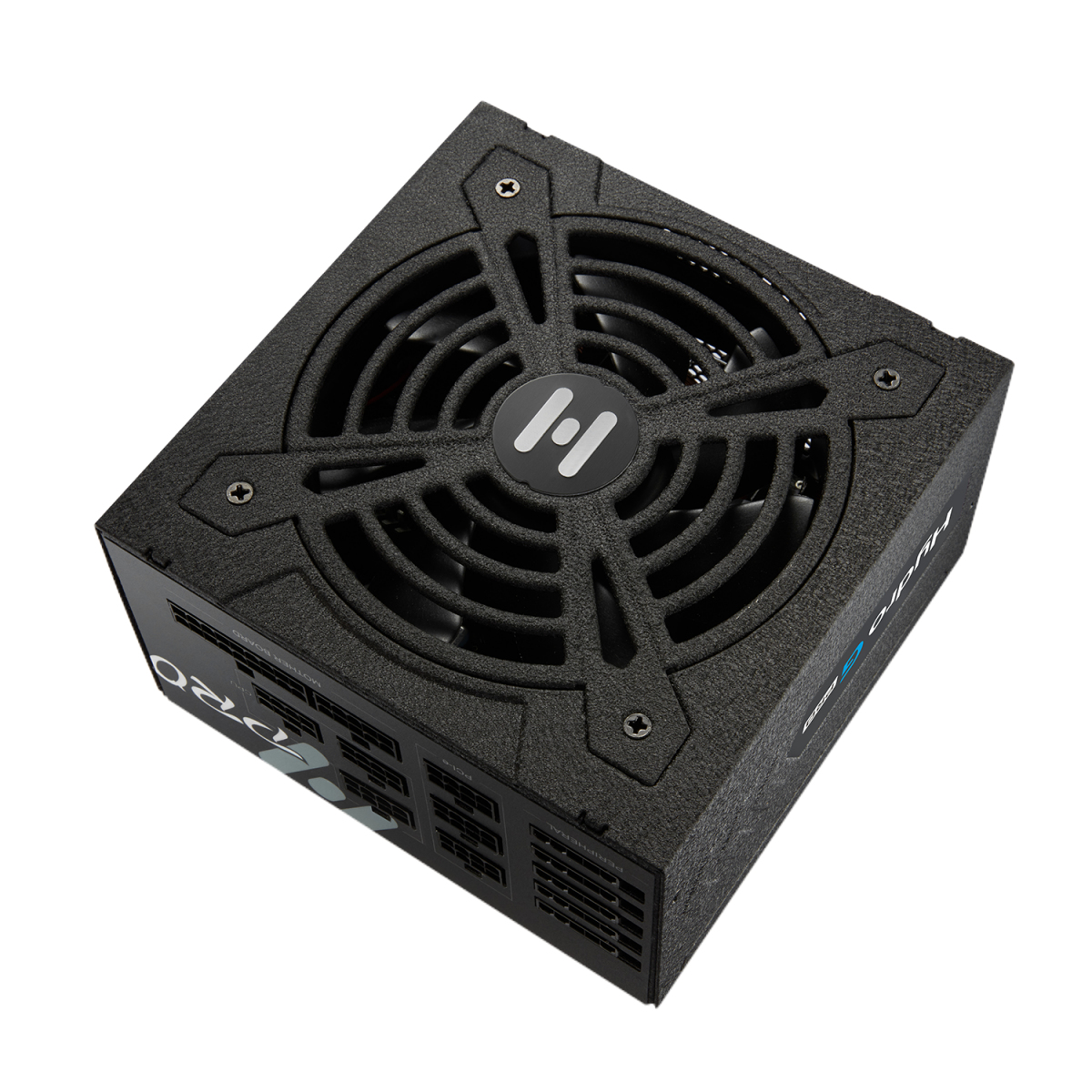

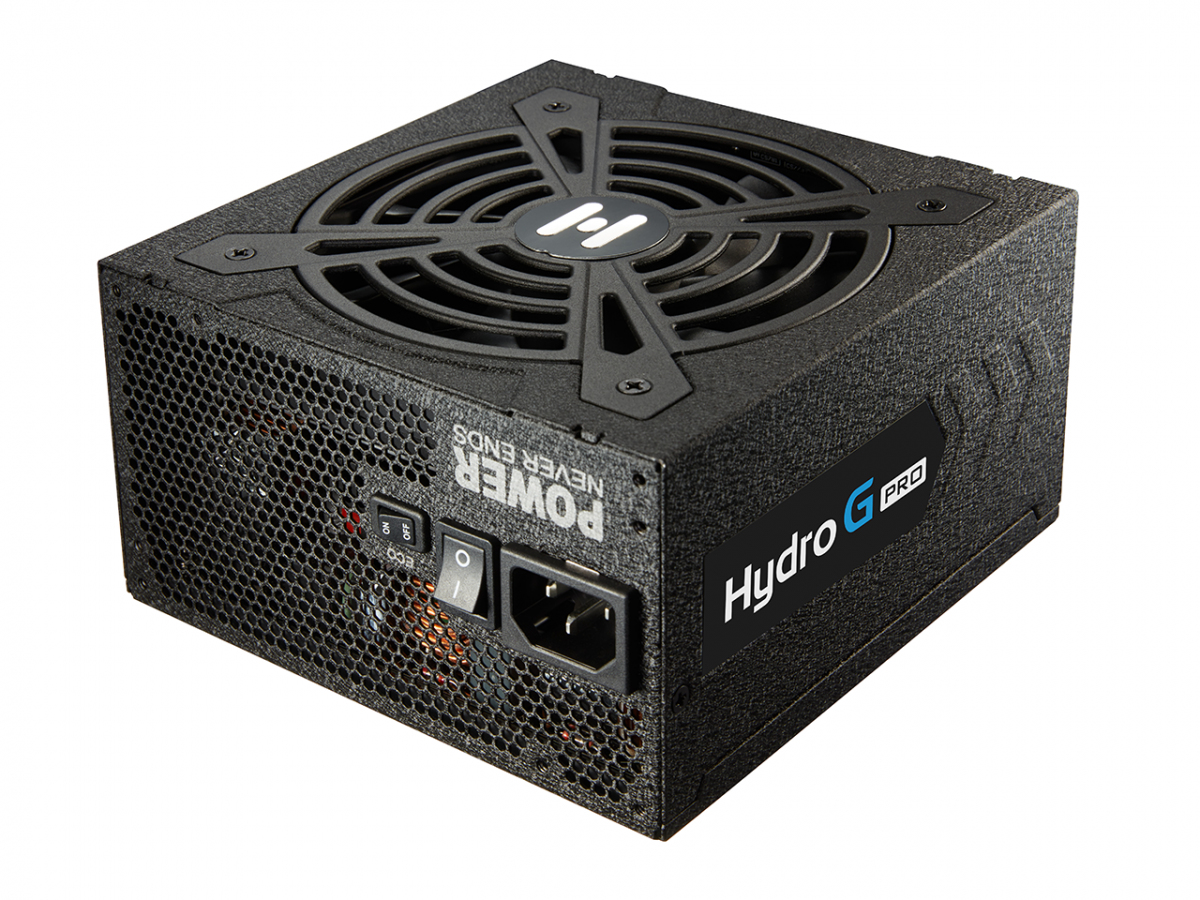

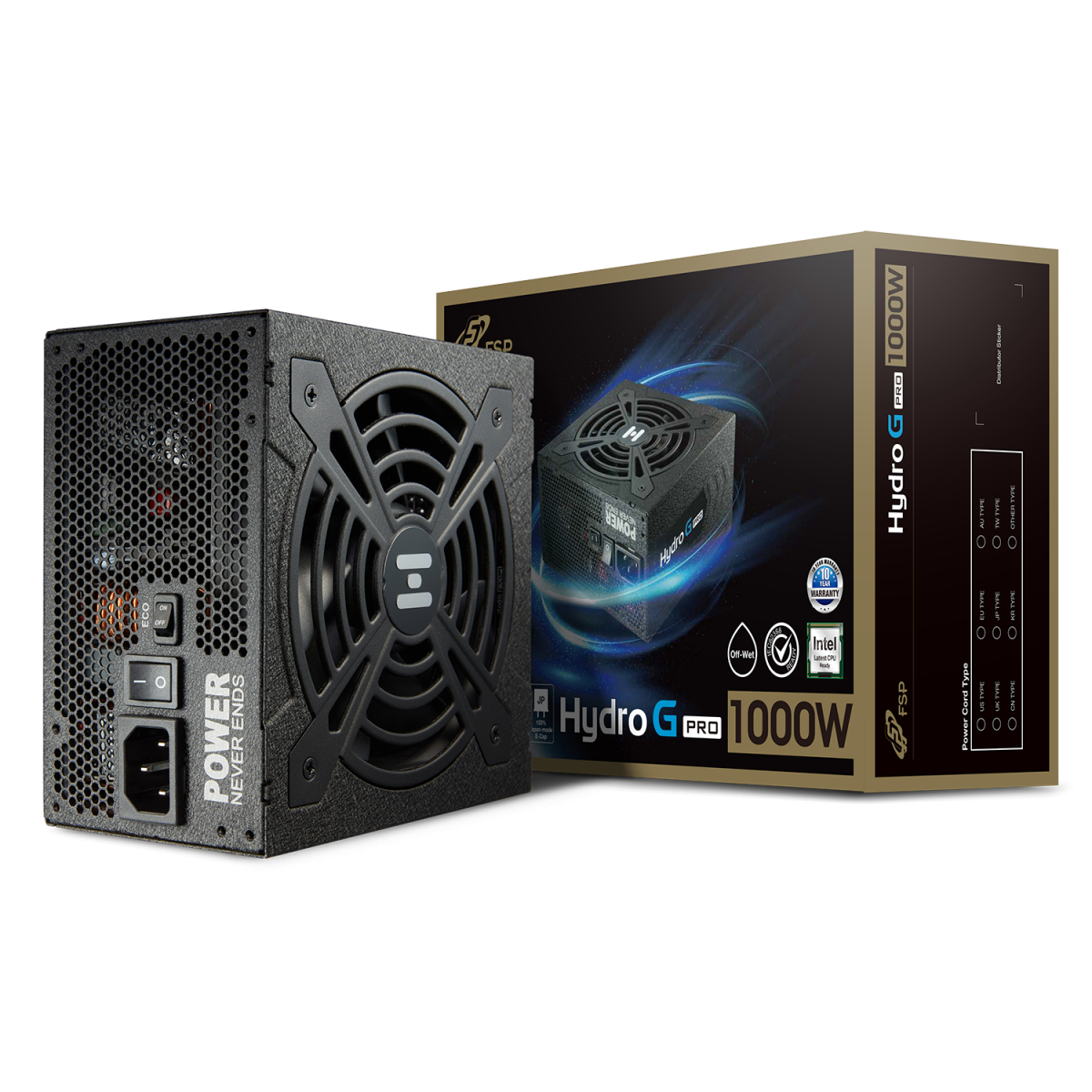

HG2-1000 power supply unit
1000 W 20+4 pin ATX ATX Black
Model HG2-1000EAN 4713224521676
22 specifications
- ColourBlack
- Total power1000 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width150 mm
Overview
- Colour
- Black
- Total power
- 1000 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 150 mm
- Brand
- FSP
- Category
- Power Supply Unit
- Model
- HG2-1000
- Part numbers
- HG2-1000, PPA10A2400
- EAN / UPC
- 4713224521676
- Also known as
- FSP HG2-1000 power supply unit 1000 W 20+4 pin ATX ATX Black
Specifications
22 specifications in 5 groups
Power
| Specification | Value |
|---|---|
| Total power | 1000 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power Factor Correction (PFC) type | Active |
| Efficiency | 90% |
| Power protection features | Over power, Over voltage, Over current, Short circuit |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| CPU power connector (4+4 pin) | Yes |
| Floppy disk drive connector | Yes |

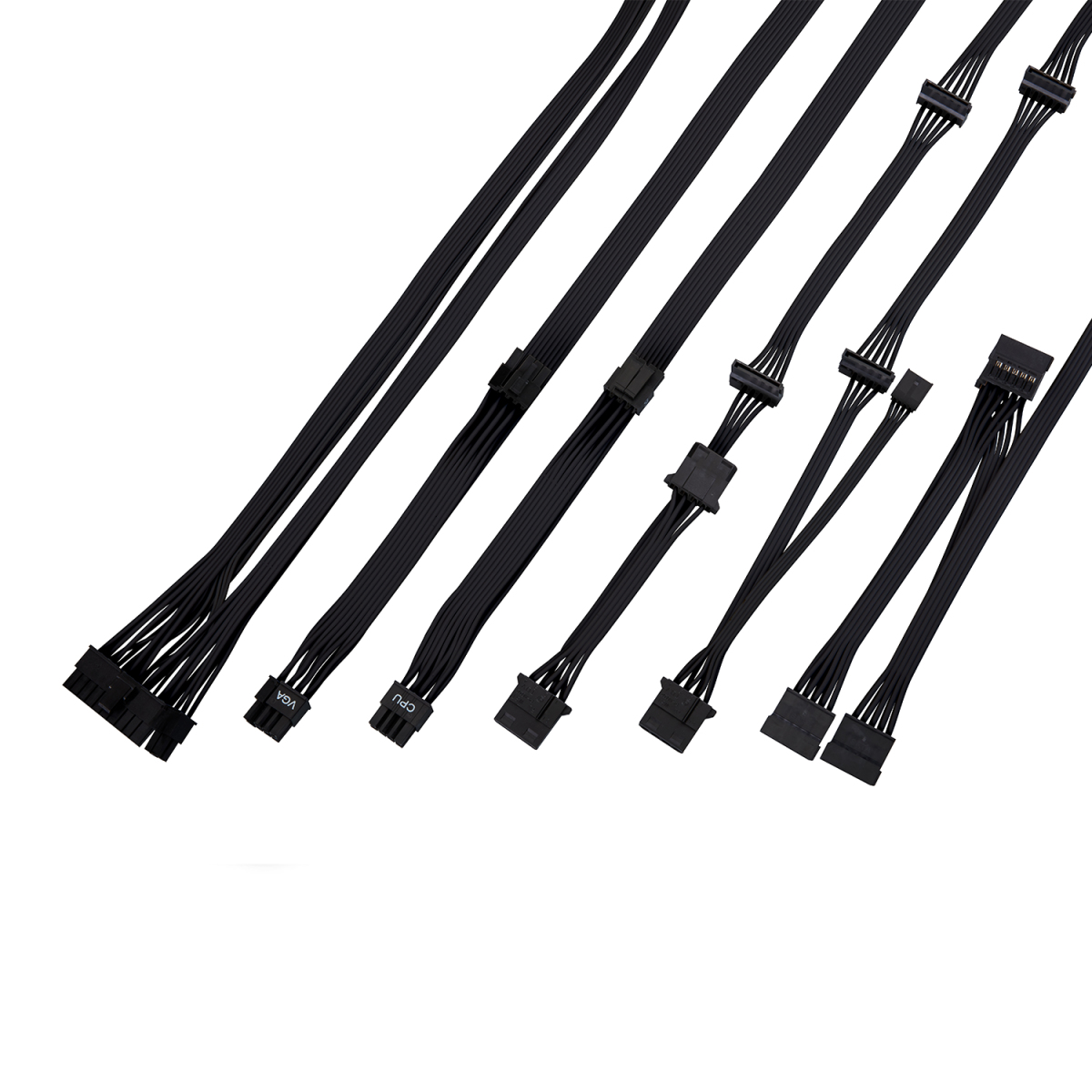

| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 13.5 cm |
| Number of fans | 1 fan(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 150 mm |
| Height | 86 mm |
