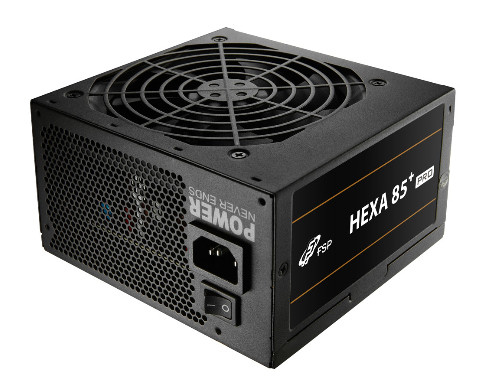

HEXA 85+ PRO 450W
Model HEXA 85+ PRO 450WPart no. PPA450AD01EAN 4713224522703
47 specifications
- Weight1.25 kg
- ColourBlack
- Total power450 W
- Motherboard power connector24-pin ATX
- PurposePC/Server
- Width140 mm
Overview
- Weight
- 1.25 kg
- Colour
- Black
- Total power
- 450 W
- Motherboard power connector
- 24-pin ATX
- Purpose
- PC/Server
- Width
- 140 mm
- Brand
- FSP
- Category
- Power Supply Unit
- Model
- HEXA 85+ PRO 450W
- Part number
- PPA450AD01
- EAN / UPC
- 4713224522703
- Also known as
- FSP HEXA 85+ PRO 450W Power supply unit ATX ATX2.5 Black
Specifications
47 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 450 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 6-2.5 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 85 W |
| Combined power (+12V) | 450 W |
| Combined power (+5V) | 85 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 16 A |
| Max output current (+12V) | 37.5 A |
| Max output current (+5V) | 16 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 85% |
| Hold time | 17 ms |
| Power protection features | Over current, Over power, Over voltage, Short circuit |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 5 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| PCI Express power connectors (6+2 pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| ATX Power connector (24-pin) | Yes |
| Floppy disk drive connector | Yes |
| Floppy drive power connector | 1 |
| PCI Express connector | Yes |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC/Server |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Bronze |
| ATX version | 2.5 |
| EPS version | 2.92 |
| Bearing technology | Sleeve |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| On/off switch | Yes |
Packaging content
| Specification | Value |
|---|---|
| Cables included | CPU, PCIe, Peripheral (Molex), SATA |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 140 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 1.25 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Warranty period | 5 year(s) |
