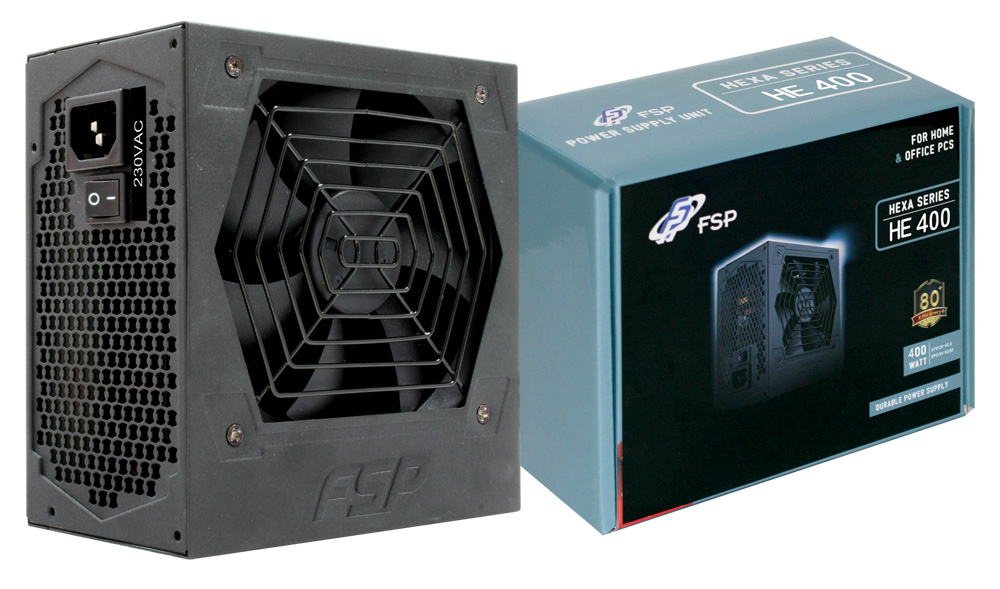

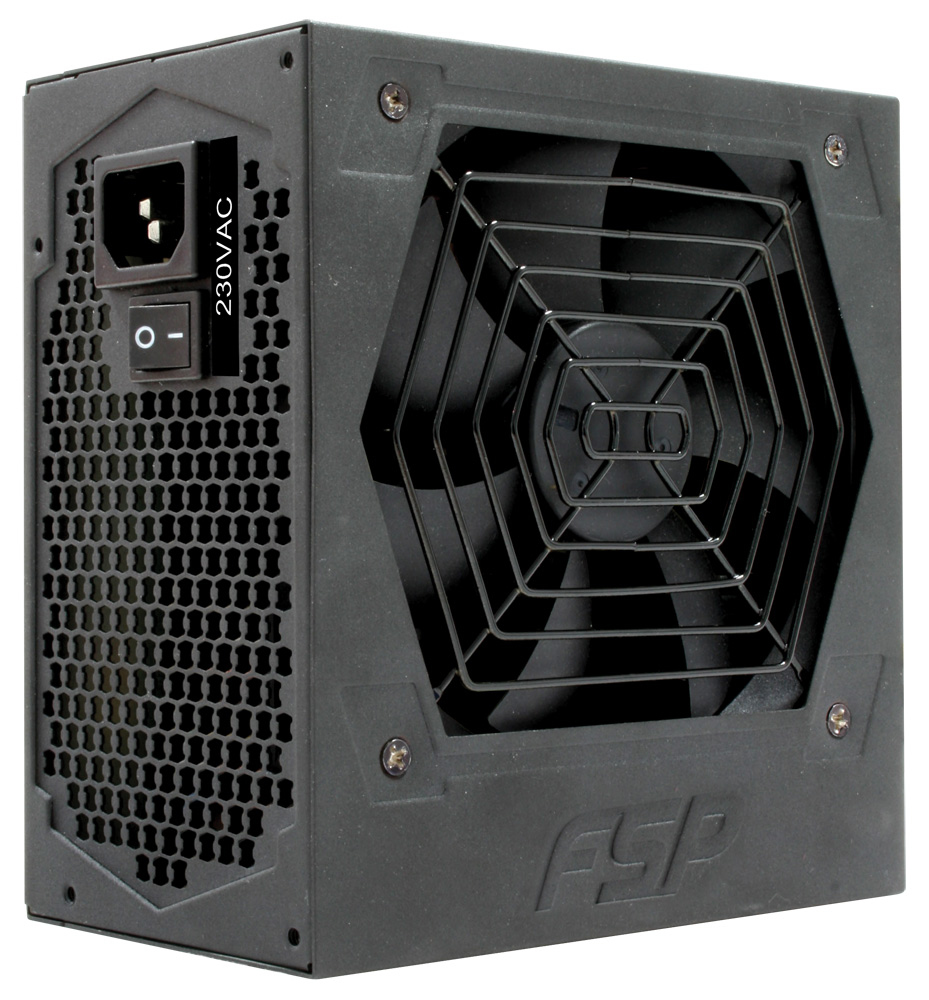

FSP Hexa 400
Model Hexa 400Part no. PPA4003201EAN 4711140481685
41 specifications
- Noise25 dB
- Weight1.55 kg
- ColourBlack
- Total power400 W
- Motherboard power connector20+4 pin ATX
- PurposePC
Overview
- Noise
- 25 dB
- Weight
- 1.55 kg
- Colour
- Black
- Total power
- 400 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Brand
- FSP
- Category
- Power Supply Unit
- Model
- Hexa 400
- Part number
- PPA4003201
- EAN / UPC
- 4711140481685
- Also known as
- FSP Hexa 400 power supply unit 400 W 20+4 pin ATX ATX Black
Specifications
41 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 400 W |
| AC input voltage | 200 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Maximum input current (@110V) | +12V1,+12V2,+3.3V,+5V,+5Vsb,-12V |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 16.1 W |
| Combined power (+5Vsb) | 16.1 W |
| Max output current (+3.3V) | 24 A |
| Max output current (+12V1) | 17 A |
| Max output current (+12V2) | 17 A |
| Max output current (+5V) | 15 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 80% |
| Power protection features | Over current, Over voltage, Short circuit |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 3 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| PCI Express power connectors (6-pin) | 1 |
| CPU P4 connector (4-pin) | 1 |
| ATX power connector (20+4 pin) | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 2.3 |
| Noise level | 25 dB |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| On/off switch | Yes |
Safety regulation & standards
| Specification | Value |
|---|---|
| Safety | CE, CB, GOST |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 140 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 1.55 kg |
