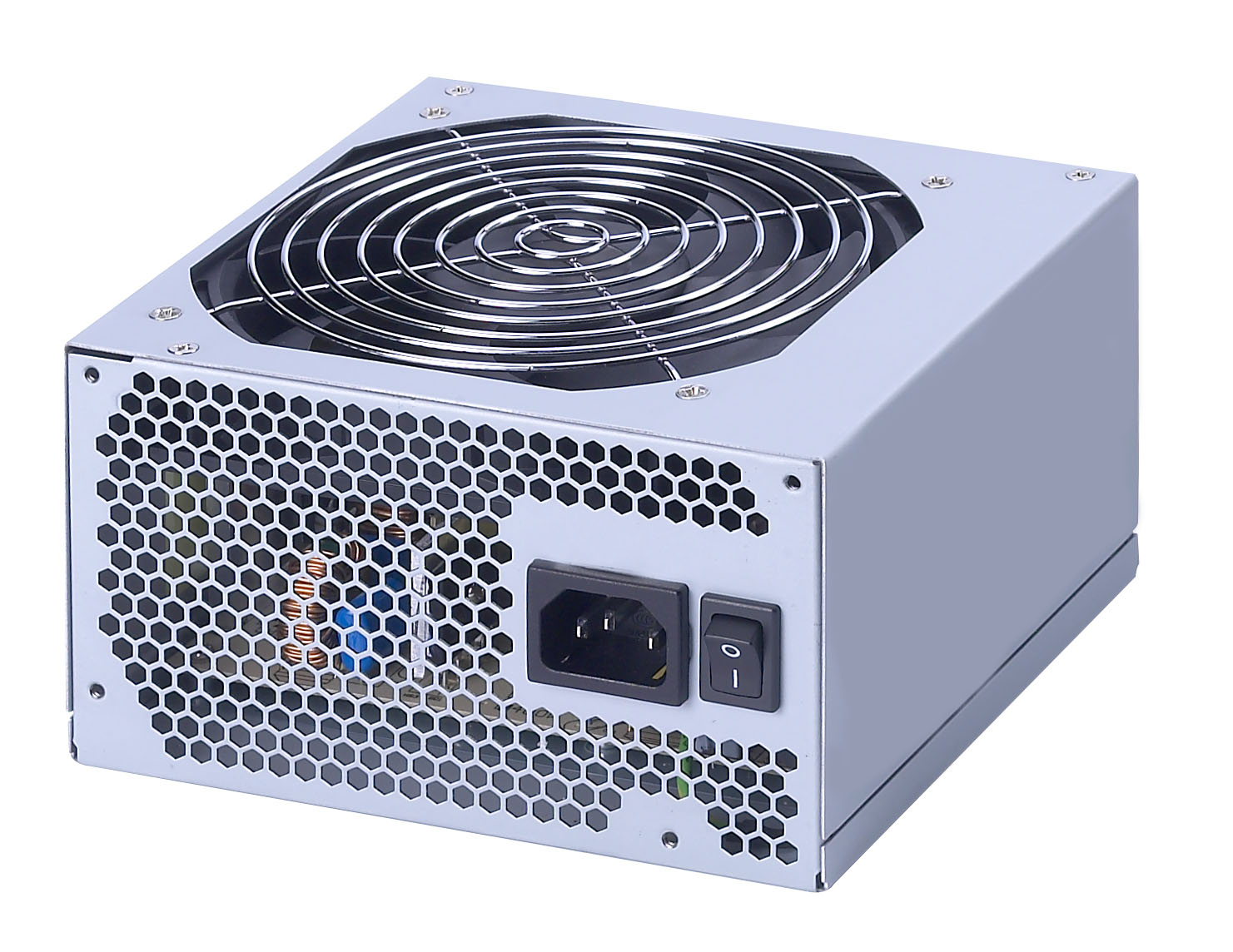

FSP GHN 85+
Model GHN 85+Part no. FSP350-60GHN(85)EAN 2374439521954
42 specifications
- Noise25 dB
- ColourStainless steel
- Total power350 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Operating temperature (T-T)0 - 40 °C
Overview
- Noise
- 25 dB
- Colour
- Stainless steel
- Total power
- 350 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- FSP
- Category
- Power Supply Unit
- Model
- GHN 85+
- Part numbers
- FSP350-60GHN(85), FSP400-60GHN 85+, FSP650-80GHN(85)
- EAN / UPC
- 2374439521954
- Also known as
- FSP GHN 85+ power supply unit 350 W 20+4 pin ATX ATX Stainless steel
Specifications
42 specifications in 8 groups
Power
| Specification | Value |
|---|---|
| Total power | 350 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum input current (@110V) | +12V1,+12V2,+3.3V,+5V,+5Vsb,-12V |
| Power Factor Correction (PFC) type | Active |
| Max output current (+3.3V) | 21 A |
| Max output current (+12V) | 30 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 85% |
| Power protection features | Over current, Over voltage, Short circuit |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 5 |
| PCI Express power connectors (6-pin) | 1 |
| PCI Express power connectors (6+2 pin) | 1 |
| CPU power connector (4+4 pin) | Yes |
| Connector(s) | IEC C14 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Bronze |
| ATX version | 2.3 |
| EPS version | 2.91 |
| Noise level | 25 dB |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Stainless steel |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| LED indicators | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 65 °C |
Safety regulation & standards
| Specification | Value |
|---|---|
| Safety | CE, CB, FCc, TUV, N, SA, UL |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Taiwan |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 140 x 150 x 86 mm |
| Parallel processing technology support | Not supported |
| Power over Ethernet (PoE) | No |
| Power supply type | AC/DC |
| Redundant power supply (RPS) support | No |
| Power rocker switch | Yes |
What people say
Reviews & ratings
FSP GHN 85+
- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare FSP GHN 85+
All power supply unit comparisons- FSP GHN 85+ vsFSP EVEREST 80PLUS 1010WCompare specs

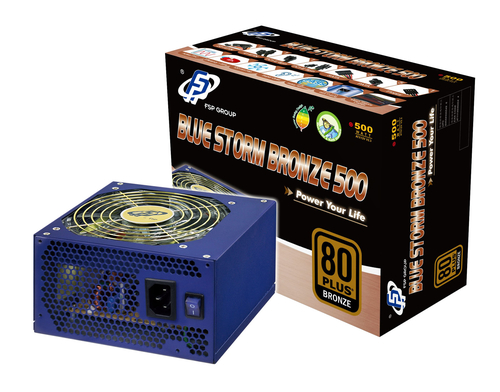

- FSP GHN 85+ vsFSP Blue Storm Bronze 500Compare specs
