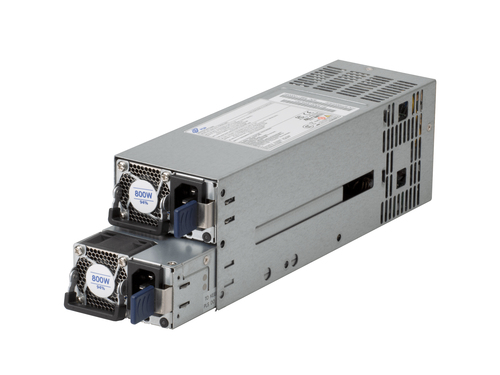

FSP800-50FS power supply unit
800 W Silver
Model FSP800-50FS
25 specifications
- ColourSilver
- Total power800 W
- PurposePC/Server
- Operating temperature (T-T)0 - 55 °C
- Width76 mm
Overview
- Colour
- Silver
- Total power
- 800 W
- Purpose
- PC/Server
- Operating temperature (T-T)
- 0 - 55 °C
- Width
- 76 mm
- Brand
- FSP
- Category
- Power Supply Unit
- Model
- FSP800-50FS
- Part number
- FSP800-50FS
- Also known as
- FSP FSP800-50FS power supply unit 800 W Silver
Specifications
25 specifications in 5 groups
Power
| Specification | Value |
|---|---|
| Total power | 800 W |
| AC input voltage | 90 - 264 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 5 A |
| Combined power (+3.3V) | 160 W |
| Combined power (+12V) | 780 W |
| Combined power (+5V) | 160 W |
| Combined power (-12V) | 3.6 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V) | 65 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.3 A |
Performance
| Specification | Value |
|---|---|
| Purpose | PC/Server |
| 80 PLUS certification | 80 PLUS Platinum |
| Mean time between failures (MTBF) | 500000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Silver |
| Cooling type | Active |
| Number of fans | 2 fan(s) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 76 mm |
| Depth | 250 mm |
| Height | 83.8 mm |
