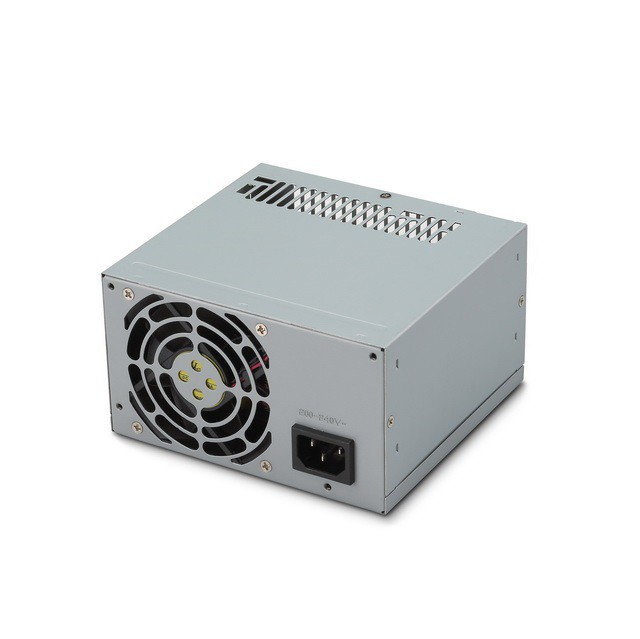

FSP700-80PSA power supply unit
700 W Grey
Model FSP700-80PSAEAN 4711140488905
29 specifications
- ColourGrey
- Total power700 W
- Cabling typeNon-Modular
- PurposePC
- Storage temperature (T-T)20 - 80 °C
- Width150 mm
Overview
- Colour
- Grey
- Total power
- 700 W
- Cabling type
- Non-Modular
- Purpose
- PC
- Storage temperature (T-T)
- 20 - 80 °C
- Width
- 150 mm
- Brand
- FSP
- Category
- Power Supply Unit
- Model
- FSP700-80PSA
- Part number
- FSP700-80PSA
- EAN / UPC
- 4711140488905
- Also known as
- FSP FSP700-80PSA power supply unit 700 W Grey
Specifications
29 specifications in 9 groups
Power
| Specification | Value |
|---|---|
| Total power | 700 W |
| AC input voltage | 90 - 264 V |
| AC input frequency | 47 - 63 Hz |
| Power Factor Correction (PFC) type | Active |
| Max output current (+3.3V) | 24 A |
| Max output current (+12V1) | 16 A |
| Max output current (+12V2) | 16 A |
| Max output current (+12V3) | 16 A |
| Max output current (+12V4) | 16 A |
| Max output current (+5V) | 30 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 4 A |
| Efficiency | 85% |
| Power protection features | Over voltage, Short circuit |
Ports & interfaces
| Specification | Value |
|---|---|
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Bronze |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
| Cooling type | Active |
| Fan diameter | 4 cm |
| Number of fans | 1 fan(s) |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | 20 - 80 °C |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FC |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
Other features
| Specification | Value |
|---|---|
| Operating altitude | 0 - 2000 m |
