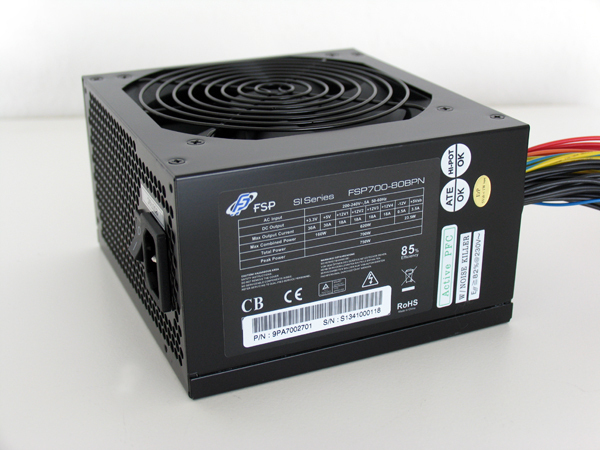

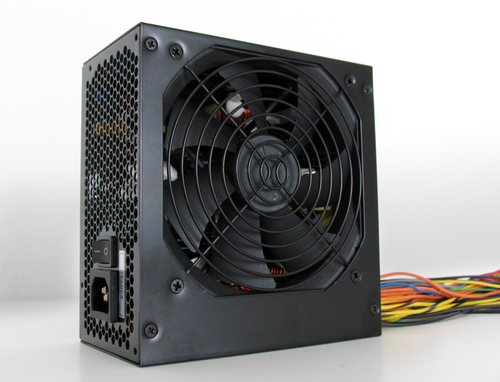

FSP700-80BPN power supply unit
700 W 24-pin ATX ATX Black
Model FSP700-80BPNPart no. 9PA7002701
54 specifications
- Noise33 dB
- Weight1.85 kg
- ColourBlack
- Total power700 W
- Motherboard power connector24-pin ATX
- PurposePC
Overview
- Noise
- 33 dB
- Weight
- 1.85 kg
- Colour
- Black
- Total power
- 700 W
- Motherboard power connector
- 24-pin ATX
- Purpose
- PC
- Brand
- FSP
- Category
- Power Supply Unit
- Model
- FSP700-80BPN
- Part number
- 9PA7002701
- Also known as
- FSP FSP700-80BPN power supply unit 700 W 24-pin ATX ATX Black
Specifications
54 specifications in 9 groups
Power
| Specification | Value |
|---|---|
| Total power | 700 W |
| Peak power | 750 W |
| AC input frequency | 50 Hz |
| Power factor | 0.98 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 99 W |
| Combined power (+12V) | 620 W |
| Combined power (+5V) | 150 W |
| Combined power (-12V) | 6 W |
| Combined power (+5Vsb) | 17.5 W |
| Max output current (+3.3V) | 30 A |
| Max output current (+12V) | 18 A |
| Max output current (+5V) | 30 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 3.5 A |
| Efficiency | 85% |
| Hold time | 16 ms |
| Power protection features | Over current, Over voltage, Overload, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| PCI Express power connectors (6+2 pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| ATX Power connector (24-pin) | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
| Monitor outlet | No |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 2.31 |
| EPS version | 2.92 |
| Noise level | 33 dB |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan speed | 1650 |
| Fan location | Top |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| Storage relative humidity (H-H) | 5 - 95% |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Weight | 1.85 kg |
Logistics data
| Specification | Value |
|---|---|
| Products per pallet | 480 pc(s) |
| Country of origin | China |
Other features
| Specification | Value |
|---|---|
| Voltage tolerance | 10% |
| Frequency tolerance | 5% |
| Redundant power supply (RPS) support | No |
| Rise time | 20 ms |
