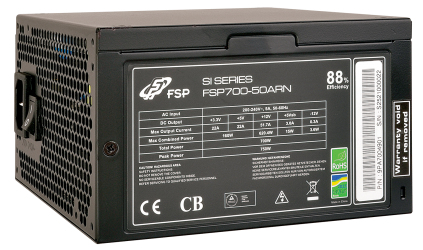

FSP700-50ARN 88+
FSP

FSP700-50ARN 88+

Model FSP700-50ARN 88+Part no. 9PA7004901EAN 4016138969405

37 specifications
  • Noise29.8 dB
  • ColourBlack
  • Total power700 W
  • Motherboard power connector24-pin ATX
  • PurposePC
  • Width150 mm
See all specifications

Overview

Noise
29.8 dB
Colour
Black
Total power
700 W
Motherboard power connector
24-pin ATX
Purpose
PC
Width
150 mm
Brand
FSP
Model
FSP700-50ARN 88+
Part number
9PA7004901
EAN / UPC
4016138969405, 4711140489667
Also known as
FSP FSP700-50ARN 88+ power supply unit 700 W 24-pin ATX ATX Black

Specifications

37 specifications in 7 groups

Power

Total power700 W
Peak power750 W
AC input voltage180 - 264 V
AC input frequency47 - 63 Hz
Input current5 A
Power factor0.9
Power Factor Correction (PFC) typeActive
Combined power (+3.3V)160 W
Combined power (+12V)620 W
Combined power (+5V)160 W
Combined power (-12V)23.5 W
Combined power (+5Vsb)23.5 W
Max output current (+3.3V)22 A
Max output current (+12V)51.7 A
Max output current (+5V)22 A
Max output current (-12V)0.3 A
Max output current (+5Vsb)3 A
Efficiency88%
Power protection featuresOver current, Over voltage, Short circuit

Ports & interfaces

Motherboard power connector24-pin ATX
Peripheral (Molex) power connectors (4-pin)2
CPU power connector (4+4 pin)Yes
Floppy drive power connector1
Cabling typeNon-Modular

Performance

PurposePC
Power supply unit (PSU) form factorATX
80 PLUS certification80 PLUS Silver
ATX version2.3
Noise level29.8 dB

Design

Product colourBlack
Number of fans1 fan(s)
On/off switchYes

Certificates

Compliance certificatesRoHS

Weight & dimensions

Width150 mm
Depth140 mm
Height86 mm

Technical details

Sustainability certificatesENERGY STAR
