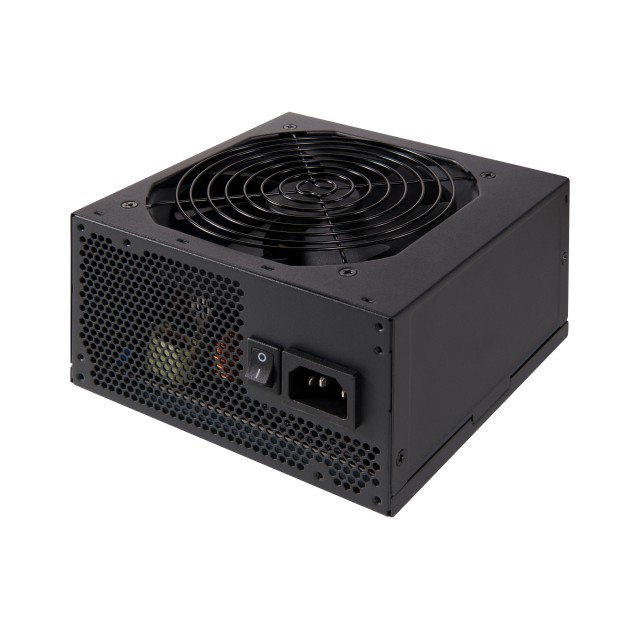

FSP650-50AEC power supply unit
650 W ATX
Model FSP650-50AEC
20 specifications
- Total power650 W
- PurposePC/Server
- Operating temperature (T-T)0 - 40 °C
- Width150 mm
Overview
- Total power
- 650 W
- Purpose
- PC/Server
- Operating temperature (T-T)
- 0 - 40 °C
- Width
- 150 mm
- Brand
- FSP
- Category
- Power Supply Unit
- Model
- FSP650-50AEC
- Part number
- FSP650-50AEC
- Also known as
- FSP FSP650-50AEC power supply unit 650 W ATX
Specifications
20 specifications in 4 groups
Power
| Specification | Value |
|---|---|
| Total power | 650 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 8 A |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 54.16 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.1 A |
| Max output current (+5Vsb) | 2.5 A |
Performance
| Specification | Value |
|---|---|
| Purpose | PC/Server |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| Mean time between failures (MTBF) | 100000 h |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
