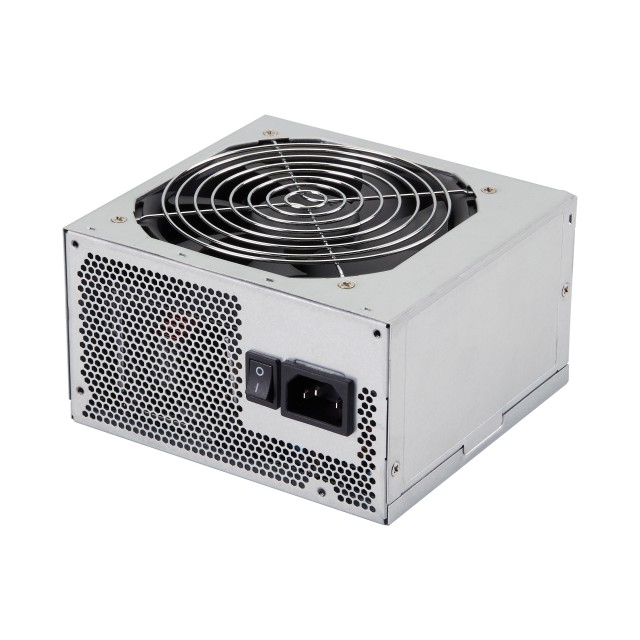

FSP650-50ABA power supply unit
650 W ATX
Model FSP650-50ABAPart no. 9PA6508601EAN 4713224523731
33 specifications
- Total power650 W
- Cabling typeNon-Modular
- PurposePC
- Cooling typeActive
- Operating temperature (T-T)0 - 40 °C
- Width150 mm
Overview
- Total power
- 650 W
- Cabling type
- Non-Modular
- Purpose
- PC
- Cooling type
- Active
- Operating temperature (T-T)
- 0 - 40 °C
- Width
- 150 mm
- Brand
- FSP
- Category
- Power Supply Unit
- Model
- FSP650-50ABA
- Part number
- 9PA6508601
- EAN / UPC
- 4713224523731
- Also known as
- FSP FSP650-50ABA power supply unit 650 W ATX
Specifications
33 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 650 W |
| AC input voltage | 90 - 264 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 4 - 8 A |
| Power factor | 0.99 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+5V) | 100 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 54.17 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 90% |
| Hold time | 16 ms |
| Power protection features | Over current, Over voltage, Overheating |
Ports & interfaces
| Specification | Value |
|---|---|
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 2.52 |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 90% |
Certificates
| Specification | Value |
|---|---|
| Certification | CB 62368, CB 60950, EMC, FCC, TUV, CUL |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
