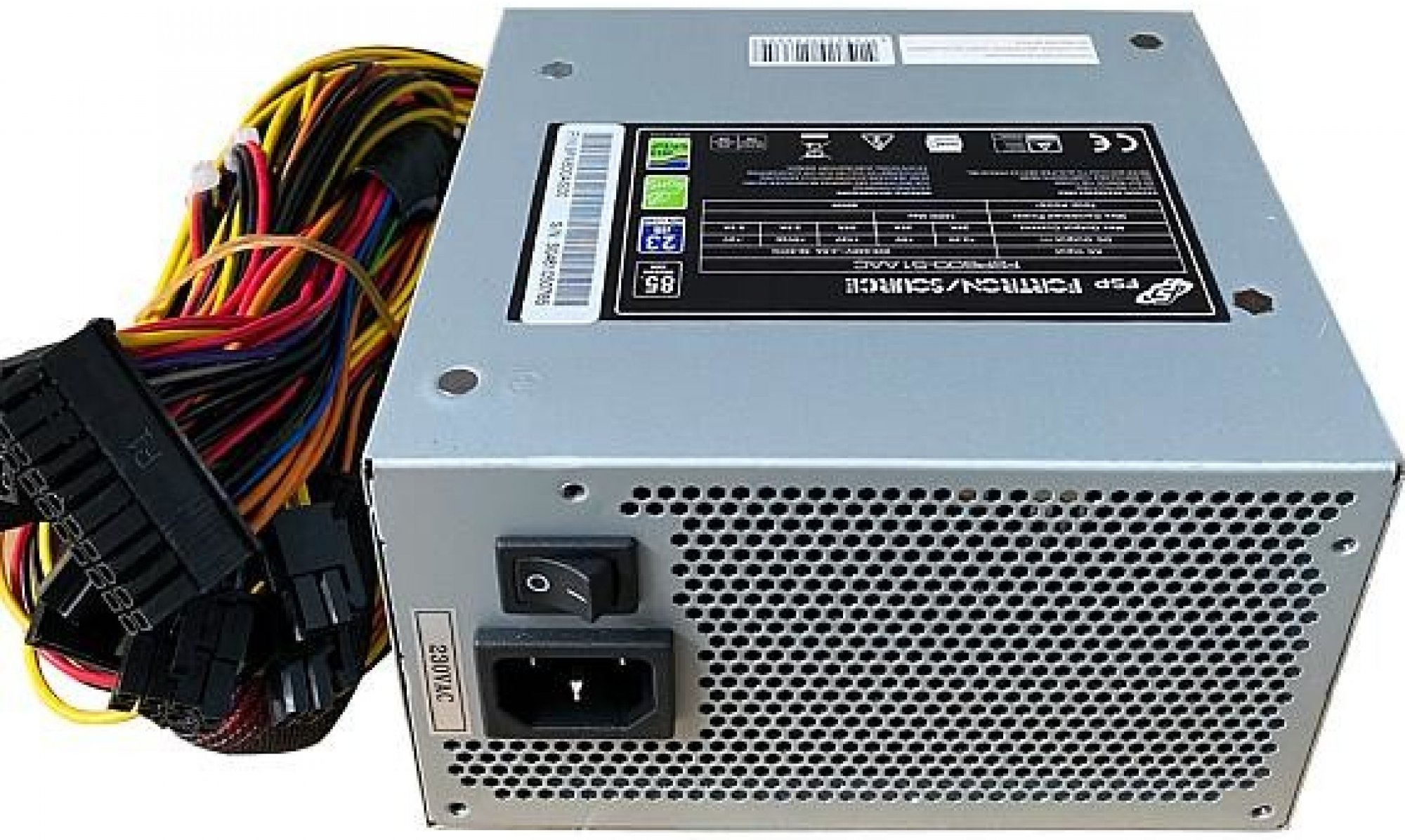

FSP600-51AAC power supply unit
600 W 20+4 pin ATX ATX
Model FSP600-51AACPart no. 9PA600AS00EAN 4713224523359
30 specifications
- Total power600 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Cooling typeActive
- Width150 mm
Overview
- Total power
- 600 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Cooling type
- Active
- Width
- 150 mm
- Brand
- FSP
- Category
- Power Supply Unit
- Model
- FSP600-51AAC
- Part number
- 9PA600AS00
- EAN / UPC
- 4713224523359
- Also known as
- FSP FSP600-51AAC power supply unit 600 W 20+4 pin ATX ATX
Specifications
30 specifications in 5 groups
Power
| Specification | Value |
|---|---|
| Total power | 600 W |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 4.5 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+5V) | 100 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 50 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 88% |
| Power protection features | Over current, Over voltage, Overheating |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| PCI Express power connectors (6+2 pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| Floppy disk drive connector | Yes |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | No |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
