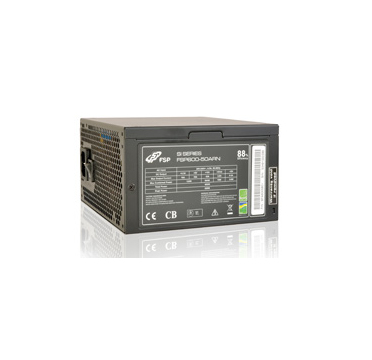

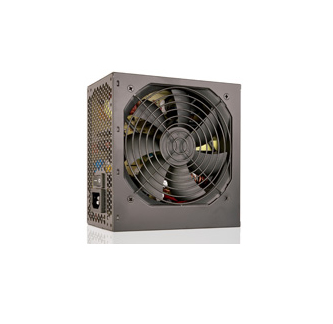

FSP600-50ARN power supply unit
600 W 24-pin ATX ATX Black
Model FSP600-50ARNPart no. 9PA6005801EAN 4711140489650
41 specifications
- ColourBlack
- Total power600 W
- Motherboard power connector24-pin ATX
- PurposePC
- Width150 mm
- Sustainability certificatesENERGY STAR
Overview
- Colour
- Black
- Total power
- 600 W
- Motherboard power connector
- 24-pin ATX
- Purpose
- PC
- Width
- 150 mm
- Sustainability certificates
- ENERGY STAR
- Brand
- FSP
- Category
- Power Supply Unit
- Model
- FSP600-50ARN
- Part numbers
- 9PA6005801, 9PA6005800
- EAN / UPC
- 4711140489650
- Also known as
- FSP FSP600-50ARN power supply unit 600 W 24-pin ATX ATX Black
Specifications
41 specifications in 8 groups
Power
| Specification | Value |
|---|---|
| Total power | 600 W |
| Peak power | 650 W |
| AC input voltage | 180 - 264 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 4 A |
| Maximum input current (@110V) | +12V,+3.3V,+5V,-12V,-5Vsb |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 135 W |
| Combined power (+5V) | 135 W |
| Combined power (-12V) | 0.3 W |
| Combined power (+5Vsb) | 3 W |
| Max output current (+3.3V) | 18 A |
| Max output current (+12V) | 42 A |
| Max output current (+5V) | 18 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 88% |
| Power protection features | Over current, Over voltage, Short circuit |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| PCI Express power connectors (6-pin) | 2 |
| PCI Express power connectors (6+2 pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| ATX Power connector (24-pin) | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 2.3 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Number of fans | 1 fan(s) |
| Fan location | Side |
| On/off switch | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
Technical details
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 150 x 140 x 86 mm |
