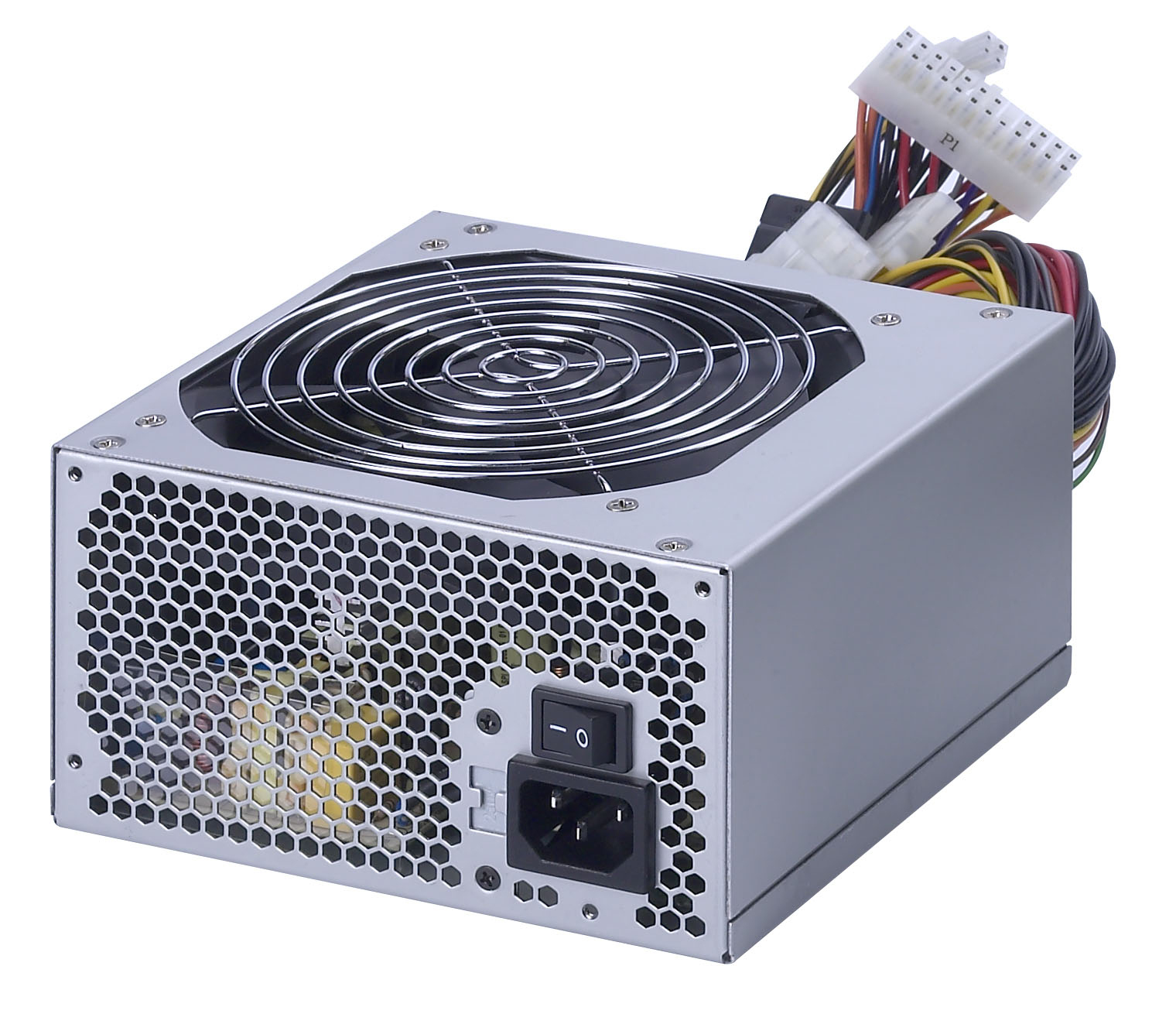

FSP500-60GHN Bronze 85+
Model FSP500-60GHN Bronze 85+Part no. 9PA5003303EAN 4711140488653
21 specifications
- Weight17.5 kg
- ColourGrey
- Total power500 W
- Number of SATA power connectors4
- Power supply unit (PSU) form factorATX
- Operating temperature (T-T)0 - 50 °C
Overview
- Weight
- 17.5 kg
- Colour
- Grey
- Total power
- 500 W
- Number of SATA power connectors
- 4
- Power supply unit (PSU) form factor
- ATX
- Operating temperature (T-T)
- 0 - 50 °C
- Brand
- FSP
- Category
- Power Supply Unit
- Model
- FSP500-60GHN Bronze 85+
- Part number
- 9PA5003303
- EAN / UPC
- 4711140488653, 5704327876878
- Also known as
- FSP FSP500-60GHN Bronze 85+ power supply unit 500 W ATX Grey
Specifications
21 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 500 W |
| AC input voltage | 100 - 240 V |
| Efficiency | 80% |
| Power protection features | Over current, Over voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Number of SATA power connectors | 4 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| PCI Express power connectors (6-pin) | 1 |
| CPU power connector (4+4 pin) | Yes |
| ATX power connector (20+4 pin) | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Power supply unit (PSU) form factor | ATX |
| Compatible products | PC |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
| Fan diameter | 12 cm |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 17.5 kg |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 150 x 140 x 86 mm |
