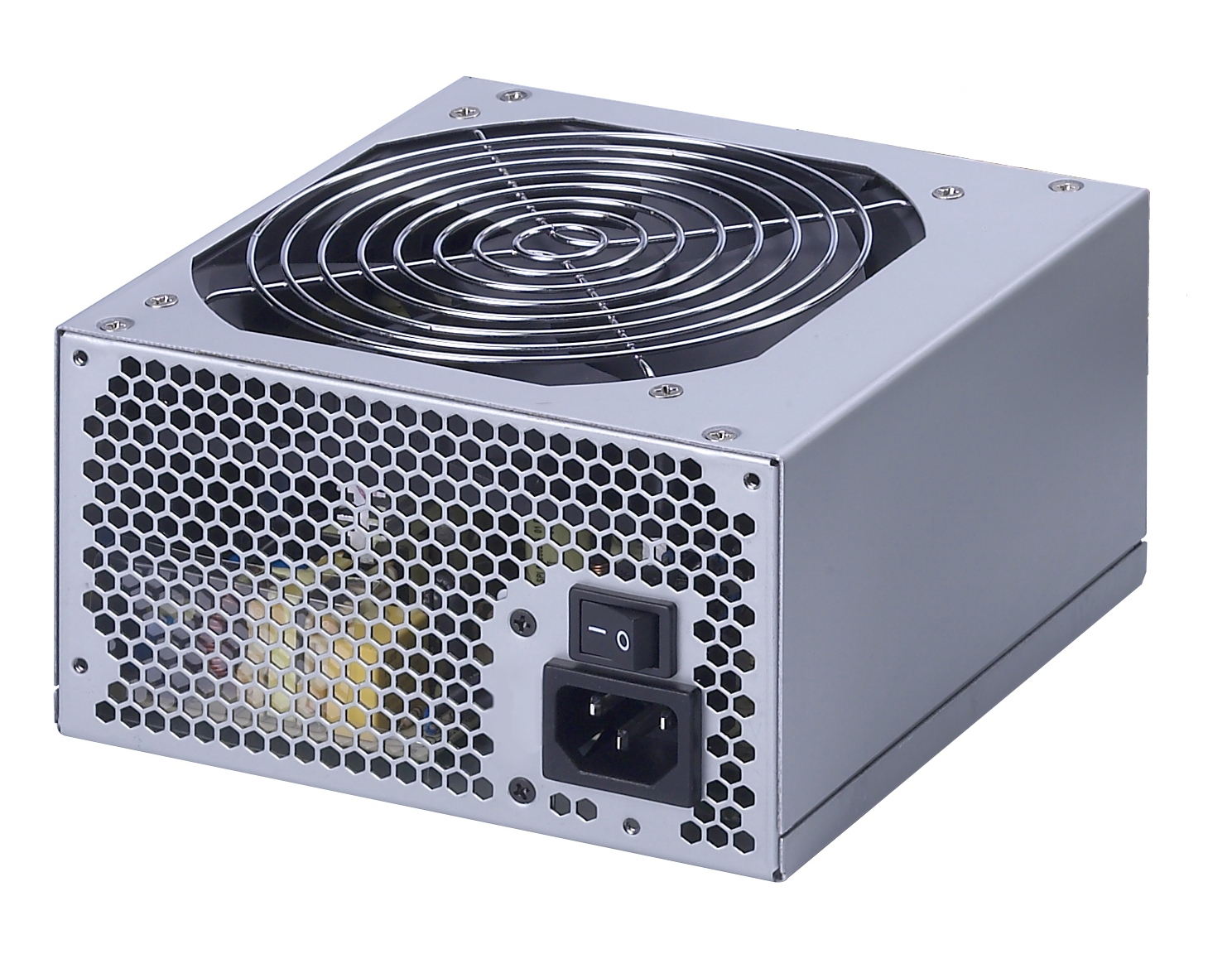

FSP500-60APN 85+
Model FSP500-60APN 85+
18 specifications
- Noise25 dB
- ColourGrey
- Total power500 W
- Number of SATA power connectors4
Overview
- Noise
- 25 dB
- Colour
- Grey
- Total power
- 500 W
- Number of SATA power connectors
- 4
- Brand
- FSP
- Category
- Power Supply Unit
- Model
- FSP500-60APN 85+
- Part number
- FSP500-60APN 85+
- Also known as
- FSP FSP500-60APN 85+ power supply unit 500 W Grey
Specifications
18 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 500 W |
| AC input voltage | 230 V |
| AC input frequency | 50 - 60 Hz |
| Efficiency | 85% |
| Power protection features | Over current, Over power, Over voltage, Overload, Short circuit |
Ports & interfaces
| Specification | Value |
|---|---|
| Number of SATA power connectors | 4 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| PCI Express power connectors (6-pin) | 1 |
| ATX power connector (20+4 pin) | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Noise level | 25 dB |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
| Fan diameter | 12 cm |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 150 x 140 x 86 mm |
| Omnigrid (4-pin) power connectors | 1 |
