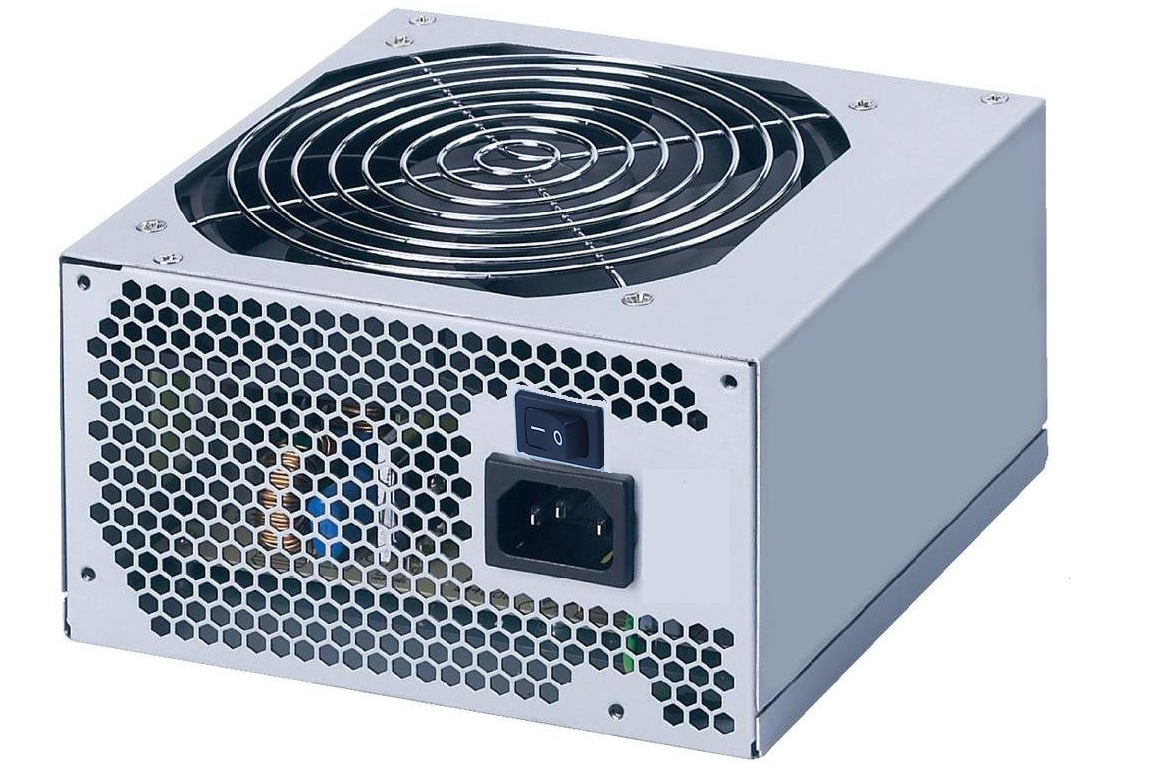

FSP500-60AHBC power supply unit
500 W ATX Metallic
Model FSP500-60AHBCEAN 4711140481531
25 specifications
- ColourMetallic
- Total power500 W
- PurposePC
- Operating temperature (T-T)0 - 40 °C
- SafetyCE,TUV
- Width150 mm
Overview
- Colour
- Metallic
- Total power
- 500 W
- Purpose
- PC
- Operating temperature (T-T)
- 0 - 40 °C
- Safety
- CE,TUV
- Width
- 150 mm
- Brand
- FSP
- Category
- Power Supply Unit
- Model
- FSP500-60AHBC
- Part number
- FSP500-60AHBC
- EAN / UPC
- 4711140481531
- Also known as
- FSP FSP500-60AHBC power supply unit 500 W ATX Metallic
Specifications
25 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 500 W |
| AC input voltage | 230 V |
| AC input frequency | 27 - 63 Hz |
| Input current | 3 A |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V1) | 25 A |
| Max output current (+12V2) | 25 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power Good signal delay range | 100 - 500 ms |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Metallic |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 0 - 95% |
Safety regulation & standards
| Specification | Value |
|---|---|
| Safety | CE,TUV |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
Other features
| Specification | Value |
|---|---|
| Rise time | 20 ms |
