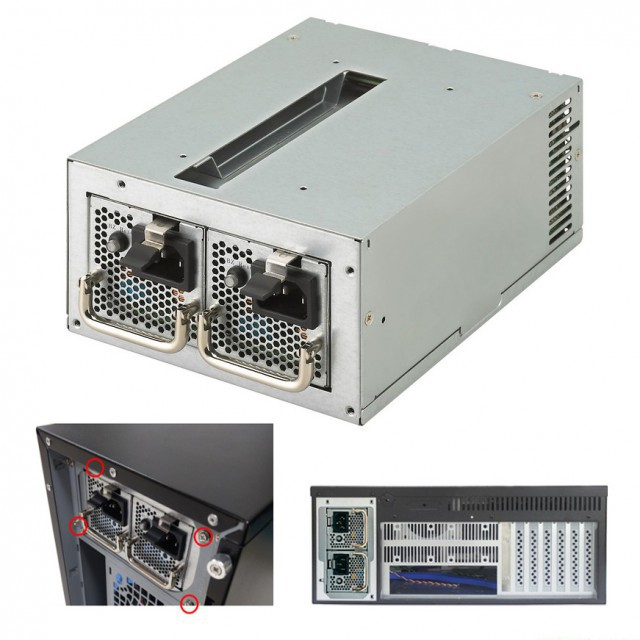

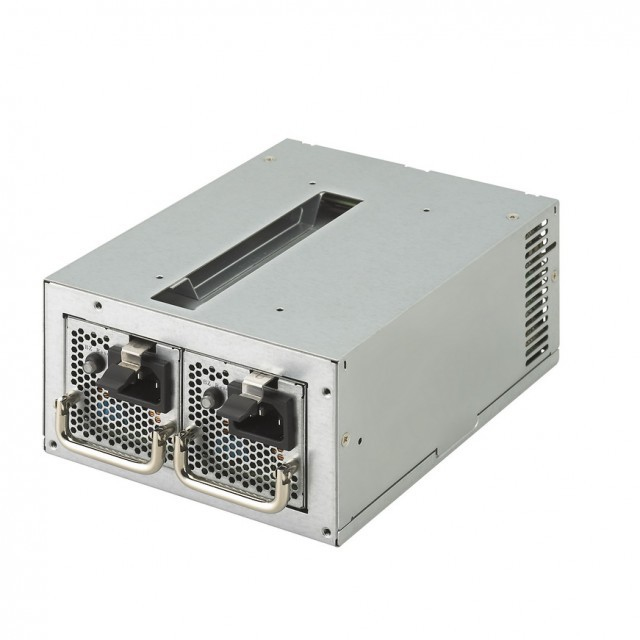

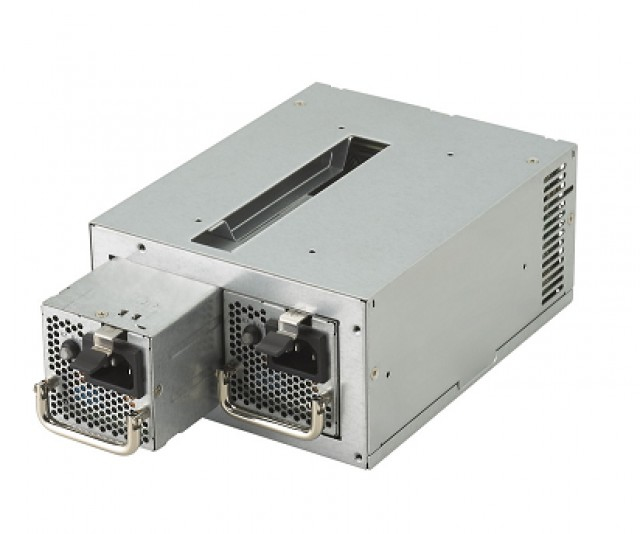

FSP500-50RAB power supply unit
500 W PS/2 Grey
Model FSP500-50RABEAN 4713224523472
15 specifications
- ColourGrey
- Total power500 W
- PurposeServer
Overview
- Colour
- Grey
- Total power
- 500 W
- Purpose
- Server
- Brand
- FSP
- Category
- Power Supply Unit
- Model
- FSP500-50RAB
- Part number
- FSP500-50RAB
- EAN / UPC
- 4713224523472
- Also known as
- FSP FSP500-50RAB power supply unit 500 W PS/2 Grey
Specifications
15 specifications in 3 groups
Power
| Specification | Value |
|---|---|
| Total power | 500 W |
| AC input voltage | 90 - 264 V |
| AC input frequency | 47 - 63 Hz |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 41.67 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over current, Over voltage, Overheating, Short circuit |
Performance
| Specification | Value |
|---|---|
| Purpose | Server |
| Power supply unit (PSU) form factor | PS/2 |
| 80 PLUS certification | 80 PLUS Gold |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
| Fan speed | 1500 - 1500 RPM |
