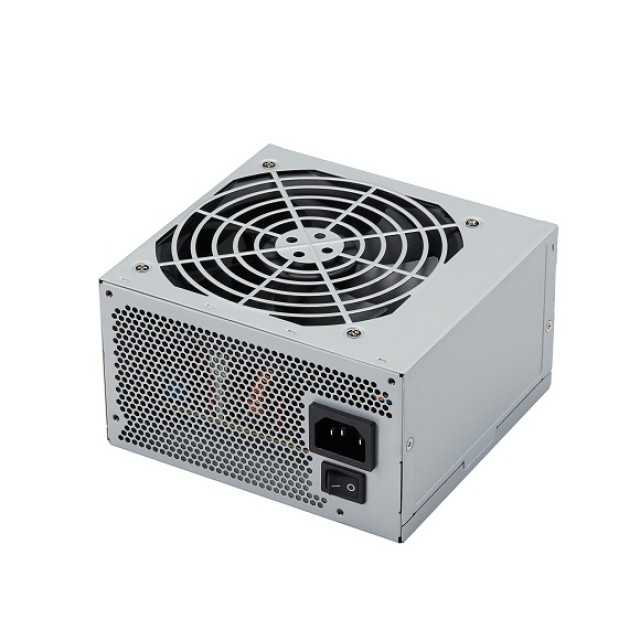

FSP500-50AAC power supply unit
550 W ATX Grey
Model FSP500-50AACPart no. POW SUPPEAN 4713224523342
29 specifications
- ColourGrey
- Total power550 W
- PurposePC
- Operating temperature (T-T)0 - 40 °C
- Width150 mm
Overview
- Colour
- Grey
- Total power
- 550 W
- Purpose
- PC
- Operating temperature (T-T)
- 0 - 40 °C
- Width
- 150 mm
- Brand
- FSP
- Category
- Power Supply Unit
- Model
- FSP500-50AAC
- Part numbers
- POW SUPP, 9PA500C708
- EAN / UPC
- 4713224523342
- Also known as
- FSP FSP500-50AAC power supply unit 550 W ATX Grey
Specifications
29 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 550 W |
| AC input voltage | 90 - 264 V |
| AC input frequency | 47 - 63 Hz |
| Power factor | 0.99 |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 41.66 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Hold time | 16 ms |
| Power protection features | Over current, Over voltage, Overheating |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Bronze |
| ATX version | 2.52 |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 90% |
Certificates
| Specification | Value |
|---|---|
| Certification | CB 62368, CB 60950, CE, TUV, CUL |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
